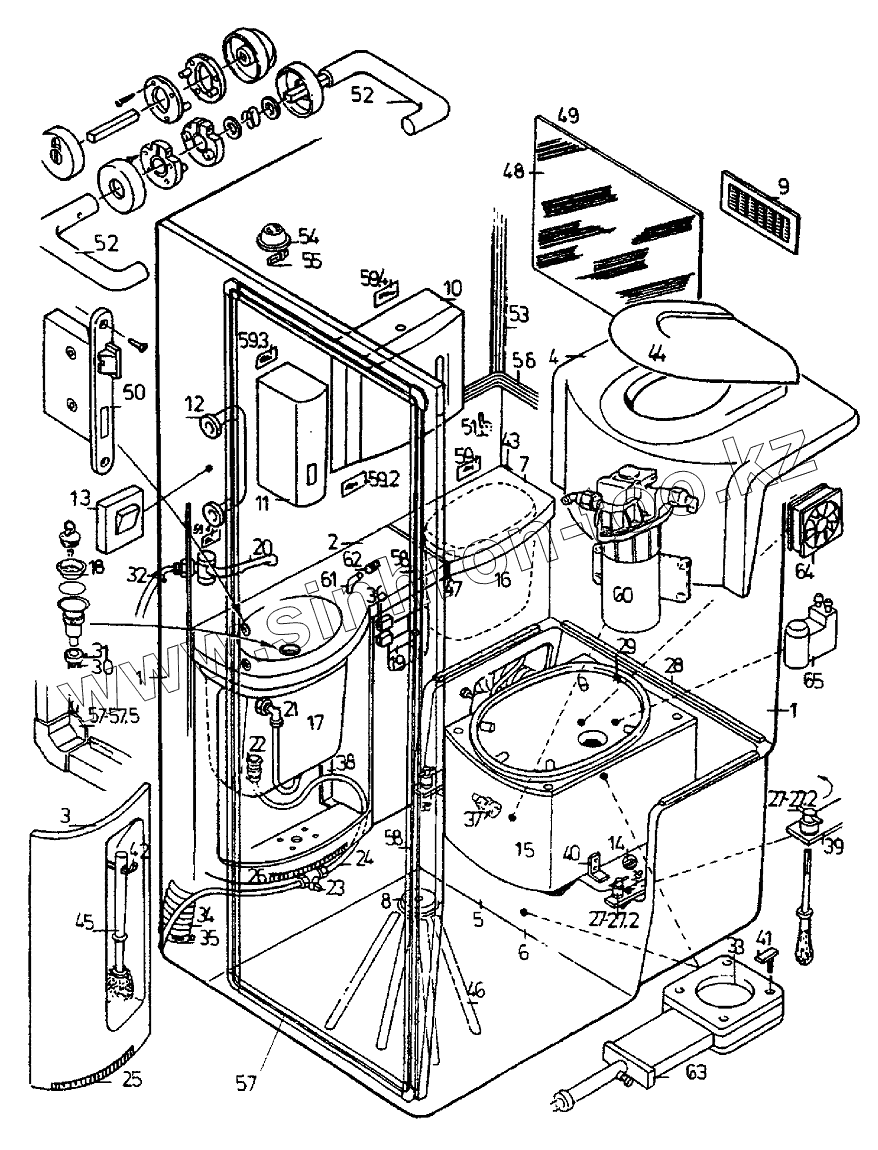

Каталог запасных частей к технике: Neoplan N 116 E2. TOILET

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
27
27.1
27.1
27.2
27.2
28
29
30
31
32
33
34
35
36
36
37
39
40
41
42
43
44
45
46
47
48
49
50
51
52
52
53
54
56
56
57
57
58
58
59
59.1
59.2
59.3
59.4
60
61
62
63
64
65
Позиция на иллюстрации Заводской номер детали Название детали
1 2002.088.90 LAVATORY
1.1 2002.088.91 LAVATORY UPPER PART
2 2002.089.20 WASHING TABLE
3 2002.089.00 WASHING TABLE COVERING
4 2002.089.21 COVERING
5 2002.089.22 CEESPIT TANK
6 2002.089.23 SOUND WALL
7 2002.089.01 REFUSE CONTAINER COVER
8 2002.089.02 DRAIN COVER
9 AIR GRATING AIR GRATING
10 2002.839.22 SОАР RЕSЕRVОIR
11 2002.839.22 SОАР RЕSЕRVОIR
12 2002.839.20 HANDLE WHITE
13 2002.930.01 SWITCH
14 2002.089.26 ABS- DISC
15 2002.089.70 TECHNICBOX
16 2002.089.05 REFUSE CONTAINER
17 2002.089.27 WATER DRAIN TANK W. COVER
18 2002.089.29 PLUG VALVE
19 2002.089.06 LAVATORY PAPERHOL-DER
20 2002.089.07 OUTLET COCK
21 2002.089.28 TANK PASSAGE
22 2002.089.30 SCREWING
23 2002.089.31 PVC- SHUT- OFF- VALVE
24 2002.089.32 WATER PRESSURE HOSE 10X3
25 LATCH FLANGE ADHESION LATCH FLANGE
26 ADHESION CHAMP ADHESION CHAMP
27 BEDNORZ-BOTTOM PARTS BEDNORZ- BOTTOM PARTS
27.1 BEDNORZ BOLT BEDNORZ BOLT
27.2 RING RING
28 TAPE GREY PVC- FOAM PLASTIC TAPE GREY
29 TAPE GREY PVC- FOAM PLASTIC TAPE GREY
30 2002.089.33 PLASTIC HOSE
31 HOSE CLAMP HOSE CLAMP
32 HOSE CLAMP HOSE CLAMP
33 2002.089.38 MOOSRUBBER- ROUND ROPE
34 2002.089.34 VENTILATION HOSE
35 HOSE CLAMP HOSE CLAMP
36 2002.089.08 PRESSURE TIP SWITCH
37 2002.089.09 SNAP TIP SWITCH
38 HOLDER HOLDER
39 FASTENING BRACKET FASTENING BRACKET
40 BOLT PLATE BOLT PLATE
41 BOLT PLATE BOLT PLATE
42 BOW BOW
43 PIN PIN
44 2002.089.10 LAVATORY SEAT
45 2002.089.11 LAVATORY BRUSH
46 LINING STRIP ANTI SLIPPING LINING STRIP
47 DOOR BUFFER DOOR RUBBER BUFFER
48 2002.035.01 MIRROR
49 2002.935.02 MIRROR CRAMP SET
50 LOCK DOOR LOCK FOR DOOR
51 2002.839.23 HACK WHITE
52 2002.089.35 DOOR PUSHER
53 1902.036.14 STRIP
54 1504.220.00 HALOGEN SPOT
55 1510.180.00 LАМР
56 1902.102.00 STRIP
57 2002.161.01 TOILET DOOR WITH LOCK
58 DOOR HINGE DOOR HINGE
59 STICKER STICKER
59.1 STICKER STICKER
59.2 STICKER REFUSE STICKER REFUSE
59.3 STICKER SOAP STICKER SOAP
59.4 STICKER STICKER
60 WATER PUMP WATER PUMP
61 TANK PASSAGE TANK PASSAGE
62 AIR CONNECTOR COMPRESSED AIR CONNECTOR
63 2002.089.37 DRAIN PISTON VALVE
64 2001.500.05 VENTILATOR
65 WATER PUMP WATER PUMP
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
