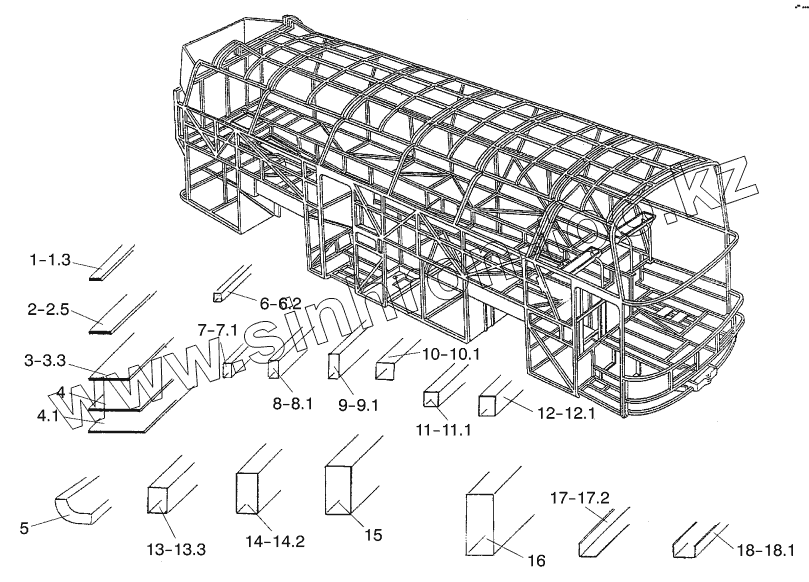

Каталог запасных частей к технике: Neoplan N 116 E2. SKELETON

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
1.1
1.2
1.3
2
2.1
2.2
2.3
2.4
2.5
3
3.1
3.2
3.3
4
4.1
5
6
6.1
6.2
6.3
7
7.1
8
8.1
8.2
9
9.1
10
10.1
11
11.1
12
12.1
13
13.1
13.2
13.3
14
14.1
14.2
15
16
17
17.1
17.2
18
18.1
Позиция на иллюстрации Заводской номер детали Название детали
1 1414.006.00 FLAT STEEL
1.1 1414.007.00 FLAT STEEL
1.2 1414.010.00 BRACKET
1.3 1414.005.00 FLAT STEEL
2 1414.011.00 FLAT STEEL
2.1 1414.033.00 BRACKET
2.2 1414.067.00 FLAT STEEL
2.3 1414.013.00 BRACHET
2.4 1414.034.00 FLAT STEEL
2.5 1414.068.00 FLAT STEEL
3 1414.035.00 FLAT STEEL
3.1 1414.014.00 FLAT STEEL
3.2 1414.038.00 BRACKET
3.3 1414.039.00 FLAT STEEL
4 1414.042.00 FLAT STEEL
4.1 1414.047.00 FLAT STEEL
5 1409.006.00 SWISS ROOF PROFILE
6 1415.270.60 SQUARE STEEL TUBE
6.1 1415.272.01 SQUARE STEEL TUBE
6.2 1415.299.50 SQUARE STEEL TUBE
6.3 1415.271.00 SQUARE STEEL TUBE
7 1415.252.90 SQUARE STEEL TUBE
7.1 1415.262.60 SQUARE STEEL TUBE
8 1415.276.50 SQUARE TUBE
8.1 1415.264.60 SQUARE STEEL TUBE
8.2 1415.275.60 SQUARE STEEL TUBE
9 1415.279.60 SQUARE STEEL TUBE
9.1 1415.281.50 SQUARE TUBE
10 1415.298.50 SQUARE TUBE
10.1 1415.332.60 SQUARE TUBE
11 1415.277.50 SQUARE TUBE
11.1 1415.277.40 SQUARE TUBE
12 1415.282.50 SQUARE STEEL TUBE
12.1 1415.322.60 SQUARE STEEL TUBE
13 1415.286.50 SQUARE STEEL TUBE
13.1 1415.323.60 SQUARE STEEL TUBE
13.2 1415.287.50 SQUARE TUBE
13.3 1415.324.61 SQUARE STEEL TUBE
14 1415.269.60 SQUARE STEEL TUBE
14.1 1415.291.60 SQUARE STEEL TUBE
14.2 1415.361.50 SQUARE STEEL TUBE
15 1415.330.60 SQUARE STEEL TUBE
16 1415.328.60 SQUARE STEEL TUBE
17 1415.415.00 ANGEL STEEL
17.1 1414.410.00 ANGEL STEEL
17.2 1414.411.00 ANGEL STEEL
18 1410.025.00 U-PROFILE
18.1 1410.052.00 U-PROFILE
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
