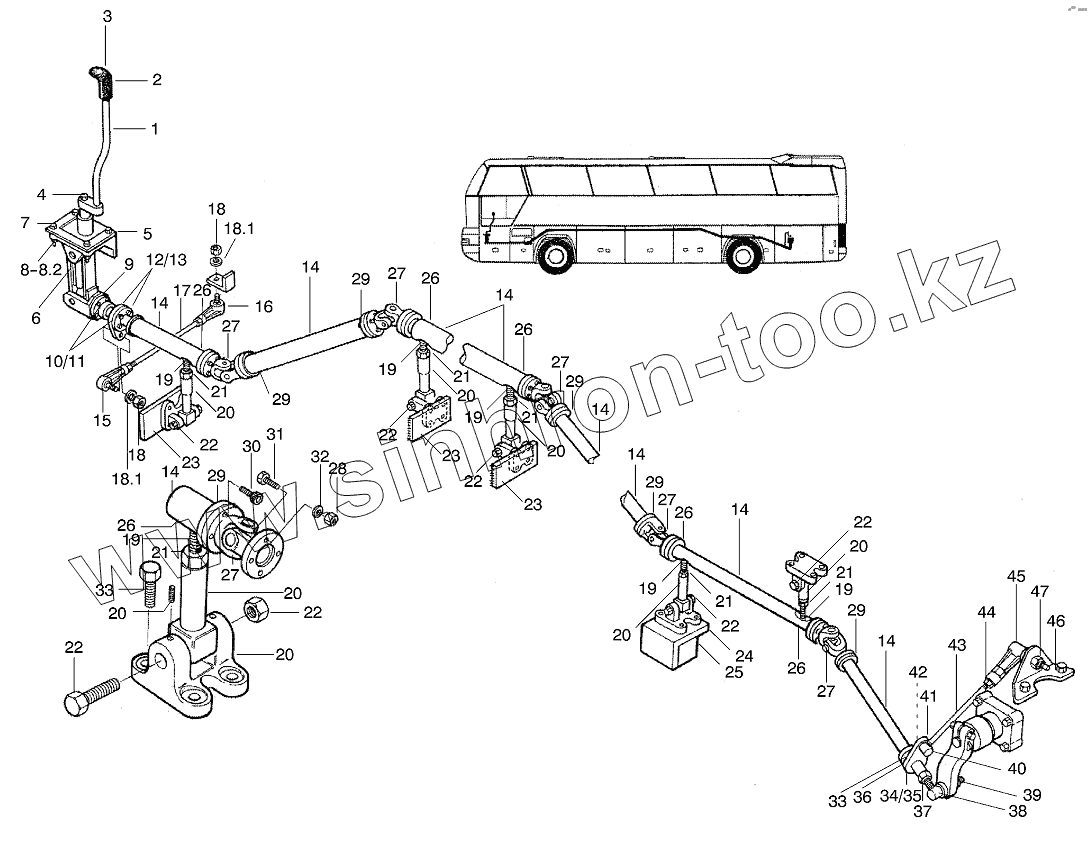

Каталог запасных частей к технике: Neoplan N 116 E2. SELECTOR SHAFT AND PARTS

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
2
3
4
5
6
7
8
8.1
8.2
9
10
11
12
13
14
14
14
14
14
14
14
14
15
16
17
18
18
18.1
18.1
19
19
19
19
19
19
20
20
20
20
20
20
20
20
21
21
21
21
21
21
22
22
22
22
22
22
22
23
23
23
24
25
26
26
26
26
26
26
27
27
27
27
27
27
28
29
29
29
29
29
29
30
31
32
33
33
34
35
36
37
38
39
40
41
42
43
44
45
46
Позиция на иллюстрации Заводской номер детали Название детали
1 LEAVER GEARSHIFT LEAVER
2 KNOB GEARSHIFT KNOB
3 COVER COVER
4 5050.104.01 SCREW
5 0522.464.00 CONSUMPTION
6 0522.004.00 GEARSHIFT GATE
7 5050.110.01 HEXAGON SCREW
8 5095.007.01 NUT
8.1 5020.012.01 SPRING RING
8.2 5010.006.01 WASHER
9 0522.473.00 FLANGE
10 5050.080.01 SCREW
11 5095.006.01 NUT
12 0522.473.00 FLANGE
13 0522.461.00 FLANGE
14 1415.015.50 GEAR SHIFT TUBE
15 0501.113.11 BALL JOINT
16 0501.113.03 BALL- AND -SOCKET JOINT
17 0501.113.04 PULL ROD
18 5095.007.01 NUT
18.1 5010.006.01 WASHER
19 0522.459.00 SWINGING- FORTE BEARING
20 0522.459.30 BALL-AND -SOCKET JOINT
21 5060.008.01 HEXAGON NUT
22 5035.472.00 BOLT
23 0522.464.03 FLANGE PLATE
24 0522.464.01 FLANGE PLATE
25 1414.150.00 BRACKET
26 0522.460.00 TUBE FLANGE
27 0522.463.30 UNIVERSAL JOINT
28 5060.005.01 NUT
29 0522.461.00 FLANGE
30 5035.053.01 SCREW
31 5035.056.00 SCREW
32 5020.011.01 SPRING RING
33 0101.145.03 HARDY DISC
34 0637 011 570 LOCKING NUT
35 5050.082.01 SCREW
36 0501.152.00 CONNECTING PART
37 NUT NUT
38 0501.113.21 BALL JOINT
39 0521.030.00 LOCKING NUT
40 0732 107 019 BALL JOINT
41 0637 011 570 LOCKING NUT
42 0637 006 202 NUT
43 0501.165.02 DROWBAR
44 0637 006 215 NUT
45 0501.113.00 BALL JOINT
46 1304 307 278 SUPPORT PLATE
