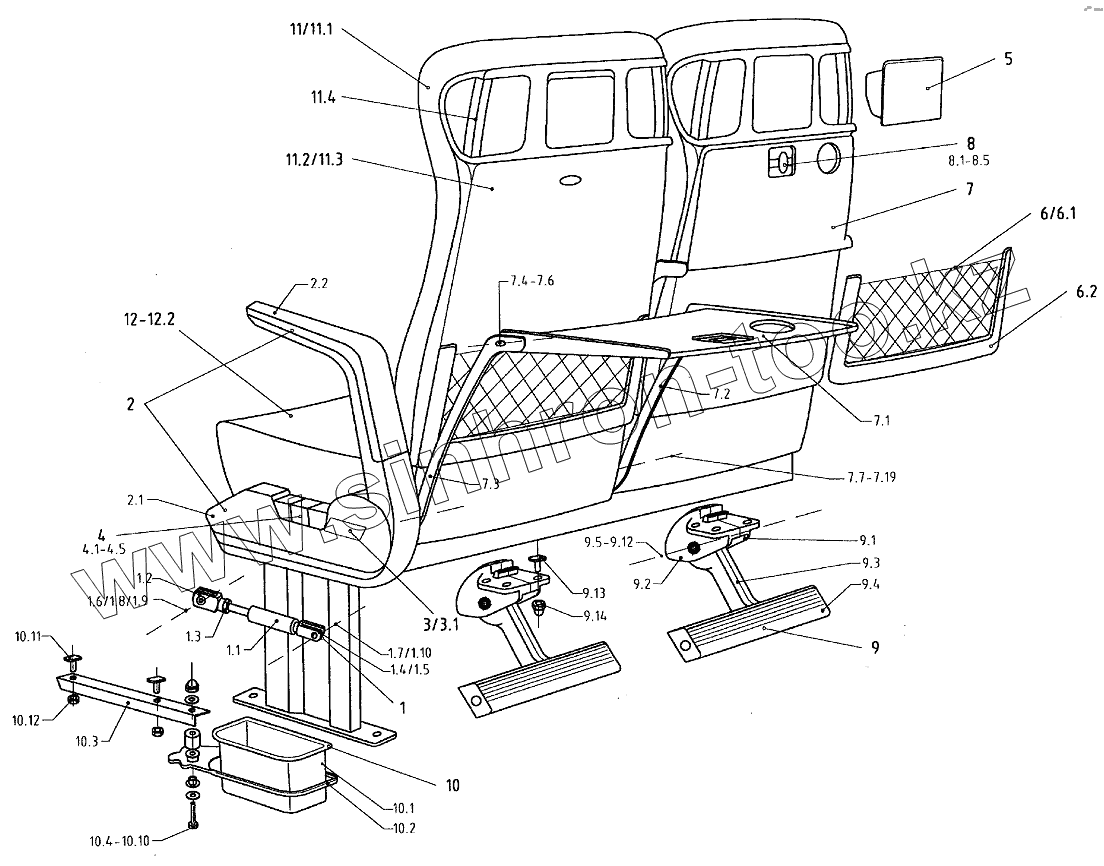

Каталог запасных частей к технике: Neoplan N 116 E2. SEATING PARTS
1
1.1
1.2
1.3
1.4
1.5
1.6
1.7
1.8
1.9
1.10
2
2.1
2.2
3
3.1
4
4.1
4.2
4.3
4.4
4.5
5
6
6.1
6.2
7
7.1
7.2
7.3
7.4
7.5
7.6
7.7
7.8
7.9
7.10
7.11
7.12
7.13
7.14
7.15
7.16
7.17
7.18
7.19
8
8.1
8.2
8.3
8.4
8.5
9
9.1
9.2
9.3
9.4
9.5
9.6
9.7
9.8
9.9
9.10
9.11
9.12
9.13
9.14
10
10.1
10.2
10.3
10.4
10.5
10.6
10.7
10.8
10.9
10.10
10.11
10.12
11
11.1
11.2
11.3
11.4
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 3.09.50.500 | Gas spring cpl. | |
| 1.1 | 1.11.04.400 | Gas spring - FB 22 - 600 N | |
| 1.2 | 1.08.02.810 | Clevis forwardly 10x20 | |
| 1.3 | 1.07.17.030 | Hexagon nut DIN 936 M Zn 10x1 | |
| 1.4 | 1.08.02.800 | Clevis rear 8 x 24 | |
| 1.5 | 1.07.03.800 | Screw DIN 551 M 8x20 Zn | |
| 1.6 | 1.04.04.180 | Bearing gas spring up | |
| 1.7 | 1.08.02.850 | E-S-bolt Zn 0 8 | |
| 1.8 | 1.07.36.400 | Collet DIN 7346 10x36 | |
| 1.9 | 1.07.36.360 | Collet DIN 7346 8x36 | |
| 1.10 | 1.08.02.570 | Jack STNT В 11 | |
| 2 | 3.02.50.010/020 | ZB It armrest. / Ri. IVO 90 kpl. | |
| 2.1 | 1.05.01.910 | Covering left IVO 90 | |
| 1.05.01.900 | 1.05.01.900 | Right trim IVO 90 | |
| 2.2 | 1.05.01.920 | Armrest IVO 90 | |
| 3 | 1.04.04.131/130 | Cover le. / Ri. IVO 90 | |
| 3.1 | 1.04.02.700 | Logo for armrest IVO 90 | |
| 4 | 3.39.51.300 | Buttons for triggering RVR + S, compl. | |
| 4.1 | 1.04.04.010 | housing PA.6 | |
| 4.2 | 1.04.04.020 | key PA.6 | |
| 4.3 | 1.04.04.050 | Cap with short arrow PA.6 | |
| 4.4 | 1.04.04.030 | Blind Taste | |
| 4.5 | 1.09.01.400 | Spring D-117/0 | |
| 5 | 1.11.07.450 | Ash 858.004.7. clipped | |
| 6 | 1.11.07.130 | Frame network 858.000.7 | |
| 6.1 | 1.11.07.131 | PSU 858.002.5 | |
| 6.2 | 1.11.07.132 | Coverage network 858.001.5 | |
| 7 | 3.35.61.200 | Folding table complete. cantilever with kinematics | |
| 7.1 | 1.04.05.500 | folding Table | |
| 7.2 | 1.05.01.960 | Linkage table right | |
| 7.3 | 1.05.01.961 | Linkage table left | |
| 7.4 | 1.07.04.090 | Screw DIN 915 M 4x12 Zn | |
| 7.5 | 1.07.13.050 | Countersunk screw DIN 7991 M 6x20 8.82 n micro | |
| 7.6 | 1.07.29.040 | Belleville washer DIN 2093 20x10, 2x1, 1 | |
| 7.7 | 1.08.02.690 | Pivot screw SW 17x37, 5 С 35 Zn | |
| 7.8 | 1.04.04.240 | Plain, form S GSM 1315-10 | |
| 7.9 | 1.07.22.050 | U-ScheibeDIN Zn 125 10.5 | |
| 7.10 | 1.08.02.560 | Jack Sint В 11 (back to base) | |
| 7.11 | 1.07.29.200 | Belleville washer DIN 2093 31,5 x16, 3x1, 25 | |
| 7.12 | 1.07.18.100 | Locknut SSN 003 M 10 Zn | |
| 7.13 | 1.08.02.540 | Bush d.15, 95x9, 2 Zn | |
| 7.14 | 1.07.19.110 | Tensilok nut M 6 W196 St Zn | |
| 7.15 | 1.08.02.670 | Jack table stop d.16 x 14 Zn | |
| 7.16 | 1.07.12.035 | Screw DIN 7984 M 6 x 20 Zn | |
| 7.17 | 1.07.27.009 | Schnorr fuse d 6.4 N0110 | |
| 7.18 | 1.08.02.692 | Table hinge screw M 6 Zn SW 1717x10 | |
| 7.19 | 1.04.04.145 | Disk d 22x0 13 | |
| 8 | 3.07.61.500 | Spagnolet cpl. | |
| 8.1 | 1.04.04.220 | Spagnolet PA.6 | |
| Combined form | Combined form | Combined form 1.04.04.220 | |
| 8.2 | 1.04.04.230 | Locking sleeve PA.6 | |
| Combined form | Combined form | Combined form 1.04.04.220 | |
| 8.3 | 1.04.04.235 | leadership PA.6 | |
| Combined form | Combined form | Combined form 1.04.04.220 | |
| 8.4 | 1.09.01.400 | Spring D-117/0 | |
| 8.5 | 1.07.12.980 | Screw M 3x12 DIN 7991 8.8 | |
| 9 | 3.11.00.300 | Footrest assy. mounted | |
| 9.1 | 1.05.10.202 | Fus stutzengeha use right | |
| 9.2 | 1.05.10.201 | Fus stutzengeha use left | |
| 9.3 | 1.05.10.200 | Foot rest | |
| 9.4 | 1.04.01.850 | Foot rest PA.6 | |
| 9.5 | 3.33.01.420 | Pawl assy. | |
| 9.6 | 1.08.03.260 | Spacer | |
| 9.7 | 1.09.01.250 | Leaf spring 10x38 | |
| 9.8 | 1.07.04.400 | Hex screw DIN 931 M8x55 Zn | |
| 9.9 | 1.07.23.120 | Lock washer DIN 137 А10 Zn | |
| 9.10 | 1.07.07.010 | Tapping screw M4x8 DIN 7516 Form A | |
| 9.11 | 1.07.18.060 | Lock nut M 8 Zn | |
| 9.12 | 1.07.22.040 | Washer DIN 125 4.8 Zn | |
| 9.13 | 1.08.03.200 | Stop screw M 8x20 8.8 Zn | |
| 9.14 | 1.07.19.030 | NUT | |
| 10 | 3.01.11.030 | Waste container assy. | |
| 10.1 | 2.01.01.100 | litter bins | |
| 10.2 | 2.15.05.010 | Holder for waste containers | |
| 10.3 | 2.36.01.050 | carrier | |
| 10.4 | 1.08.01.800 | Spacer 0 25 Al Cu Mg Pb F 37 | |
| 10.5 | 1.07.25.020 | Washer DIN 7349 8.4 Zn | |
| 10.6 | 1.04.01.170 | bushing | |
| 10.7 | 1.08.02.150 | Joint Bundbuchse 0 18x12 Al Cu Mg Pb F 38 | |
| 10.8 | 1.08.01.800 | Spacer 0 25 Al Cu Mg Pb F 37 | |
| 10.9 | 1.07.22.040 | Washer DIN 125 4.8 Zn | |
| 10.10 | 1.07.19.030 | NUT | |
| 10.11 | 1.08.03.250 | Stop screw M 8 x 14 8.8 | |
| 10.12 | 1.07.19.120 | Tensilok nut M 8 W 196 St Zn | |
| 11 | 1.04.05.100 | Backrest shell 440 | |
| 11.1 | 2.32.63.120 | Back form part 440 | |
| 11.2 | 2.31.62.015 | back Shell | |
| 11.3 | 1.07.07.600 | self-tapping screw M 6x10 DIN 7500 | |
| 11.4 | 1.04.06.501 | handle |
