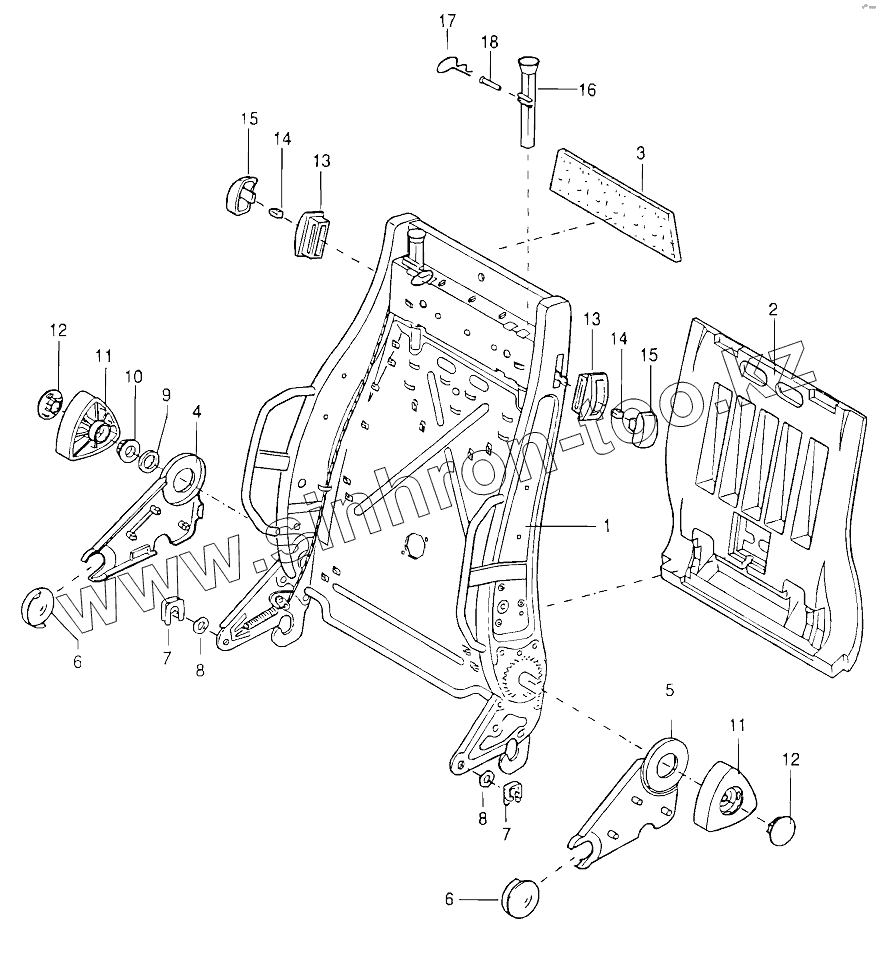

Каталог запасных частей к технике: Neoplan N 116 E2. DRIVERS SEAT RECARO BACKREST, MANUAL

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
1
2
2
3
3
4
5
6
6
7
7
7
8
8
8
11
11
12
12
13
13
14
14
15
15
16
16
17
17
18
18
Позиция на иллюстрации Заводской номер детали Название детали
365063 365063 REPAIR KIT HANDWHEELS
CAP- POWER CAP- POWER CAP- POWER RECLINER FOR BACKREST ELECTRICAL
365060 365060 REPAIR KIT COVERS
365061 365061 REPAIR KIT BACKREST RELEASE
370126 370126 REPAIR KIT BACKREST STRUCTURE WITH SIDEBOLSTER
1 BACKREST FRAME BACKREST FRAME
1 BACKREST FRAME BACKREST FRAME
2 COVER-BACKREST COVER- BACKREST
2 COVER-BACKREST COVER- BACKREST
3 CUT FOAM-BACKREST CUT FOAM- BACKREST
3 CUT FOAM-BACKREST CUT FOAM- BACKREST
4 COVER RIGHT COVER RIGHT
5 COVER LEFT COVER LEFT
6 CAP CAP
7 LOCK WASHER LOCK WASHER
7 LOCK WASHER LOCK WASHER
8 SPRING WASHER SPRING WASHER
8 SPRING WASHER SPRING WASHER
11 HANDWHEEL BIG HANDWHEEL BIG FOR BACKREST, MANUAL
12 CAP CAP
13 RELEASE TRIM RELEASE TRIM
14 CLIP CLIP
15 RELEASE KNOP RELEASE KNOP
16 GUIDE TUBE GUIDE TUBE
16 GUIDE TUBE GUIDE TUBE
17 TORSION SPRING TORSION SPRING
17 TORSION SPRING TORSION SPRING
18 SLEEVE-SPRINGS SLEEVE-SPRINGS
18 SLEEVE-SPRINGS SLEEVE-SPRINGS
