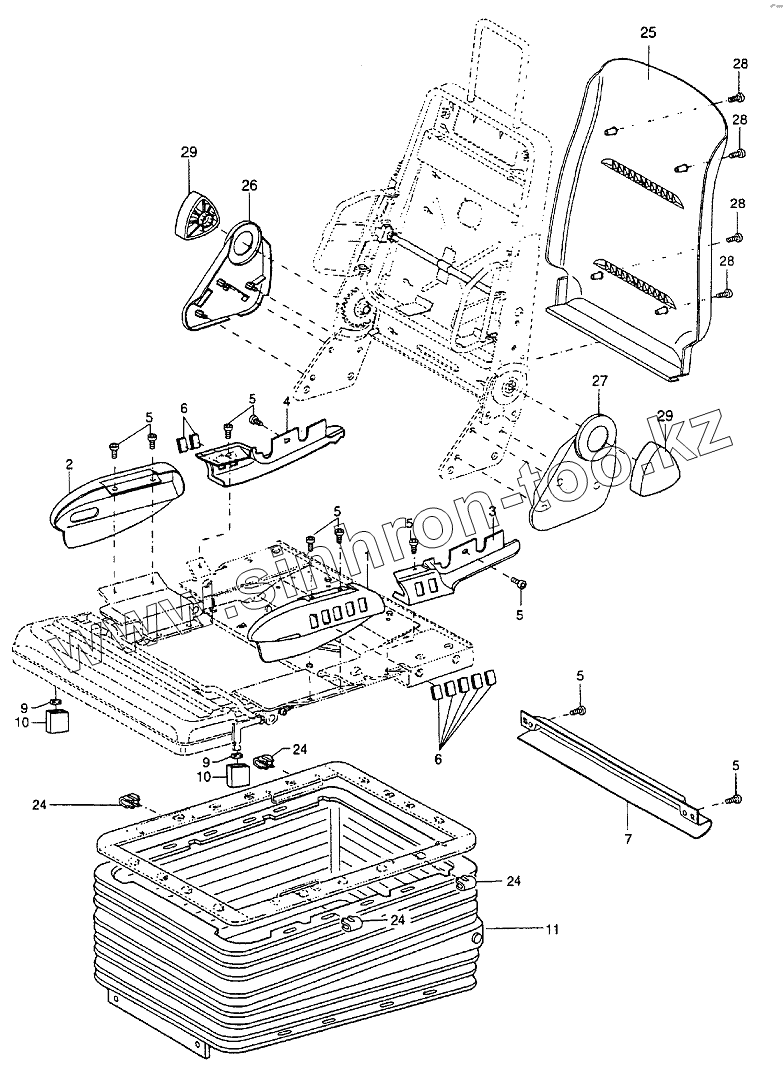

Каталог запасных частей к технике: Neoplan N 116 E2. DRIVERS SEAT PLASTIC COVERS AND COVER FASTENING

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
2
3
4
5
5
5
5
5
5
5
5
6
6
6
7
9
9
9
10
10
10
11
11
24
24
24
24
25
26
27
28
28
28
28
29
29
Позиция на иллюстрации Заводской номер детали Название детали
365060 365060 REPAIR KIT COVERS
368239 368239 REPAIR KIT PLASTIC COVERS BACKREST
368240 368240 REPAIR KIT COVER RIGHT, WHEN SWITCHES LH
1 368859 REPAIR KIT COVER LEFT, WHEN SWITCHES LH
2 FRONT COVER, RIGHT FRONT COVER, RIGHT
3 BACK COVER, LEFT BACK COVER, LEFT
4 BACK COVER, RIGHT BACK COVER, RIGHT
5 SCREW DIN 7981 SCREW DIN 7981
5 SCREW DIN 7981 SCREW DIN 7981
6 COVER PLATE SWITCH COVER PLATE SWITCH
6 COVER PLATE SWITCH COVER PLATE SWITCH
7 364105 CABLE HOUSING REAR
9 CLIP CLIP
9 CLIP CLIP
10 RELEASE LEVER-RAKE ADJ. RELEASE LEVER-RAKE ADJ.
10 RELEASE LEVER- RAKE ADJ. RELEASE LEVER- RAKE ADJ.
11 306536 PROTECTIVE BELLOW FOR HEIGHT ADJUSTMENT
11 334630 PROTECTIVE BELLOW FOR HEIGHT ADJUSTMENT AND SUSPENSION
24 365068 PLASTIC CLIP-BELLOW
25 PLASTIC COVER BACKREST PLASTIC COVER BACKREST
26 COVER, LEFT COVER, LEFT
27 COVER, RIGHT COVER, RIGHT
28 SCREW SEAT BASE SCREW SEAT BASE
29 HANDWHEEL, FOR BACKREST MANUAL HANDWHEEL, FOR BACKREST MANUAL
