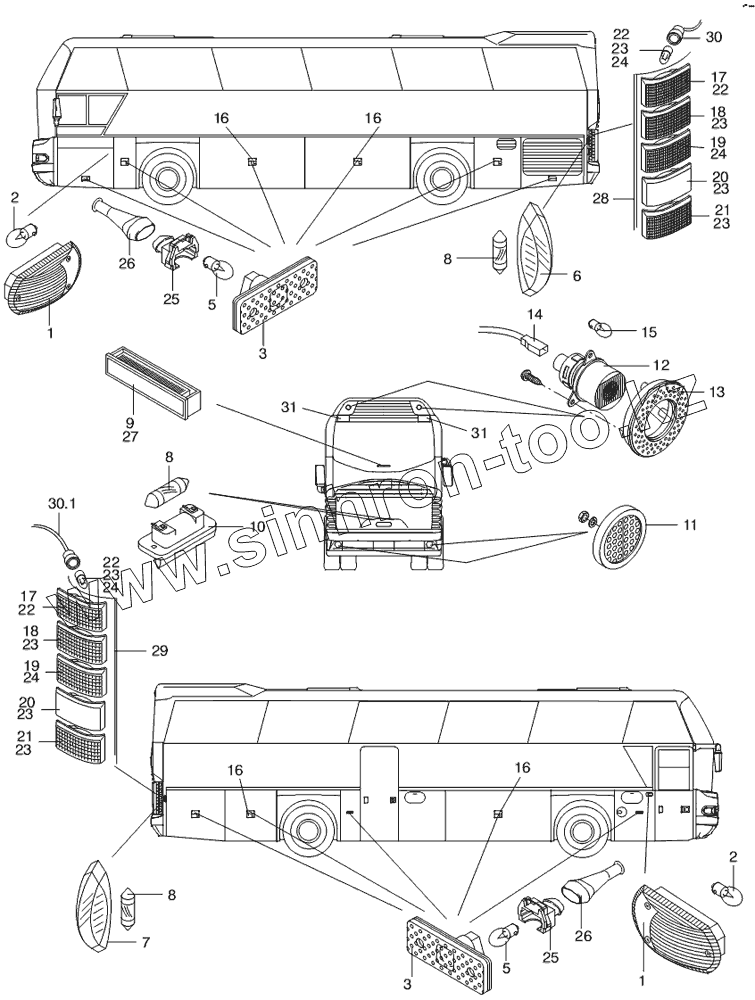

Каталог запасных частей к технике: Neoplan N 116 (MAN) E3 (вар.). LIGHTING OUTSIDE
1
1
2
2
3
3
5
5
6
7
8
8
8
9
10
11
12
13
14
15
16
16
16
16
17
17
18
18
19
19
20
20
21
21
22
22
22
22
23
23
23
23
23
23
23
23
24
24
24
24
25
25
26
26
27
28
29
30
30.1
31
31
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 11063901 | ADDITIONAL FLASHER LAMP | |
| 2 | 11028742 | BULB 24V 15W | |
| 3 | 11025357 | LIGHT SIDE MARKER | |
| 4 | 11025245 | RUBBER GROMMET | |
| 5 | 11028726 | BULB 24V/3W | |
| 6 | 11070810 | CLEARANCE LAMP | |
| 7 | 11070811 | CLEARANCE LAMP | |
| 8 | 11028765 | TUBULAR BULB 24V/5W | |
| 9 | 11073770 | BRAKE LIGHT | |
| 10 | 11025356 | NUMBER PLATE ILLUMINATION LIGHT | |
| 11 | 11073789 | REFLEX REFLECTOR RED | |
| 12 | 11073787 | FLASHER LAMP | |
| 13 | 11073790 | LED-CIRCLE LAMP | |
| 14 | 11073881 | WIRE SET | |
| 15 | 11075005 | ELECTRIC BULB | |
| 16 | 11045803 | LUGGAGE FLAP HANDLE | |
| 16.1 | 11045805 | LUGGAGE FLAP HANDLE | |
| 17 | 11025323 | FLASHER LAMP | |
| 18 | 11025278 | TAIL LAMP | |
| 19 | 11025218 | STOP LIGHT | |
| 20 | 11025346 | BACK-UP LIGHT | |
| 21 | 11025087 | REAR FOG LAMP | |
| 22 | 11028742 | BULB 24V 15W | |
| 23 | 11028721 | BULB 24V 21W | |
| 24 | 11028731 | BULB | |
| 25 | 11027468 | PLUG HOUSING | |
| 26 | 11027469 | PROTECTING CAP | |
| 27 | 11075131 | BRACKET | |
| 28 | 11076077 | LAMP HOUSING LEFT | |
| 29 | 11076078 | LAMP HOUSING RIGHT | |
| 30 | 11028291 | CABLE HARNESS | |
| 30.1 | 11028292 | CABLE HARNESS | |
| 31 | 11077023 | POSITION LAMP ADDITIONAL |
