Каталог запасных частей к технике: Neoplan N 116 (MAN) E3 (вар.). DOORS
1
2
2
3
4
5
6
6
7
7
8
9
9
9
9
10
10
10
10
10
11
13
14
15
16
17
18
19
20
21
22
23
23
24
25
26
26
27
28
29
30
30
31
31
32
33
34
35
35
35
35
36
37
38
38
39
40
42
42
42
42
43
44
47
48
49
50
51
52
52
52
52
53
54
55
56
57
57
58
58
59
59
481

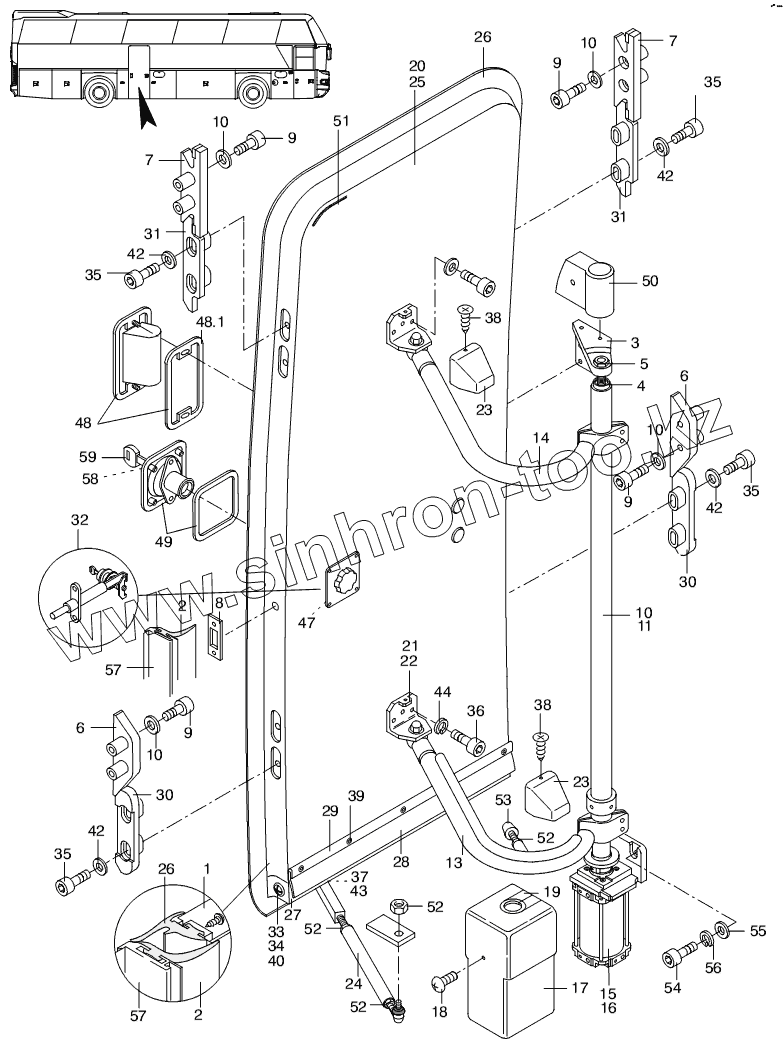

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 11046656 | 11046656 | OUTWARD SWINGING DOOR | |
| 25-793-1002-301 | 25-793-1002-301 | PAN HEAD | |
| 4215-00-0-01-000 | 4215-00-0-01-000 | MARKER'S EMBLEM | |
| 11047421 | 11047421 | DOOR CONTROL UNIT | |
| 1 | 11047383 | PROFILE-FRAME PORTAL THREE PIECE | |
| 2 | 11047395 | RUBBER FRAME | |
| 3 | 11047461 | PIROT COLUMN | |
| 4 | 11047280 | BEARING BOLT | |
| 5 | 11047377 | HEX NUT BM20X1,5 | |
| 6 | 11047399 | LOCK KEY LOWER | |
| 7 | 11047250 | LOCK KEY UPPER | |
| 8 | 11047278 | LOCK SHEET | |
| 9 | 11057134 | CYLINDER SCREW | |
| 10 | 11056522 | WASHER | |
| 11 | 14012476 | PIROT COLUMN CPL. | |
| 12 | 7872-78-0-36-270 | PIROT COLUMN ZUS. | |
| 13 | 11046721 | SUPPORTING ARM | |
| 14 | 11046722 | SUPPORTING ARM | |
| 15 | 11047453 | ACIDIMETER | |
| 16 | 11047444 | THROTTLE SCREW M12X1,5MM | |
| 17 | 11047457 | CAP | |
| 18 | 11057178 | SCREW | |
| 19 | 11047668 | COVERING RUBBER | |
| 20 | 14012024 | DOOR WING CONSISTING OF: | |
| 21 | 11047313 | CLOSING CAM | |
| 22 | 7818-14-0-01-335 | BEARING SUPPORT | |
| 23 | 11047401 | CAP | |
| 24 | 11047341 | STEERING LINKAGE | |
| 25 | 25-110-0158-201 | DOOR WING | |
| 26 | 11047332 | RUBBER PROFILE | |
| 27 | 25-154-0001-201 | STRIP | |
| 28 | 11047294 | SEALING | |
| 29 | 6934-02-0-04-234 | HOLDING STRIP | |
| 30 | 11047313 | CLOSING CAM | |
| 31 | 11047255 | CLOSING CAM | |
| 32 | 14011305 | INTERLOCK CPL. | |
| 33 | 11047571 | RUBBER PROFILE FINAL PART | |
| 34 | 11047572 | RUBBER PROFILE FINAL PART | |
| 35 | 11057137 | CYLINDER SCREW | |
| 36 | 11054813 | SCREW | |
| 37 | 11054815 | SCREW | |
| 38 | 11056268 | SCREW | |
| 39 | 11056271 | SCREW | |
| 40 | 11056979 | SCREW | |
| 41 | 11056581 | WASHER | |
| 42 | 11056522 | WASHER | |
| 43 | 831-6006-214 | SPRING RING | |
| 44 | 11054700 | SPRING RING | |
| 47 | PLUG | PLUG | |
| 48 | 11047402 | doorhandle plate cpl. | |
| 49 | 11045834 | LOOK AT 2401 DOOR LOCK | |
| 50 | 11038273 | COVERING | |
| 51 | 11035028 | ALU-TREAD ANODIZE STRIP-SINGLE SOFT | |
| 52 | 11055820 | NUT | |
| 53 | 11047077 | RUBBER BUMP | |
| 54 | 11055556 | SCREW | |
| 55 | 11054600 | WASHER | |
| 56 | 11054681 | SPRING RING | |
| 57 | 11047087 | STRIP | |
| 58 | 11045663 | LOCK ZYLINDER | |
| 58 | 11045682 | LOCK ZYLINDER | |
| 59 | 11045684 | LOCK ZYLINDER | |
| 59 | 11045703 | LOCK ZYLINDER | |
| 481 | 11047403 | COVERING RUBBER |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
