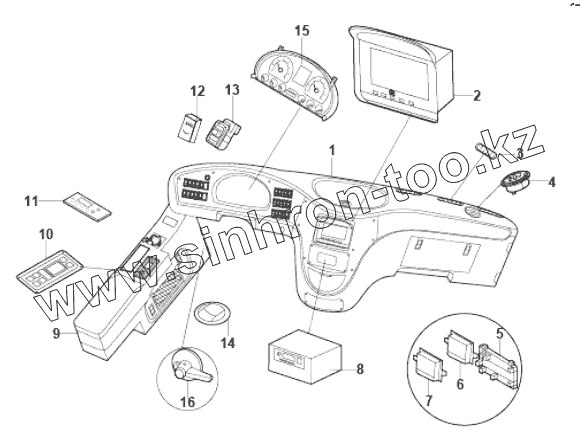

Каталог запасных частей к технике: King Long Автобус XMQ-6800Y. INSTRUMENT DESK
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 253500438 | 253500438 | Attachment, instrument desk | |
| 253500115 | 253500115 | Single air outlet, instrument desk | |
| 253500084 | 253500084 | Instrument desk decorative plate | |
| 257700320 | 257700320 | Long air duct, instrument desk | |
| 279100090 | 279100090 | Vehicle-mounted computer | |
| 279101530 | 279101530 | Power amplifier | |
| 1 | 253502480 | Instrument desk assembly, main | |
| 2 | 279200053 | Monitor assembly | |
| 3 | 253501240 | Single air outlet, instrument desk | |
| 4 | 253500279 | Oil pan | |
| 5 | 238600099 | Fuse box | |
| 6 | 238400143 | Can | |
| 7 | 238400142 | Can processor | |
| 8 | 279102570 | Vehicle-mounted computer | |
| 9 | 253502500 | Instrument desk assembly, auxiliary | |
| 10 | 238200074 | Control pannel | |
| 11 | 238200769 | Control pannel, heater | |
| 12 | 238200367 | Fire extinguisher button | |
| 13 | 282000049 | Regulating switch, rearview mirror | |
| 14 | 253500420 | Single air outlet, instrument desk | |
| 15 | 238500034 | Can instrument | |
| 16 | 261500507 | Emergency valve |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
