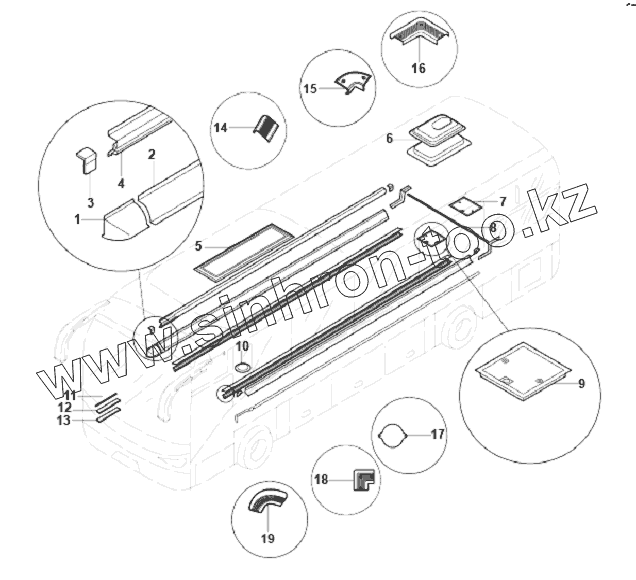

Каталог запасных частей к технике: King Long Автобус XMQ-6800Y. INNER TRIM (2)
1
1
2
3
3
4
5
6
7
8
9
10
11
12
13
14
14
15
16
17
18
19
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 236501460 | 236501460 | Luggage compartment lamp | |
| 1 | 251500002 | Sealing head, heater shield | |
| 1 | 251500001 | Sealing head, heater shield | |
| 2 | 432990010 | Decorative cover | |
| 3 | 251500453 | Mouting aluminium section, seat | |
| 3 | 251507940 | End cover, passenger seat section | |
| 4 | 431340010 | Mouting aluminium section, seat | |
| 5 | 281600120 | Air return grille | |
| 6 | 257301160 | Scuttle | |
| 7 | 251400030 | Access cover | |
| 8 | 431330020 | Aluminum section | |
| 9 | 251401370 | Access cover | |
| 10 | 251400240 | Access cover | |
| 11 | 445000150 | Caution rubber section, step | |
| 12 | 431110010 | Caution aluminum section, step | |
| 13 | 251508140 | Aluminum section, floor lamp | |
| 14 | 251501242 | Profile end | |
| 14 | 251502012 | Profile end | |
| 15 | 723000010 | Floor pressing strip accessories | |
| 16 | 251508030 | External corner | |
| 17 | 251301030 | Floor cover | |
| 18 | 380501290 | Floor decorative fitting | |
| 19 | 251501120 | Floor decorative fitting |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
