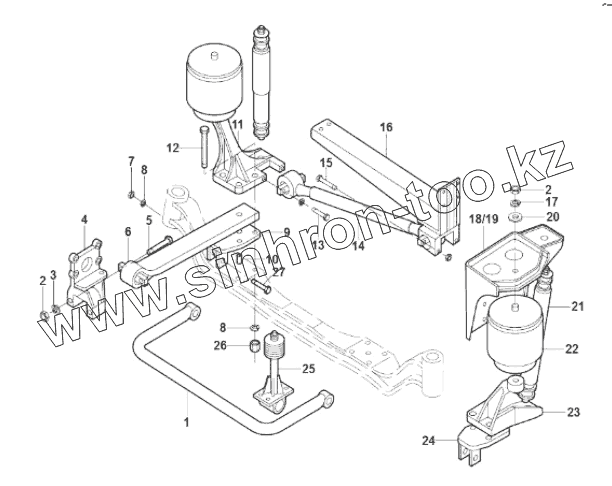

Каталог запасных частей к технике: King Long Автобус XMQ-6800Y. FRONT AIR SUSPENSION
1
2
2
3
4
5
6
7
8
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 229400610 | 229400610 | Front suspension | |
| 229001465 | 229001465 | Air bag | |
| 1 | 229000581 | Stabilizer bar with bush assy | |
| 2 | 534118002 | Nut | |
| 3 | 229000391 | Spring washer | |
| 4 | 229000201 | Guide arm bracket' | |
| 5 | 515118831 | Bolt | |
| 6 | 229000696 | Guide arm with bush assy | |
| 7 | 534020002 | Nut | |
| 8 | 229002261 | Spring washer | |
| 9 | 229000699 | Lower cushion board | |
| 10 | 229000310 | Dower pin | |
| 11 | 229000697 | Right adapter | |
| 12 | 515120841 | Bolt | |
| 13 | 515118600 | Bolt | |
| 14 | 229000582 | Thrusting rod | |
| 15 | 515118741 | Bolt | |
| 16 | 229000202 | Beam | |
| 17 | 229002260 | Spring washer | |
| 18 | 229000694 | Upper bracket, air spring, left | |
| 19 | 229000698 | Upper bracket, air spring, right | |
| 20 | 540118000 | Flat washer | |
| 21 | 229000250 | Shock absorber with bush assy | |
| 22 | 229000004 | Air chamber assy | |
| 23 | 229000695 | Left adapter | |
| 24 | 229000699 | Lower cushion board | |
| 25 | 229000409 | Hanger assy | |
| 26 | 229002194 | Nut | |
| 27 | 229000364 | Bolt |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
