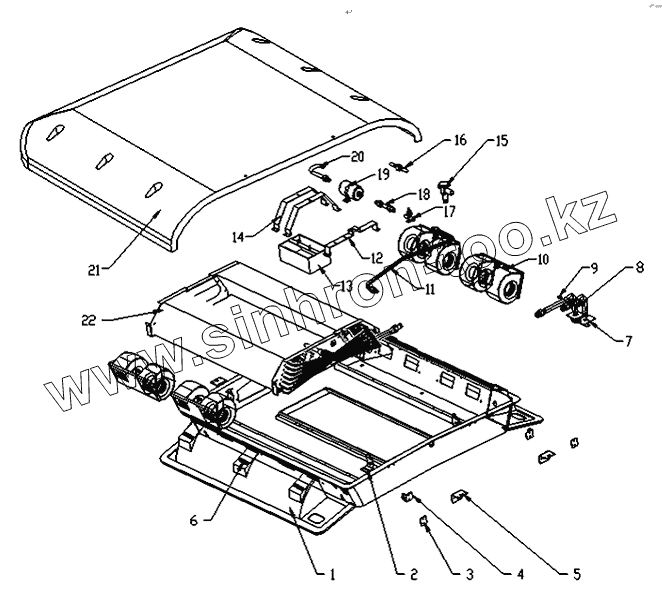

Каталог запасных частей к технике: King Long Автобус XMQ-6800Y. EVAPORATOR COMPONENTS
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 281001146 | Evaporator housing assy | |
| 2 | 281000065 | Evaporator unit fixing bracket | |
| 3 | 281000062 | Pressure plate | |
| 4 | 281000295 | Evaporator bracket | |
| 5 | 281000931 | Fixing bracket | |
| 6 | 281000632 | Nut board subassembly | |
| 7 | 281000935 | Combined pipe | |
| 8 | 298000927 | High pressure switch | |
| 9 | 298000928 | Low pressure switch | |
| 10 | 281000097 | Evaporator blower | |
| 11 | 281002075 | Liquid outlet pipe, , liquid receiver | |
| 12 | 281000934 | Bracket, drier filter | |
| 13 | 281001183 | Control box | |
| 14 | 281000932 | Bracket, control box | |
| 15 | 281000101 | Expansion valve | |
| 16 | 281000981 | Liquid inlet pipe, drier filter 1 | |
| 17 | 281000047 | Check valve | |
| 18 | 281000621 | Transition pipe, check valve | |
| 19 | 281000030 | Drier filter | |
| 20 | 281001576 | Liquid inlet pipe, drier filter | |
| 21 | 281000982 | Evaporator cover plate | |
| 22 | 281002076 | Evaporator core assy |
