Каталог запасных частей к технике: King Long Автобус XMQ-6800Y. COMPRESSOR, AIR

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано Golden Dragon Hyundai Ikarus Karosa King Long Neoplan Yutong ZF АМАЗ Богдан ЗИЛ КАВЗ Камский автозавод ЛАЗ ЛЗГМП ЛиАЗ Нефтекамский автозавод ПАЗ УралАЗ

Модель Не выбрано Автобус XMQ-6127 (2007) Автобус XMQ-6127J (2010) Автобус XMQ-6129Y (2010) Автобус XMQ-6129Y5 (2015) Автобус XMQ-6800Y (2010)

Схема > Не выбрано ENGINE ASSY AIR PREHEATER DATA PLATE HOUSING, REAR GEAR BLOCK, CYLINDER BREATHER, CRANKCASE PLUMBING, CPR COOLANT CLUTCH, REAR COMPRESSOR, AIR DAMPER, VIBRATION ACCESSORIES, ELECTRICAL THERMOSTAT DOCUMENTATIO, ENG IDT MOUNTING, ALTERNATOR LOCATION, FUEL FILTER PLUMBING, FUEL FILTER HOUSING, FLYWHEEL PLUMBING, FLYWHEEL HOUSIN FITTING, FUEL INLET PUMP, FUEL PLUMBING, FUEL FLYWHEEL MOUNTING, FLYWHEEL COVER, FRONT GEAR PLUMBING, CABIN HEATER PUMP, AUXILIARY CONNECTION, AIR INTAKE MANIFOLD, AIR INTAKE CONNECTION, AIR TRANSFER ARRANGEMENT, LIFTING MOUNTING, LIFTING BRACKET COOLER, ENGINE OIL FILTER, FULL FLOW OIL GAUGE, OIL LEVEL OIL, ENGINE PUMP, LUBRICATING OIL ARRANGEMENT, OIL FILL PAN, OIL MODULE, ENGINE CONTROL PARTS, PERFORMANCE TURBOCHARGER LEVER, ROCKER VENT, ENGINE COOLANT SENSOR, OIL PRESSURE SHIELD, HEAT SHIELD, HEAT MOUNTING, STARTING MOTOR MOTOR, STARTING ARRANGEMENT, TURBOCHARGER COOLER, TOR CONVERTER PLUMBING, TURBOCHARGER ARRANGEMENT, VALVE COVER CONNECTION, WATER OUTLET DRIVE, WATER PUMP PUMP, WATER TENSIONER, BELT HARNESS, ETR CNT MDL WRG CONNECTION, EXHAUST OUTLE ENGINE SUSPENSION INTAKE SYSTEM EXHAUST SYSTEM INTERCOOLER SYSTEM COOLING SYSTEM COOLING WATER PIPE FUEL SUPPLY SYSTEM BELT FAN PULLEY 213600020 CLUTCH CONTROL MECHANISM CLUTCH CLUTCH CONTROL MECHANISM TRANSMISSION ASSEMBLY 17-QJ-A003 TRANSMISSION HOUSING CLUTCH HOUSING INPUT LAYSHFT REVERSE ASSY MAIN SHAFT ASSY SPEEDMETER COVER ASSY SELECTOR MECHANISM ASSY GEARSHAFT COVER AND ROTRY SELECTOR MECHANISM FRONT AIR SUSPENSION REAR AIR SUSPENSION LEVELING VALVE PROPELLER SHAFT FRONT AXLE FRONT AXLE WHEEL HUB AND BRAKE DISC ASSEMBLY REAR AXLE ASSY REAR AXLE AND AXLE REAR AXLE MAIN REDUCER AND DIFFERENTIAL WHEEL HUB AND BRAKE DIC ASSY WHEEL SYSTEM STEERING SYSTEM (1) STEERING SYSTEM (2) BRAKE PIPELINE FRONT WALL RIGHT SIDE WALL LEFT SIDE WALL RIGHT SIDE BIN GATE LEFT SIDE BIN GATE REAR WALL INNER TRIM (1) INNER TRIM (2) INNER TRIM (3) READING LAMP ASSY LEFT SIDE CLAD COLUMN RIGHT SIDE CLAD COLUMN PASSENGER SEAT AND GUARDRAIL DRIVER SEAT FRONT PASSENGER DOOR DOOR PUMP CENTRAL DOOR DOOR PUMP BODY ACCESSORIES WIPER AND REARVIEW MIRROR ELECTRICAL EQUIPMENT (1)-LAMP ELECTRICAL EQUIPMENT (II) CQ2025A SWITCH CONTROL BOX FUSE BOX WIRING HARNESS,ELECTRICAL PARTS 279400380 AC172RA 363B ALTERNATOR ASSY INSTRUMENT DESK SWITCH AND INDICATOR LIGHT AIR CONDITIONER COMPRESSOR MOUNTING WATER HEATING AND DEFROSTING SYSTEM AIR CONDITIONER LAYOUT DIAGRAM EVAPORATOR COMPONENTS CONDENSER COMPONENTS EXTERIOR PIPELINE LINK

1

2

3

4

5

6

7

8

9

10

11

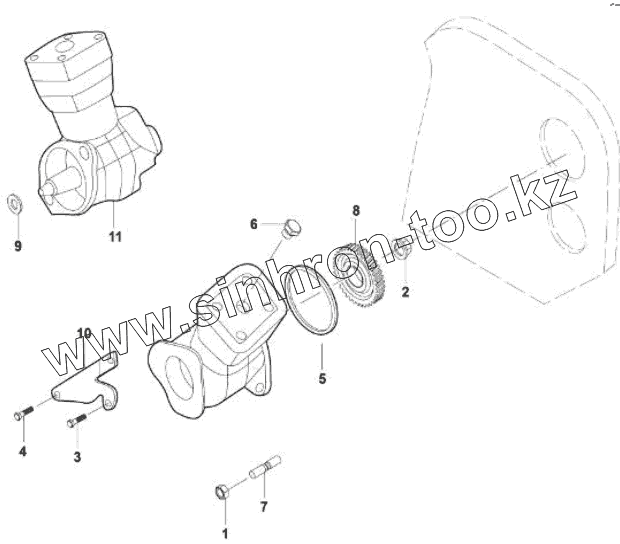

Позиция на иллюстрации	Заводской номер детали		Название детали
1	299013831		Nut, hexagon flange
2	299013841		Nut, regular hexagon
3	299001569		Screw, hex flange head cap
4	299001569		Screw, hex flange head cap
5	299013856		Seal, rectangular ring
6	299014137		Plug, threaded
7	299012872		Stud, double end plain
8	299013899		Gear, accessory drive
9	299013919		Seal, o ring
10	299014164		Brace, air compressor
11	299014179		Compressor, air

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
