CLUTCH CONTROL MECHANISM

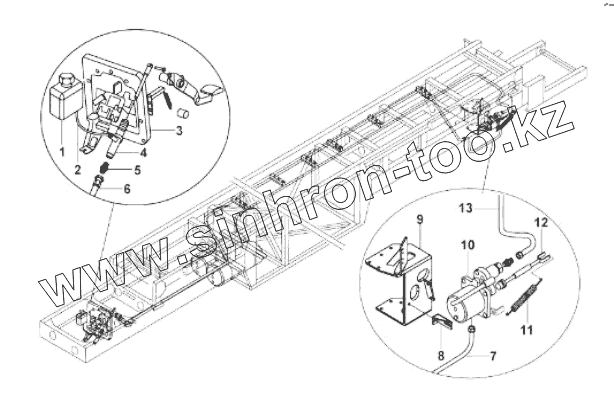

Каталог запасных частей к технике: King Long Автобус XMQ-6800Y. CLUTCH CONTROL MECHANISM
zoom-in
zoom-out
enlarge
shrink
circle-right
circle-left
file-text2
info
cart
Тип техники
Не выбрано
Легковые автомобили
Грузовые автомобили и прицепы
Автобусы
Сельхозтехника
Спецтехника
Двигатели
Мототехника
Марка
Не выбрано
Golden Dragon
Hyundai
Ikarus
Karosa
King Long
Neoplan
Yutong
ZF
АМАЗ
Богдан
ЗИЛ
КАВЗ
Камский автозавод
ЛАЗ
ЛЗГМП
ЛиАЗ
Нефтекамский автозавод
ПАЗ
УралАЗ
Модель
Не выбрано
Автобус XMQ-6127 (2007)
Автобус XMQ-6127J (2010)
Автобус XMQ-6129Y (2010)
Автобус XMQ-6129Y5 (2015)
Автобус XMQ-6800Y (2010)
Схема
>
Не выбрано
ENGINE ASSY
AIR PREHEATER
DATA PLATE
HOUSING, REAR GEAR
BLOCK, CYLINDER
BREATHER, CRANKCASE
PLUMBING, CPR COOLANT
CLUTCH, REAR
COMPRESSOR, AIR
DAMPER, VIBRATION
ACCESSORIES, ELECTRICAL
THERMOSTAT
DOCUMENTATIO, ENG IDT
MOUNTING, ALTERNATOR
LOCATION, FUEL FILTER
PLUMBING, FUEL FILTER
HOUSING, FLYWHEEL
PLUMBING, FLYWHEEL HOUSIN
FITTING, FUEL INLET
PUMP, FUEL
PLUMBING, FUEL
FLYWHEEL
MOUNTING, FLYWHEEL
COVER, FRONT GEAR
PLUMBING, CABIN HEATER
PUMP, AUXILIARY
CONNECTION, AIR INTAKE
MANIFOLD, AIR INTAKE
CONNECTION, AIR TRANSFER
ARRANGEMENT, LIFTING
MOUNTING, LIFTING BRACKET
COOLER, ENGINE OIL
FILTER, FULL FLOW OIL
GAUGE, OIL LEVEL
OIL, ENGINE
PUMP, LUBRICATING OIL
ARRANGEMENT, OIL FILL
PAN, OIL
MODULE, ENGINE CONTROL
PARTS, PERFORMANCE
TURBOCHARGER
LEVER, ROCKER
VENT, ENGINE COOLANT
SENSOR, OIL PRESSURE
SHIELD, HEAT
SHIELD, HEAT
MOUNTING, STARTING MOTOR
MOTOR, STARTING
ARRANGEMENT, TURBOCHARGER
COOLER, TOR CONVERTER
PLUMBING, TURBOCHARGER
ARRANGEMENT, VALVE COVER
CONNECTION, WATER OUTLET
DRIVE, WATER PUMP
PUMP, WATER
TENSIONER, BELT
HARNESS, ETR CNT MDL WRG
CONNECTION, EXHAUST OUTLE
ENGINE SUSPENSION
INTAKE SYSTEM
EXHAUST SYSTEM
INTERCOOLER SYSTEM
COOLING SYSTEM
COOLING WATER PIPE
FUEL SUPPLY SYSTEM
BELT
FAN PULLEY 213600020
CLUTCH CONTROL MECHANISM
CLUTCH
CLUTCH CONTROL MECHANISM
TRANSMISSION ASSEMBLY 17-QJ-A003
TRANSMISSION HOUSING
CLUTCH HOUSING
INPUT LAYSHFT REVERSE ASSY
MAIN SHAFT ASSY
SPEEDMETER COVER ASSY
SELECTOR MECHANISM ASSY
GEARSHAFT COVER AND ROTRY SELECTOR MECHANISM
FRONT AIR SUSPENSION
REAR AIR SUSPENSION
LEVELING VALVE
PROPELLER SHAFT
FRONT AXLE
FRONT AXLE
WHEEL HUB AND BRAKE DISC ASSEMBLY
REAR AXLE ASSY
REAR AXLE AND AXLE
REAR AXLE MAIN REDUCER AND DIFFERENTIAL
WHEEL HUB AND BRAKE DIC ASSY
WHEEL SYSTEM
STEERING SYSTEM (1)
STEERING SYSTEM (2)
BRAKE PIPELINE
FRONT WALL
RIGHT SIDE WALL
LEFT SIDE WALL
RIGHT SIDE BIN GATE
LEFT SIDE BIN GATE
REAR WALL
INNER TRIM (1)
INNER TRIM (2)
INNER TRIM (3)
READING LAMP ASSY
LEFT SIDE CLAD COLUMN
RIGHT SIDE CLAD COLUMN
PASSENGER SEAT AND GUARDRAIL
DRIVER SEAT
FRONT PASSENGER DOOR
DOOR PUMP
CENTRAL DOOR
DOOR PUMP
BODY ACCESSORIES
WIPER AND REARVIEW MIRROR
ELECTRICAL EQUIPMENT (1)-LAMP
ELECTRICAL EQUIPMENT (II)
CQ2025A SWITCH CONTROL BOX
FUSE BOX
WIRING HARNESS,ELECTRICAL PARTS
279400380 AC172RA 363B ALTERNATOR ASSY
INSTRUMENT DESK
SWITCH AND INDICATOR LIGHT
AIR CONDITIONER COMPRESSOR MOUNTING
WATER HEATING AND DEFROSTING SYSTEM
AIR CONDITIONER LAYOUT DIAGRAM
EVAPORATOR COMPONENTS
CONDENSER COMPONENTS
EXTERIOR PIPELINE LINK
1
2
3
4
5
6
7
8
9
10
11
12
12
13
Позиция на иллюстрации
Заводской номер детали
Название детали
1
216900010
Oil storage can, clutch
2
361100330
Rubber tube
3
234900050
Combination pedal assembly
4
216400030
Master cylinder assembly, clutch
5
350201340
Connector
6
360900090
Oil outlet pipe, clutch master cylinder
7
360900100
Hose assy
8
312200070
Oil pipe bracket
9
312200390
Bracket
10
216500040
Clutch booster
11
340100010
Spring-clutch return
12
313200340
Push rod fork - clutch booster
12
313200070
Push rod - clutch booster
13
361300120
Brake hose
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
