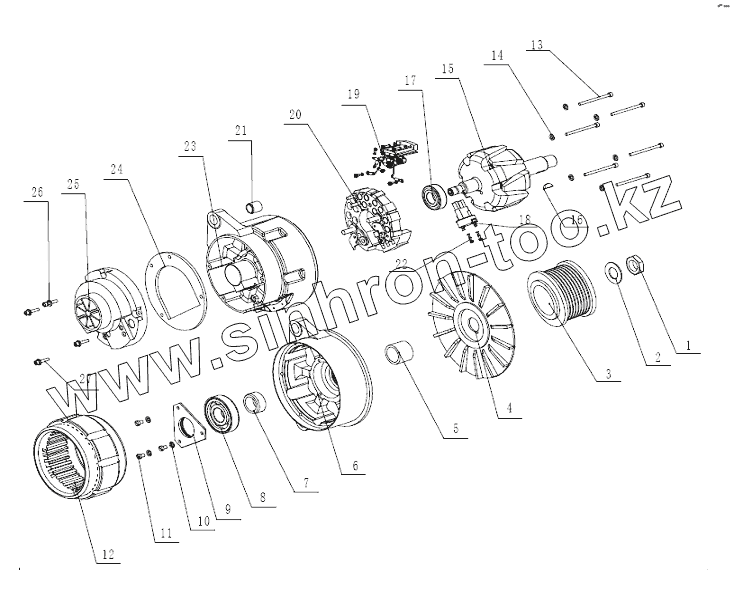

Каталог запасных частей к технике: King Long Автобус XMQ-6800Y. 279400380 AC172RA 363B ALTERNATOR ASSY
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 279000279 | Hexagon thin nut | |
| 2 | 279000295 | Cone washer | |
| 3 | 279000306 | Belt pulley | |
| 4 | 279000304 | Fan | |
| 5 | 279000290 | Locating sleeve | |
| 6 | 279000284 | Front end cover components | |
| 7 | 279000276 | Locating sleeve | |
| 8 | 279000292 | Front bearing | |
| 9 | 279000298 | Bearing cover | |
| 10 | 279000288 | Spring washer | |
| 11 | 279000293 | Bolt | |
| 12 | 279000289 | Stator assy | |
| 13 | 279000286 | Inner hexagon screw | |
| 14 | 279000278 | Pad | |
| 15 | 279000296 | Rotor assy | |
| 16 | 279000297 | Semicircular key | |
| 17 | 279000280 | Rear bearing | |
| 18 | 279000110 | Brush components | |
| 19 | 279000275 | Regulator | |
| 20 | 279000277 | Rectifier components | |
| 21 | 279000282 | Inner hexagon screw | |
| 22 | 279000283 | Bush | |
| 23 | 279000300 | Rear end cover components | |
| 24 | 279000291 | Pad | |
| 25 | 279000285 | Guard shield | |
| 26 | 279000288 | Spring washer | |
| 27 | 279000281 | Inner hexagon bolt |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
