Каталог запасных частей к технике: King Long Автобус XMQ-6129Y. MANIFOLD, EXHAUST

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано Golden Dragon Hyundai Ikarus Karosa King Long Neoplan Yutong ZF АМАЗ Богдан ЗИЛ КАВЗ Камский автозавод ЛАЗ ЛЗГМП ЛиАЗ Нефтекамский автозавод ПАЗ УралАЗ

Модель Не выбрано Автобус XMQ-6127 (2007) Автобус XMQ-6127J (2010) Автобус XMQ-6129Y (2010) Автобус XMQ-6129Y5 (2015) Автобус XMQ-6800Y (2010)

Схема > Не выбрано ENGINE ASSY ISLE 340.40 FRONT DRIVE ADAPTER AID, AIR HEATER STARTING CYLINDER BLOCK PLUG, PIPE HOUSING, GEAR CRANKCASE VENTILATION PARTS TUBE, CPR WATER PLUMBING, COO HTR STG AID ARRANGEMENT, CPR AIR INLE BEARING, BALL COMPRESSOR, AIR DAMPER, VISCOUS VIBRATION POST-PROCESSING MOUNTING KIT FUEL RETURN PIPE POSITION ELECTRONIC ACCESSORIES THERMOSTAT ALTERNATOR INSTALLATION SUPPORT, FRONT ENGINE FAN DRIVING FAN DRIVING INSTALLATION FUEL FILTER FUEL FILTER PIPE LINE PLUMBING, FLYWHEEL HOUSING FUEL INLET DEVICE FUEL PUMP INSTALLATION PUMP, FUEL TRANSFER TUBE, FUEL FLYWHEEL INSTALLATION FRONT GEAR HOUSE COVER INSTALLATION, GEAR PREHEATING PIPE LINE CONNECTION, AIR INTAKE CONNECTION INSTALLATION, AIR INTAKE INTAKE MANIFOLD PIPE, AIR TRANSFER BRACKET, LIFTING BRACKET INSTALLATION, LIFTING OIL COOLER ELEMENT, LUB OIL FILTER DIPSTICK PUMP, LUBRICATING OIL OIL FILLER OIL FILLER ACCESSORIES PAN, OIL OPTIONAL DESIGN ENGINE CONTROL MODEL INSTALLATION ENGINE CONTROL MODEL PERFORMANCE PARTS HEAD, CYLINDER TURBOCHARGER FUEL INJECTOR LINE ROCKER LEVER OUTLET PIPE, COOLING LIQUID SHIELD, HEAT STARTER INSTALLATION MANIFOLD, EXHAUST PLUG, THREADED TUBE, TUR COVER, VALVE CONNECTION, WATER INLET CONNECTION, WATER OUTLET PUMP, WATER TENSIONER, BELT WATER PUMP DRIVE HARNESS, ETR CNT MDL WRG EXH OUT CONNECTIO MOUNTING COMPONENTS ENGINE MOUNTING AIR INTAKE SYSTEM INTERCOOLER SYSTEM EXHAUST SYSTEM COOLING WATER PIPE COOLING SYSTEM FUEL SUPPLY SYSTEM BELT PULLEY & BELT FAN PULLEY ASSY CLUTCH CLUTCH & CONTROL DEVICE CONTROL DEVICE OF TRANSMISSION GEARBOX ASSY GEARBOX HOUSING GEARBOX HOUSING GEARBOX HOUSING INPUT SHAFT INPUT SHAFT LAYSHAFT LAYSHAFT MAIN SHAFT MAIN SHAFT GEAR SHIFT SYSTEM GEAR SHIFT SYSTEM GEAR SHIFT HOUSING SHIFT TURRET SET OF SPRINGS CONNECTING PARTS RETARDER RETARDER CLUTCH HOUSING CLUTCH HOUSING CLUTCH HOUSING FRONT AIR SUSPENSION REAR AIR SUSPENSION HEIGHT VALVE PROPELLER SHAFT FRONT AXLE FRONT AXLE TIE ROD REAR AXLE REAR AXLE BRAKE ASSY WHEEL HUB BRAKE DRAM ASSY MAIN REDUCER AND BEVEL GEAR DIFFERENTIAL ASSY WHEEL STEERING SYSTEM (1) STEERING SYSTEM (2) BRAKE PIPE RETARDER (1) RETARDER (2) BRACKET &CONNECTING BOARD FRONT WALL LEFT SIDE GLASS RIGHT SIDE GLASS LEFT SIDE BIN GATE RIGHT SIDE BIN GATE REAR WALL INNER TRIM (1) INNER TRIM (2) LUGGAGE RACK ASSY LEFT SIDE CLADDING COLUMN RIGHT SIDE CLADDING COLUMN FRONT PASSENGER DOOR CENTRAL PASSENGER DOOR DOOR PUMP SEAT AND GUARD RAIL BODY ACCESSORIES REARVIEW MIRROR AND WIPER SLEEPER COMPARTMENT ACCESSORIES LIGHTING SYSTEM (1) ELECTRICAL EQUIPMENT (2) HARNESS, ELECTRICAL COMPONENTS FUSE BOX SWITCH CONTROL BOX ALTERNATOR ASSY ALTERNATOR FOR AIR CONDITION INSTRUMENT DESK SWITCH AND INDICATOR LIGHT DEFROSTING SYSTEM COMPRESSOR INSTALLATION AIR CONDITIONER WIRING HARNESS SKETCH CONDENSER COMPONENTS AIR CONDITIONER, EVAPORATOR SYSTEM AIR CONDITIONER, EXTERIOR PIPELINE LINK KL-03N THE MAIN COMPONENTS

1

2

3

4

5

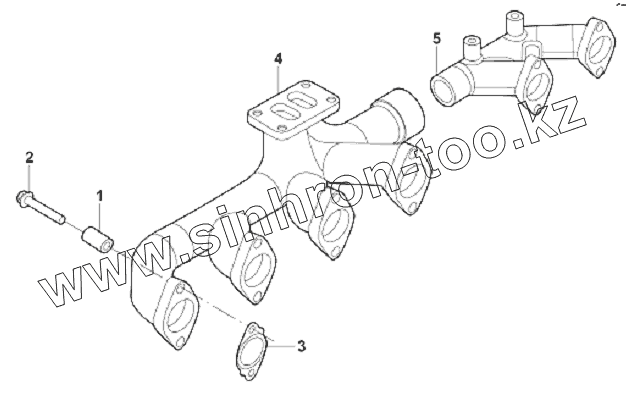

Позиция на иллюстрации	Заводской номер детали		Название детали
1	299005836		Spacer, mounting
2	299005828		Screw, hex flange head cap
3	299005800		Gasket, exhaust manifold
4	299014908		Manifold, exhaust
5	299014342		Manifold, exhaust

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
