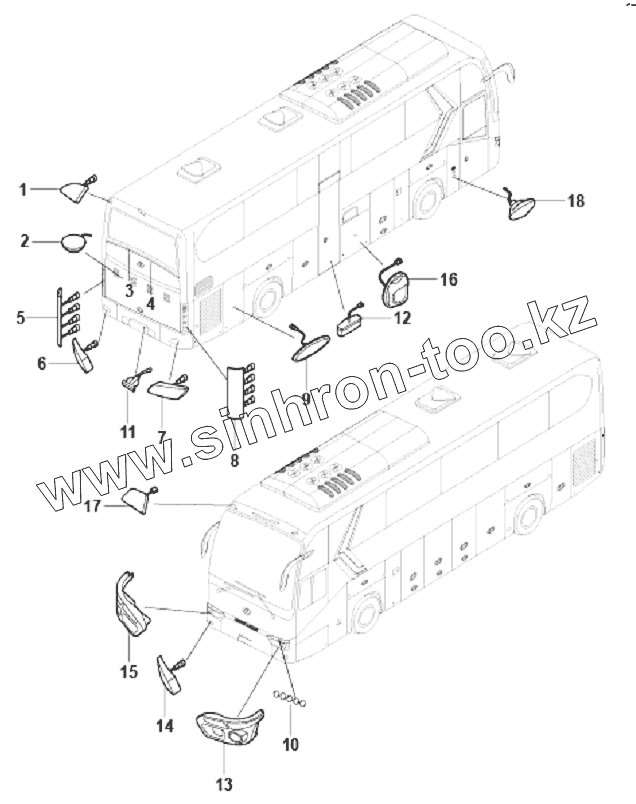

Каталог запасных частей к технике: King Long Автобус XMQ-6129Y. LIGHTING SYSTEM (1)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 236600180 | 236600180 | Rear clearance lamp, rh | |
| 236500240 | 236500240 | Reading lamp, dragoman | |
| 236700470 | 236700470 | License lamp | |
| 236600110 | 236600110 | Front indicator lamp, rh | |
| 236400070 | 236400070 | Front fog lamp, rh | |
| 1 | 236600170 | Rear clearance lamp, lh | |
| 2 | 236500165 | Engine compartment lamp | |
| 3 | 236200100 | Rear high-mounted stop lamp, lh | |
| 4 | 236200110 | Rear high-mounted stop lamp, rh | |
| 5 | 236100780 | Rear combination lamp, lh | |
| 6 | 236400110 | Rear fog lamp with rear reflector, lh | |
| 7 | 236400120 | Rear fog lamp with rear reflector, rh | |
| 8 | 236100770 | Rear combination lamp, rh | |
| 9 | 236600450 | Side signal lamp | |
| 10 | 236700035 | Daytime running light | |
| 11 | 236600020 | License lamp | |
| 12 | 236501490 | Step board lamp | |
| 13 | 236100220 | Combination headlight, lh | |
| 14 | 236400060 | Front fog lamp, lh | |
| 15 | 236100230 | Combination headlight, rh | |
| 16 | 236501460 | Luggage compartment lamp | |
| 17 | 236600100 | Front indicator lamp, lh | |
| 18 | 236300080 | Side steering lamp |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
