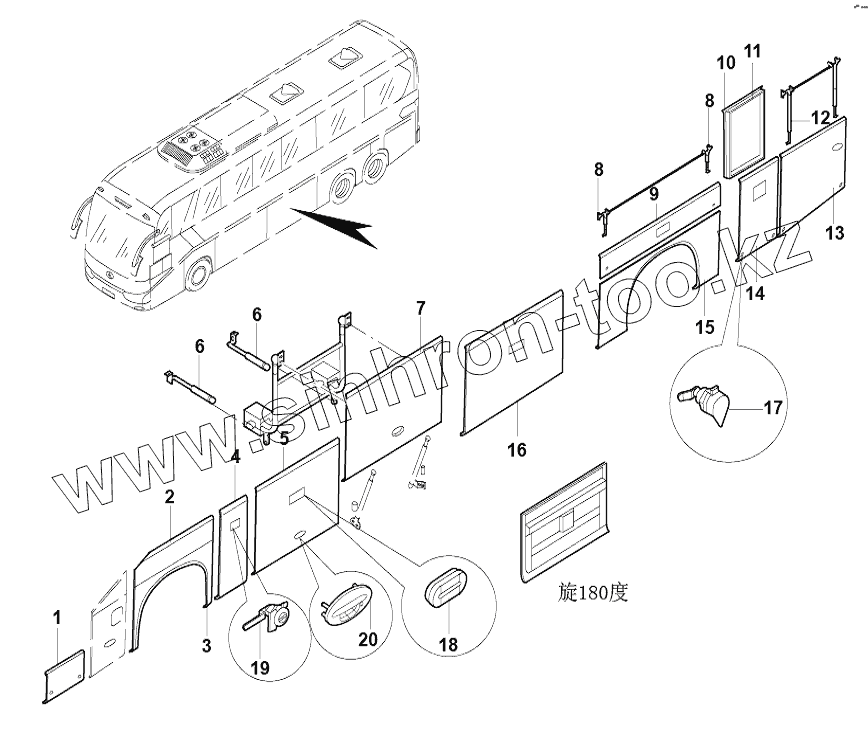

Каталог запасных частей к технике: King Long Автобус XMQ-6129Y. LEFT SIDE BIN GATE
1
2
3
4
5
6
6
7
8
8
9
10
11
12
13
14
15
16
17
18
19
20
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 445000260 | 445000260 | Seal rubber strip | |
| 445000280 | 445000280 | Seal rubber strip | |
| 445000260 | 445000260 | Seal rubber strip | |
| 445000270 | 445000270 | Seal rubber strip | |
| 445000260 | 445000260 | Seal rubber strip | |
| 340600080 | 340600080 | Air spring | |
| 340600230 | 340600230 | Air spring | |
| 445000280 | 445000280 | Seal rubber strip | |
| 445000270 | 445000270 | Seal rubber strip | |
| 445000240 | 445000240 | Seal rubber strip | |
| 445000260 | 445000260 | Seal rubber strip | |
| 340600080 | 340600080 | Air spring | |
| 445000320 | 445000320 | Seal rubber strip | |
| 445000260 | 445000260 | Seal rubber strip | |
| 445000240 | 445000240 | Seal rubber strip | |
| 340600240 | 340600240 | Air spring | |
| 1 | 259202661 | Lower bin gate, driver window | |
| 2 | 259700110 | Upper bin gate, left front wheel | |
| 3 | 259900350 | Wheel cover, left front | |
| 4 | 259202658 | Bin gate, fuel tank | |
| 5 | 259500063 | Luggage bin gate | |
| 6 | 340600250 | Air spring | |
| 7 | 259500064 | Luggage bin gate | |
| 8 | 340600270 | Air spring | |
| 9 | 259202665 | Upper bin gate | |
| 10 | 445000250 | Seal rubber strip | |
| 11 | 445000240 | Seal rubber strip | |
| 12 | 340600080 | Air spring | |
| 13 | 259202663 | Bin gate, left back | |
| 14 | 259202664 | Bin gate, battery | |
| 15 | 259900372 | Wheel cover, left back wheel | |
| 16 | 259100156 | Luggage bin gate | |
| 17 | 259800287 | Lock, simple | |
| 18 | 259800060 | Lock, luggage compartment | |
| 19 | 259800020 | Lock, fuel tank | |
| 20 | 259800390 | Handle |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
