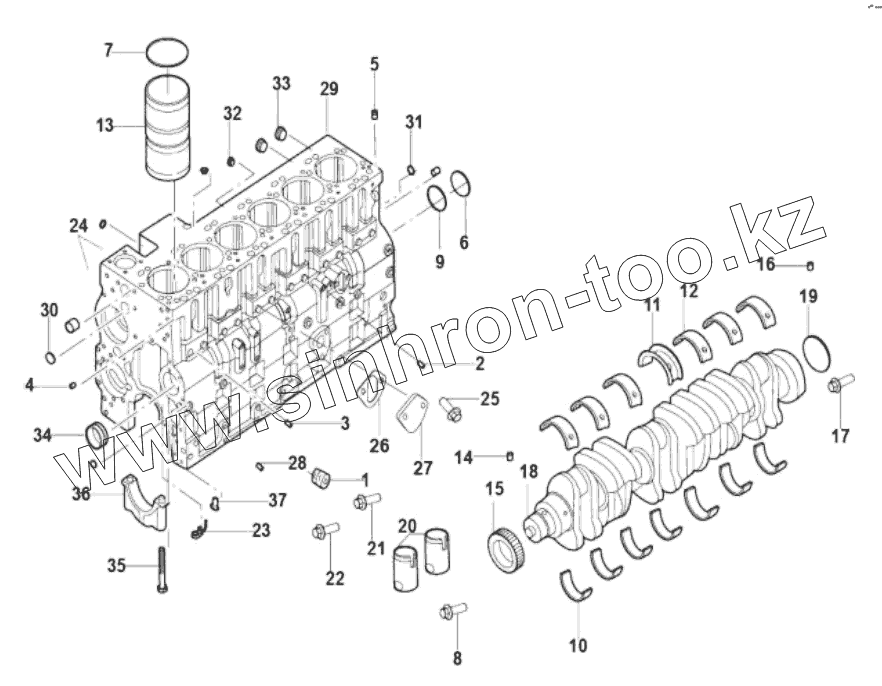

Каталог запасных частей к технике: King Long Автобус XMQ-6129Y. CYLINDER BLOCK

Тип техники

Марка

Модель

Схема

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

Позиция на иллюстрации	Заводской номер детали		Название детали
1	299005663		Plug, pipe
2	299005695		Plug, threaded
3	299005696		Plug, threaded
4	299005702		Dowel, pin
5	299005717		Dowel, pin
6	299005721		Plug, expansion
7	299005740		Seal, rectangular ring
8	299005743		Screw, hex flange head cap
9	299005778		Seal, o ring
10	299005821		Bearing, main
11	299005822		Bearing, main
12	299005823		Bearing, crankshaft thrus
13	299024375		Liner, cylinder
14	299005734		Dowel, pin
15	299005760		Gear, crankshaft
16	299006566		Dowel, pin
17	299014208		Screw, hex flange head cap
18	299014209		Crankshaft, engine
19	299014210		Ring, speed indicator
20	299000064		Tappet, valve
21	299014211		Screw, studded hexagon cap
22	299014212		Screw, studded flange cap
23	299014313		Nozzle, piston cooling
24	299014314		Block, cylinder
25	299001569		Screw, hex flange head cap
26	299001593		Gasket, cover plate
27	299013877		Plate, cover
28	299005935		Guide, tappet
29	299014315		Block, cylinder
30	299005653		Plug, expansion
31	299005661		Plug, expansion
32	299005714		Plug, expansion
33	299005736		Plug, expansion
34	299005837		Bushing
35	299005865		Screw, hex flange head cap
36	299005868		Cap, main bearing
37	299012856		Draincock

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
