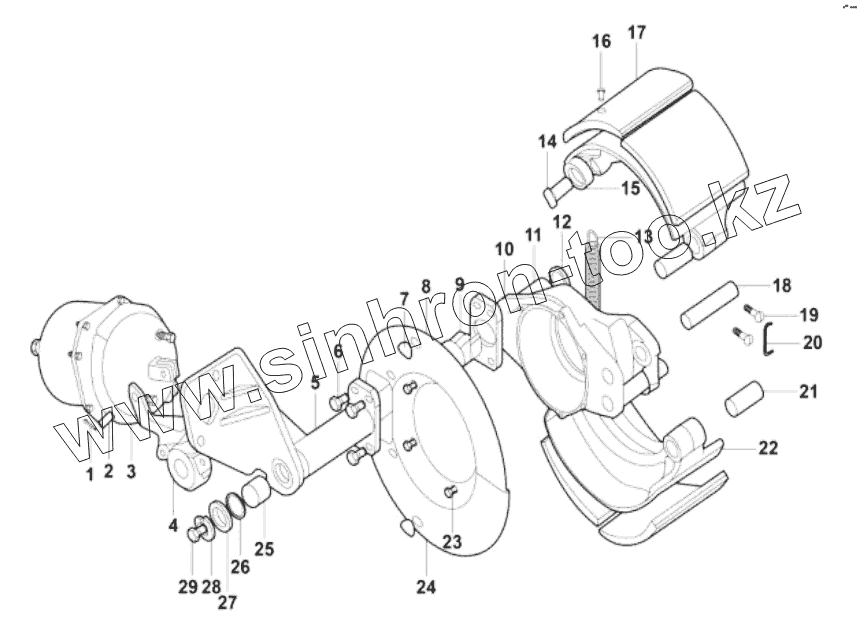

Каталог запасных частей к технике: King Long Автобус XMQ-6129Y. BRAKE ASSY
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 224004815 | 224004815 | Packing leather | |
| 1 | 224002235 | Cotter pin | |
| 2 | 224001468 | Pin | |
| 3 | Spring | Cylindrical spring | |
| 4 | Arm | Rear brake adjusting arm | |
| 5 | Spring | Cylindrical spring | |
| 6 | 224002169 | Bolt | |
| 7 | 224001411 | Hole plug | |
| 8 | 224001497 | Upper dust cover | |
| 9 | Brakecam | Brake cam | |
| 10 | 224001558 | Rear brake plate assy | |
| 11 | 224001475 | Spacer | |
| 12 | 224001472 | Seal assy | |
| 13 | 224001487 | Return spring assy | |
| 14 | 224001412 | Roller shaft | |
| 15 | 224001481 | Roller assy | |
| 16 | 224001417 | Rivet | |
| 17 | 224001519 | Rear brake lining | |
| 18 | 224001498 | Brake shoe spindle | |
| 19 | 224001547 | Screw | |
| 20 | 224002239 | Steel locking wire | |
| 21 | 224001477 | Spacer | |
| 22 | 224001491 | Rear brake shoe | |
| 23 | Screw | Screw plug | |
| 24 | 224001496 | Lower dust cover assy | |
| 25 | 224001474 | Spacer | |
| 26 | 224001473 | Seal assy | |
| 27 | Shim | Separating adjust shim | |
| 28 | 224002127 | Limiting plate | |
| 29 | 224002153 | Bolt | |
| 30 | 224002250 | Grease fitting |
