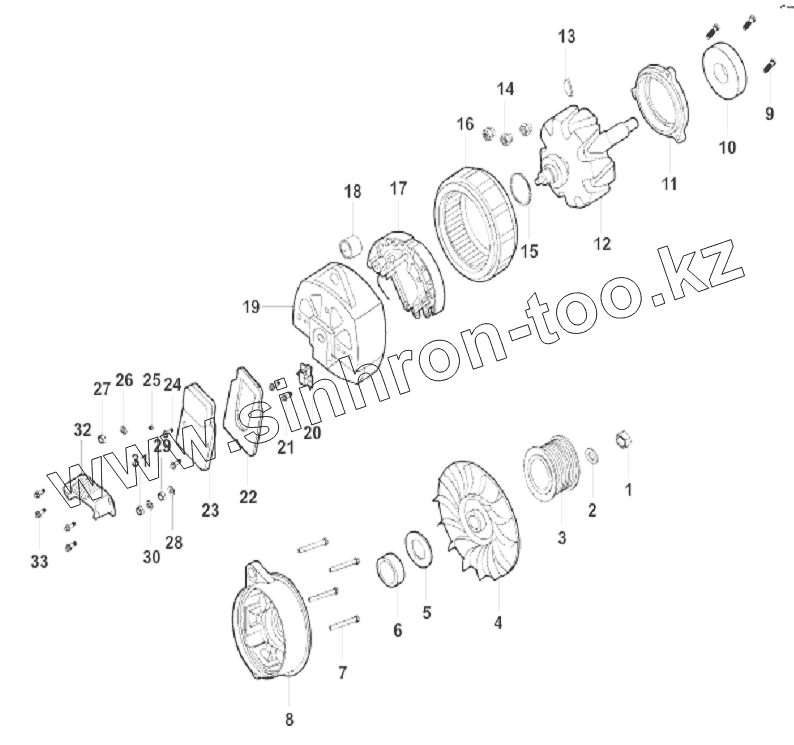

Каталог запасных частей к технике: King Long Автобус XMQ-6129Y. ALTERNATOR FOR AIR CONDITION
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 279400450 | 279400450 | Alternator | |
| 1 | 279000148 | Nut | |
| 2 | 279000242 | Flat washer | |
| 3 | 279000243 | Belt pulley | |
| 4 | 279000244 | Fan | |
| 5 | 279000151 | Washerlocating sleeve | |
| 6 | 279000152 | Locating sleeve, pulley | |
| 7 | 279000153 | Nail | |
| 8 | 279000245 | Front end cap | |
| 9 | 279000155 | Screw, bearing cover | |
| 10 | 279000156 | Front bearing | |
| 11 | 279000157 | Bearing cover | |
| 12 | 279000158 | Rotor assy | |
| 13 | 279000159 | Woodruff key | |
| 14 | 279000175 | Combined nut | |
| 15 | 279000161 | O ring | |
| 16 | 279000233 | Stator assy | |
| 17 | 279000234 | Rectifier components | |
| 18 | 279000165 | Adjusting sleeve | |
| 19 | 279000246 | Rear end cap components | |
| 20 | 279000166 | Brush assembly | |
| 21 | 279000167 | Screw | |
| 22 | 279000247 | Rear guard cover protective pads | |
| 23 | 279000248 | Rear guard cover | |
| 24 | 279000170 | Screw | |
| 25 | 279000249 | Nut | |
| 26 | 279000250 | Spring pad, positive terminal | |
| 27 | 279000251 | Nut, positive terminal | |
| 28 | 279000252 | Flat washer | |
| 29 | 279000175 | Combined nut | |
| 30 | 279000176 | Flat washer, negative terminal | |
| 31 | 279000177 | Combined nut | |
| 32 | 279000107 | Regulator | |
| 33 | 279000179 | Screw |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
