AIR INTAKE SYSTEM

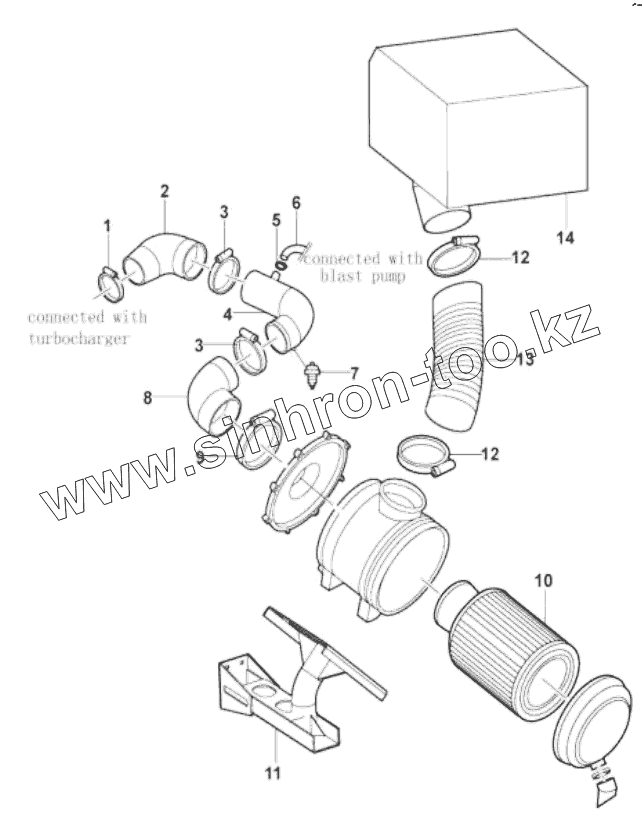

Каталог запасных частей к технике: King Long Автобус XMQ-6129Y. AIR INTAKE SYSTEM
zoom-in
zoom-out
enlarge
shrink
circle-right
circle-left
file-text2
info
cart
Тип техники
Не выбрано
Легковые автомобили
Грузовые автомобили и прицепы
Автобусы
Сельхозтехника
Спецтехника
Двигатели
Мототехника
Марка
Не выбрано
Golden Dragon
Hyundai
Ikarus
Karosa
King Long
Neoplan
Yutong
ZF
АМАЗ
Богдан
ЗИЛ
КАВЗ
Камский автозавод
ЛАЗ
ЛЗГМП
ЛиАЗ
Нефтекамский автозавод
ПАЗ
УралАЗ
Модель
Не выбрано
Автобус XMQ-6127 (2007)
Автобус XMQ-6127J (2010)
Автобус XMQ-6129Y (2010)
Автобус XMQ-6129Y5 (2015)
Автобус XMQ-6800Y (2010)
Схема
>
Не выбрано
ENGINE ASSY ISLE 340.40
FRONT DRIVE ADAPTER
AID, AIR HEATER STARTING
CYLINDER BLOCK
PLUG, PIPE
HOUSING, GEAR
CRANKCASE VENTILATION PARTS
TUBE, CPR WATER
PLUMBING, COO HTR STG AID
ARRANGEMENT, CPR AIR INLE
BEARING, BALL
COMPRESSOR, AIR
DAMPER, VISCOUS VIBRATION
POST-PROCESSING MOUNTING KIT
FUEL RETURN PIPE POSITION
ELECTRONIC ACCESSORIES
THERMOSTAT
ALTERNATOR INSTALLATION
SUPPORT, FRONT ENGINE
FAN DRIVING
FAN DRIVING INSTALLATION
FUEL FILTER
FUEL FILTER PIPE LINE
PLUMBING, FLYWHEEL HOUSING
FUEL INLET DEVICE
FUEL PUMP INSTALLATION
PUMP, FUEL TRANSFER
TUBE, FUEL
FLYWHEEL INSTALLATION
FRONT GEAR HOUSE
COVER INSTALLATION, GEAR
PREHEATING PIPE LINE
CONNECTION, AIR INTAKE
CONNECTION INSTALLATION, AIR INTAKE
INTAKE MANIFOLD
PIPE, AIR TRANSFER
BRACKET, LIFTING
BRACKET INSTALLATION, LIFTING
OIL COOLER
ELEMENT, LUB OIL FILTER
DIPSTICK
PUMP, LUBRICATING OIL
OIL FILLER
OIL FILLER ACCESSORIES
PAN, OIL
OPTIONAL DESIGN
ENGINE CONTROL MODEL INSTALLATION
ENGINE CONTROL MODEL
PERFORMANCE PARTS
HEAD, CYLINDER
TURBOCHARGER
FUEL INJECTOR LINE
ROCKER LEVER
OUTLET PIPE, COOLING LIQUID
SHIELD, HEAT
STARTER INSTALLATION
MANIFOLD, EXHAUST
PLUG, THREADED
TUBE, TUR
COVER, VALVE
CONNECTION, WATER INLET
CONNECTION, WATER OUTLET
PUMP, WATER
TENSIONER, BELT
WATER PUMP DRIVE
HARNESS, ETR CNT MDL WRG
EXH OUT CONNECTIO
MOUNTING COMPONENTS
ENGINE MOUNTING
AIR INTAKE SYSTEM
INTERCOOLER SYSTEM
EXHAUST SYSTEM
COOLING WATER PIPE
COOLING SYSTEM
FUEL SUPPLY SYSTEM
BELT PULLEY & BELT
FAN PULLEY ASSY
CLUTCH
CLUTCH & CONTROL DEVICE
CONTROL DEVICE OF TRANSMISSION
GEARBOX ASSY
GEARBOX HOUSING
GEARBOX HOUSING
GEARBOX HOUSING
INPUT SHAFT
INPUT SHAFT
LAYSHAFT
LAYSHAFT
MAIN SHAFT
MAIN SHAFT
GEAR SHIFT SYSTEM
GEAR SHIFT SYSTEM
GEAR SHIFT HOUSING
SHIFT TURRET
SET OF SPRINGS
CONNECTING PARTS
RETARDER
RETARDER
CLUTCH HOUSING
CLUTCH HOUSING
CLUTCH HOUSING
FRONT AIR SUSPENSION
REAR AIR SUSPENSION
HEIGHT VALVE
PROPELLER SHAFT
FRONT AXLE
FRONT AXLE
TIE ROD
REAR AXLE
REAR AXLE
BRAKE ASSY
WHEEL HUB BRAKE DRAM ASSY
MAIN REDUCER AND BEVEL GEAR DIFFERENTIAL ASSY
WHEEL
STEERING SYSTEM (1)
STEERING SYSTEM (2)
BRAKE PIPE
RETARDER (1)
RETARDER (2)
BRACKET &CONNECTING BOARD
FRONT WALL
LEFT SIDE GLASS
RIGHT SIDE GLASS
LEFT SIDE BIN GATE
RIGHT SIDE BIN GATE
REAR WALL
INNER TRIM (1)
INNER TRIM (2)
LUGGAGE RACK ASSY
LEFT SIDE CLADDING COLUMN
RIGHT SIDE CLADDING COLUMN
FRONT PASSENGER DOOR
CENTRAL PASSENGER DOOR
DOOR PUMP
SEAT AND GUARD RAIL
BODY ACCESSORIES
REARVIEW MIRROR AND WIPER
SLEEPER COMPARTMENT ACCESSORIES
LIGHTING SYSTEM (1)
ELECTRICAL EQUIPMENT (2)
HARNESS, ELECTRICAL COMPONENTS
FUSE BOX
SWITCH CONTROL BOX
ALTERNATOR ASSY
ALTERNATOR FOR AIR CONDITION
INSTRUMENT DESK
SWITCH AND INDICATOR LIGHT
DEFROSTING SYSTEM
COMPRESSOR INSTALLATION
AIR CONDITIONER WIRING HARNESS SKETCH
CONDENSER COMPONENTS
AIR CONDITIONER, EVAPORATOR SYSTEM
AIR CONDITIONER, EXTERIOR PIPELINE LINK
KL-03N THE MAIN COMPONENTS
1
2
3
3
4
5
6
7
8
9
10
11
12
12
13
14
Позиция на иллюстрации
Заводской номер детали
Название детали
211500060
211500060
Air filter assy
1
567711500
Clip
2
360200040
Tube pipe
3
567714600
Clip
4
370200365
Steel pipe, turbocharger air intake
5
567504500
Clip
6
360500010
Tube pipe
7
238300460
Alarm sensors
8
360200200
Tube pipe
9
567719000
Clip
10
211000077
Filter element
11
311500261
Bracket, air filter
12
567523000
Clip
13
417170001
Hose hoop
14
256500316
Adapter box
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
