REAR WALL

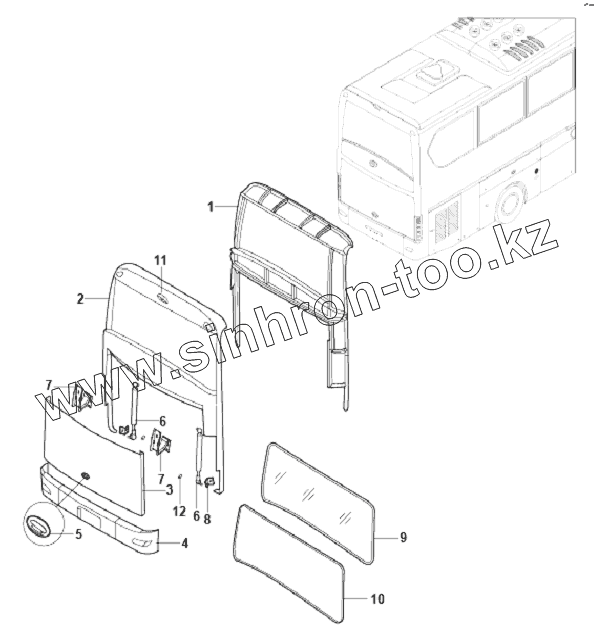

Каталог запасных частей к технике: King Long Автобус XMQ-6129Y5. REAR WALL
zoom-in
zoom-out
enlarge
shrink
circle-right
circle-left
file-text2
info
cart
Тип техники
Не выбрано
Легковые автомобили
Грузовые автомобили и прицепы
Автобусы
Сельхозтехника
Спецтехника
Двигатели
Мототехника
Марка
Не выбрано
Golden Dragon
Hyundai
Ikarus
Karosa
King Long
Neoplan
Yutong
ZF
АМАЗ
Богдан
ЗИЛ
КАВЗ
Камский автозавод
ЛАЗ
ЛЗГМП
ЛиАЗ
Нефтекамский автозавод
ПАЗ
УралАЗ
Модель
Не выбрано
Автобус XMQ-6127 (2007)
Автобус XMQ-6127J (2010)
Автобус XMQ-6129Y (2010)
Автобус XMQ-6129Y5 (2015)
Автобус XMQ-6800Y (2010)
Схема
>
Не выбрано
ENGINE ASSY
ADAPTER, FRONT DRIVE 10-CM-D011
HEATER, INTAKE AIR
BLOCK, CYLINDER 10-CM-A039
PLUMBING, CYL BLK COOLANT
HOUSING, FRONT GEAR
BREATHER, CRANKCASE
PLUMBING, CPR COOLANT
PLUMBING, COO HTR STG AID 10-CM-M075
ARRANGEMENT, CPR AIR INLE 10-CM-N010
CLUTCH, REAR
COMPRESSOR, AIR
DAMPER, VIBRATION
POSTPROCESSING MOUNTING GROUP
THE FUEL RETURN LINE POSITION
ACCESSORIES, ELECTRICAL
THERMOSTAT
MOUNTING, ALTERNATOR
SUPPORT, FRONT ENGINE
DRIVE, FAN
MOUNTING, FAN DRIVE
LOCATION, FUEL FILTER
PLUMBING, FUEL FILTER
HOUSING, FLYWHEEL
PLUMBING, FLYWHEEL HOUSING
OIL INLET DEVICE, FUEL
MOUNTING, FUEL PUMP
FUEL PUMP
PUMP, FUEL TRANSFER
FUEL DELIVERY ACCESSORIES
PLUMBING, FUEL
MOUNTING, FLYWHEEL
FLYWHEEL
COVER, FRONT GEAR
MOUNTING, GEAR COVER
PLUMBING, HEATER
CONNECTION, AIR INTAKE
MOUNTING, AIR INTAKE CONNECTION
MANIFOLD, AIR INTAKE
VENT, CONNECTION
ARRANGEMENT, LIFTING
MOUNTING, LIFTING BRACKET
COOLER, ENGINE OIL
FILTER, LUBRICATING OIL
GAUGE, OIL LEVEL
PUMP, LUBRICATING OIL
ARRANGEMENT, OIL FILL
COVER, HAND HOLE
PAN, OIL
OPTIONAL DESIGN
MOUNTING, ENGINE CONTRO MODULE
ENGINE CONTRO MODULE
PARTS, PERFORMANCE
HEAD, CYLINDER
TURBOCHARGER
PLUMBING, INJECTOR
LEVER, ROCKER
EXHAUSTING PIPE , ENGINE COOLING LIQUID
SHIELD, HEAT
MOUNTING, STARTING
MOTOR, STARTING
MANIFOLD, EXHAUST
COOLERTOR, CONVERTER
PLUMBING, TURBOCHARGER
COVER, VALVE
CONNECTION, WATER INLET TUBE
CONNECTION, WATER OUTLET TUBE
PUMP, WATER
TENSIONER BELT
PULLEY, WATER PUMP
WIRING HARNESS, ELECTRONIC CONTRO MODULE
CONNECTION, EXHAUST OUTLE
ENGINE MOUNTING
AIR INTAKE SYSTEM
INTERCOOLER
COOLING SYSTEM
COOLIG WATER PIPE
AIR EXHAUST SYSTEM
FUEL SUPPLY SYSTEM
BELT
CLUTCH AND MANIPULATE
CLUTCH
CONTROL DEVICE OF TRANSMISSION
TRANSMISSION ASSY
OUTPUT FLANGE (WITH RETARDER)
GEAR BOX HOUSING ASSY
INPUT LAYSHFT REVERSE ASSY
MAIN SHAFT ASSY
SPEEDMETER COVER ASSY
SELECTOR MECHANISM ASSY
GEARSHAFT COVER AND ROTRY SELECTOR MECHANISM
RETARDER I
RETARDER II
RETARDER III
RETARDER IV
RETARDER BAY
FRONT SUSPENSION
REAR AIR SUSPENSION
HEIGHT VALVE
FRONT AXLE ASSY
FRONT AXLE
STEERING TIE ROD
REAR AXLE
REAR AXLE HOUSING AND HALF AXLE AND WHEEL END 24ZS39Y-00005
REAR AXLE FINAL DRIVE AND DIFFERENTIAL ASSY
PROPELLER SHAFT ASSEMBLY
WHEEL
STEERING SYSTEM (1)
STEERING SYSTEM (2)
BRAKE PIPELINE (1)
FRONT WALL
LEFT SIDE WALL
RIGHT SIDE WALL
LEFT SIDE BIN GATE
RIGHT SIDE BIN GATE
REAR WALL
FRONT PASSENGER DOOR
DOOR PUMP
FRONT PASSENGER DOOR
INNER TRIM (1)
INNER TRIM (2)
INNER TRIM (3)
INNER TRIM
INNER TRIM
SEAT AND GUARD RAIL
BODY ACCESSORIES
SLEEPER COMPARTMENT ACCESSORIES
WIPER AND REARVIEW MIRROR
LIGHTING SYSTEM
ELECTRICAL EQUIPMENT (2)
CENTRAL ELECTRIC CASE ZH203H12
WIRING HARNESS, ELECTRICAL PARTS
SWITCH CONTROL BOX
ALTERNATOR, AIR-CONDITION
ALTERNATOR 279400010
DASH BOARD
SWITCH AND INDICATOR LIGHT
WATER HEATING AND DEFROSTING SYSTEM
AIR CONDITIONER, WIRING HARNESS SKETCH KL-XY
CONDENSER COMPONENTS KL-XY
AIR CONDITIONER, EVAPORATOR SYSTEM KL-XY
AIR CONDITIONER, EXTERIOR PIPELINE LINK KL-XY
1
2
3
4
5
6
6
7
7
8
9
10
11
12
Позиция на иллюстрации
Заводской номер детали
Название детали
1
256100175
Framework, rear wall
2
256200165
Exterior skin, rear wall
3
256400170
Rear bin gate assy
4
256600200
Bumper, rear
5
259800170
Lock, bin gate
6
340600130
Air spring
7
259800290
Gemel, rear bin gate
8
256400180
Limit block
9
256300147
Glass
10
445000180
Sealing strip
11
256200480
Protective cover, reversing monitor
12
256400190
Limit block
