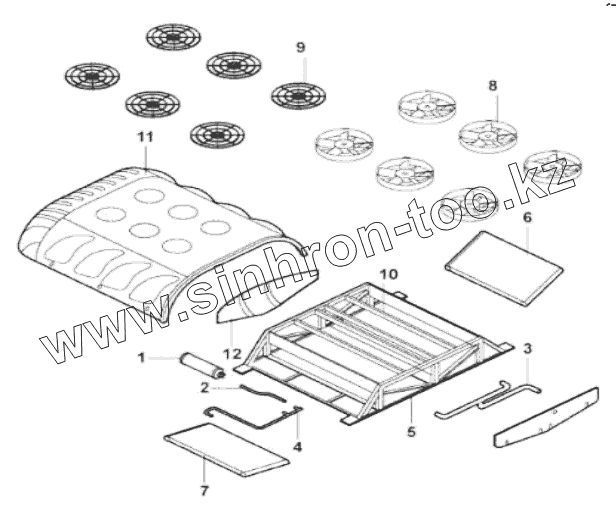

Каталог запасных частей к технике: King Long Автобус XMQ-6129Y5. CONDENSER COMPONENTS KL-XY

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано Golden Dragon Hyundai Ikarus Karosa King Long Neoplan Yutong ZF АМАЗ Богдан ЗИЛ КАВЗ Камский автозавод ЛАЗ ЛЗГМП ЛиАЗ Нефтекамский автозавод ПАЗ УралАЗ

Модель Не выбрано Автобус XMQ-6127 (2007) Автобус XMQ-6127J (2010) Автобус XMQ-6129Y (2010) Автобус XMQ-6129Y5 (2015) Автобус XMQ-6800Y (2010)

Схема > Не выбрано ENGINE ASSY ADAPTER, FRONT DRIVE 10-CM-D011 HEATER, INTAKE AIR BLOCK, CYLINDER 10-CM-A039 PLUMBING, CYL BLK COOLANT HOUSING, FRONT GEAR BREATHER, CRANKCASE PLUMBING, CPR COOLANT PLUMBING, COO HTR STG AID 10-CM-M075 ARRANGEMENT, CPR AIR INLE 10-CM-N010 CLUTCH, REAR COMPRESSOR, AIR DAMPER, VIBRATION POSTPROCESSING MOUNTING GROUP THE FUEL RETURN LINE POSITION ACCESSORIES, ELECTRICAL THERMOSTAT MOUNTING, ALTERNATOR SUPPORT, FRONT ENGINE DRIVE, FAN MOUNTING, FAN DRIVE LOCATION, FUEL FILTER PLUMBING, FUEL FILTER HOUSING, FLYWHEEL PLUMBING, FLYWHEEL HOUSING OIL INLET DEVICE, FUEL MOUNTING, FUEL PUMP FUEL PUMP PUMP, FUEL TRANSFER FUEL DELIVERY ACCESSORIES PLUMBING, FUEL MOUNTING, FLYWHEEL FLYWHEEL COVER, FRONT GEAR MOUNTING, GEAR COVER PLUMBING, HEATER CONNECTION, AIR INTAKE MOUNTING, AIR INTAKE CONNECTION MANIFOLD, AIR INTAKE VENT, CONNECTION ARRANGEMENT, LIFTING MOUNTING, LIFTING BRACKET COOLER, ENGINE OIL FILTER, LUBRICATING OIL GAUGE, OIL LEVEL PUMP, LUBRICATING OIL ARRANGEMENT, OIL FILL COVER, HAND HOLE PAN, OIL OPTIONAL DESIGN MOUNTING, ENGINE CONTRO MODULE ENGINE CONTRO MODULE PARTS, PERFORMANCE HEAD, CYLINDER TURBOCHARGER PLUMBING, INJECTOR LEVER, ROCKER EXHAUSTING PIPE , ENGINE COOLING LIQUID SHIELD, HEAT MOUNTING, STARTING MOTOR, STARTING MANIFOLD, EXHAUST COOLERTOR, CONVERTER PLUMBING, TURBOCHARGER COVER, VALVE CONNECTION, WATER INLET TUBE CONNECTION, WATER OUTLET TUBE PUMP, WATER TENSIONER BELT PULLEY, WATER PUMP WIRING HARNESS, ELECTRONIC CONTRO MODULE CONNECTION, EXHAUST OUTLE ENGINE MOUNTING AIR INTAKE SYSTEM INTERCOOLER COOLING SYSTEM COOLIG WATER PIPE AIR EXHAUST SYSTEM FUEL SUPPLY SYSTEM BELT CLUTCH AND MANIPULATE CLUTCH CONTROL DEVICE OF TRANSMISSION TRANSMISSION ASSY OUTPUT FLANGE (WITH RETARDER) GEAR BOX HOUSING ASSY INPUT LAYSHFT REVERSE ASSY MAIN SHAFT ASSY SPEEDMETER COVER ASSY SELECTOR MECHANISM ASSY GEARSHAFT COVER AND ROTRY SELECTOR MECHANISM RETARDER I RETARDER II RETARDER III RETARDER IV RETARDER BAY FRONT SUSPENSION REAR AIR SUSPENSION HEIGHT VALVE FRONT AXLE ASSY FRONT AXLE STEERING TIE ROD REAR AXLE REAR AXLE HOUSING AND HALF AXLE AND WHEEL END 24ZS39Y-00005 REAR AXLE FINAL DRIVE AND DIFFERENTIAL ASSY PROPELLER SHAFT ASSEMBLY WHEEL STEERING SYSTEM (1) STEERING SYSTEM (2) BRAKE PIPELINE (1) FRONT WALL LEFT SIDE WALL RIGHT SIDE WALL LEFT SIDE BIN GATE RIGHT SIDE BIN GATE REAR WALL FRONT PASSENGER DOOR DOOR PUMP FRONT PASSENGER DOOR INNER TRIM (1) INNER TRIM (2) INNER TRIM (3) INNER TRIM INNER TRIM SEAT AND GUARD RAIL BODY ACCESSORIES SLEEPER COMPARTMENT ACCESSORIES WIPER AND REARVIEW MIRROR LIGHTING SYSTEM ELECTRICAL EQUIPMENT (2) CENTRAL ELECTRIC CASE ZH203H12 WIRING HARNESS, ELECTRICAL PARTS SWITCH CONTROL BOX ALTERNATOR, AIR-CONDITION ALTERNATOR 279400010 DASH BOARD SWITCH AND INDICATOR LIGHT WATER HEATING AND DEFROSTING SYSTEM AIR CONDITIONER, WIRING HARNESS SKETCH KL-XY CONDENSER COMPONENTS KL-XY AIR CONDITIONER, EVAPORATOR SYSTEM KL-XY AIR CONDITIONER, EXTERIOR PIPELINE LINK KL-XY

1

2

3

4

5

6

7

8

9

10

11

12

Позиция на иллюстрации	Заводской номер детали		Название детали
1	281000121		Receiver
2	281000286		Connecting pipe , liquid outlet 2
3	281001061		Air intake pipe subassembly
4	281000285		Connecting pipe , liquid outlet 1
5	281002079		Condenser bracket
6	281001054		Condenser cone
7	281001053		Condenser cone
8	281000056		Condenser fan
9	281000642		Condenser fan cover
10	281001147		Cover plate, condenser
11	281001147		Cover plate, condenser
12	281001563		Condenser fan cover

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
