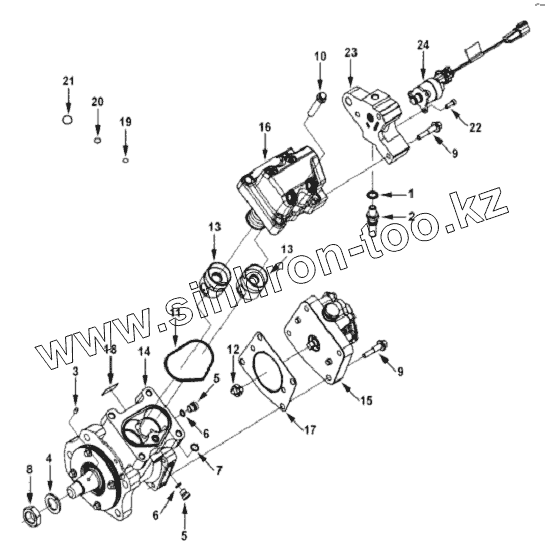

Каталог запасных частей к технике: King Long Автобус XMQ-6127J. FUEL PUMP
1
2
3
4
5
5
6
6
7
8
9
9
10
11
12
13
13
14
15
16
17
18
19
20
21
22
23
24
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 4903462 | 4903462 | Pump, Fuel | |
| 3973228 | 3973228 | Assembly, Fuel Pump | |
| 4903466 | 4903466 | Adapter, Fuel Pump | |
| 1 | 3963990 | Washer, Sealing | |
| 2 | 3969822 | Connection, Adapter | |
| 3 | 3329899 | Dowel, Pin | |
| 4 | 3330252 | Washer, Spring | |
| 5 | 3678923 | Plug | |
| 5 | 3678924 | Plug | |
| 6 | 3678925 | O sealing ring | |
| 7 | 3867640 | O sealing ring | |
| 8 | 3926593 | Nut, Regular Hexagon Jam | |
| 9 | 3928873 | Screw, Hex Flange Head Cap | |
| 10 | 3946085 | Bolt | |
| 11 | 4010636 | Seal, Fuel Pump Body | |
| 12 | 4061755 | Hub, Accessory Drive | |
| 13 | 4076671 | Tappet, Pump | |
| 14 | 4088604 | Body, Fuel Pump | |
| 15 | 4088866 | Pump, Fuel | |
| 16 | 4902732 | Head, Fuel Pump | |
| 17 | 4902780 | Gasket, Cover Plate | |
| 18 | 4903291 | Tag, Identificati | |
| 19 | 4903463 | Sealing ring | |
| 20 | 4903464 | Sealing ring | |
| 21 | 4903465 | Sealing ring | |
| 22 | 4088595 | Screw, Socket Head Cap | |
| 23 | 4903467 | Adapter, Fuel Pump | |
| 24 | 4903523 | Actuator, Etr Fuel Control |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
