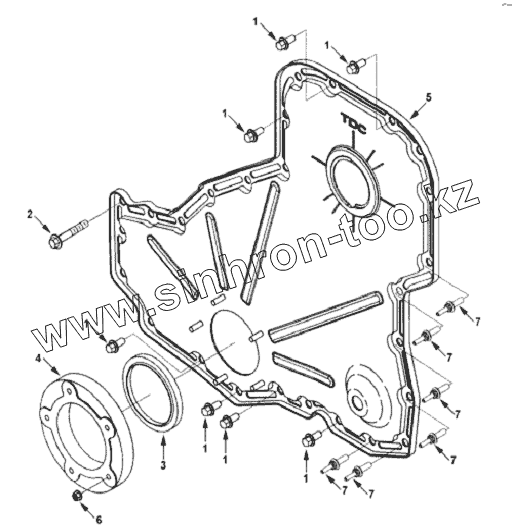

FRONT GEAR HOUSE COVER
Каталог запасных частей к технике: King Long Автобус XMQ-6127J. FRONT GEAR HOUSE COVER
zoom-in
zoom-out
enlarge
shrink
circle-right
circle-left
file-text2
info
cart
Тип техники
Не выбрано
Легковые автомобили
Грузовые автомобили и прицепы
Автобусы
Сельхозтехника
Спецтехника
Двигатели
Мототехника
Марка
Не выбрано
Golden Dragon
Hyundai
Ikarus
Karosa
King Long
Neoplan
Yutong
ZF
АМАЗ
Богдан
ЗИЛ
КАВЗ
Камский автозавод
ЛАЗ
ЛЗГМП
ЛиАЗ
Нефтекамский автозавод
ПАЗ
УралАЗ
Модель
Не выбрано
Автобус XMQ-6127 (2007)
Автобус XMQ-6127J (2010)
Автобус XMQ-6129Y (2010)
Автобус XMQ-6129Y5 (2015)
Автобус XMQ-6800Y (2010)
Схема
>
Не выбрано
CUMMINS ENGINE SET, UPPER ENGINE GSKT ISL8.9E5280B (21944847)
CUMMINS ENGINE SET, UPPER ENGINE GSKT ISL8.9E5280B (21944847)
SET, LOWER ENGINE GSKT
SET, LOWER ENGINE GSKT
FRONT DRIVE ADAPTER
AIR HEATER STARTING AID
NAMEPLATE
CYLINDER
CRANKSHAFT ASSEMBLY
CYLINDER LINER
PISTON COOLING NOZZLE
VALVE PUSH ROD
CYLINDER BLK COOLANT PLUMB
CRANKCASE RESPIRATOR
CPR COOLANT PLUMBINT
AIR COMPRESSOR DIS PLUMBIN
COOLANT HEATER STARTING AI
CPR AIR INLET ARRANGEMENT
AIR COMPRESSOR
SHOCK ABSORBER
THERMOSTAT
CHARGER INSTALLATION
ENGINE FRONT BRACKET
FAN DRIVING DEVICE
FAN DRIVE MOUNTING
FUEL FILTER PIPE
FUEL FILTER
FLYWHEEL HOUSE
FUEL INLET FITTING
FUEL PUMP MOUNTING
FUEL PUMP
FUEL SYSTEM ACCESSORIES
FUEL SUPPLY PUMP
FUEL PIPE
FLYWHEEL
MOUNTING, FLYWHEEL
FRONT GEAR HOUSE COVER
GEAR COVER MOUNTING
FRONT GEAR HOUSE COVER
CABIN HEATER PLUMBING
INTAKE PIPE JOINT
INTAKE CONNECTION MOUNTING
AIR INTAKE MANIFOLD
PNEUMATIC TUBE JOINT
LIFTING ARRANGEMENT
LIFTING BRACKET MOUNTING
ENGINE OIL COOLER
OIL FILTER
OIL LEVEL GAUGE
LUBRICATING OIL
OIL PUMP
OIL FILL ARRANGEMENT
CYLINDER COVER
OIL SUMP
ENG CNT MODULE PLUMBING
ENGINE CONTROL MODULE
CAM SHAFT
INJECTOR
CONNECTING ROD & PISTON
TURBO-CHARGER
TURBO-CHARGER
INJECTOR PLUMBING
CYLINDER HEAD
ROCKER ARM
RAD PLUMBING CONNECTION
EXHAUST MANIFOLD
TORQUE CONVERTER OIL COOLE
VALVE COVER
CORROSION RESISTOR
WATER INTAKE CONNECTOR
WATER OUTLET CONNECTOR
PUMP,WATER
BELT TENSIONER
WATER PUMP DRIVE
ENG CNT WIRING HARNESS
EXHAUST OUTLET CONNECTION
ENGINE MOUNTING
AIR INTAKE SYSTEM
AIR EXHAUST PIPE
COOLING SYSTEM
COOLING WATER PIPE
INTERCOOLER SYSTEM
UREA SYSTEM
FUEL SUPPLY SYSTEM
FRONT AIR SUSPENSION JR-75F-01-20
REAR AIR SUSPENSION JR-130R-01-35
FRONT AXLE 30ZDS08F-00005
TIE ROD 33ZDS01C-03050
REAR AXLE 24ZS19H-00005-B
FINAL REDUCTION GEAR AND DIFFERENTIAL ASSY 2402ZS08Z-010-B
PROPELLER SHAFT ASSEMBLY
WHEEL SYSTEM
STEERING SYSTEM (1)
STEERING SYSTEM (2)
BRAKE SYSTEM
BRAKE SYSTEM
FRONT WALL
RIGHT SIDE GLASS
LEFT SIDE GLASS
RIGHT SIDE BIN GATE
LEFT SIDE BIN GATE
REAR WALL
FRONT PASSENGER DOOR
EXIT DOOR
REARVIEW MIRROR AND WIPER
INNER TRIM (1)
INNER TRIM (2)
INNER TRIM (3)
INNER TRIM (4)
INNER TRIM (5)
INNER TRIM (6)
RIGHT SIDE CLAD COLUMN
LEFT SIDE CLAD COLUMN
ELECTRICAL EQUIPMENT (1)
ELECTRICAL EQUIPMENT (2)
INSTRUMENT DESK
ELECTRICAL UNIT
WRING HARNESS
SWITCH CONTROL BOX
SWITCH AND INDICATOR LIGHT
AIR CONDITIONER, WIRING HARNESS SKETCH KT-SIATE-SAT(X-B)
AIR CONDITIONER, CONDENSER SYSTEM KT-SIATE-SAT(X-B)
AIR CONDITIONER, EVAPORATOR SYSTEM
AIR CONDITIONER, EXTERIOR PIPELINE LINK
WATER HEATER AND DEFROSTER SYSTEM
ASSEMBLY GROUP OVERVIEW
6HP504C, EST 146
ASSEMBLY GROUP OVERVIEW
CONNECTION
PERIPHERAL EQUIPMENT
GEARBOX HOUSING
COVER PLATE
RETARDER
GEARBOX
COUPLING
BRAKE
BRAKE
BRAKE
OUTPUT
SHIFT CONTROL
DIPSTICK PARTS
CONVERTER
HEAT EXCHANGER
1
1
1
1
1
1
1
2
3
4
5
6
7
7
7
7
7
7
Позиция на иллюстрации
Заводской номер детали
Название детали
1
3900631
Screw, Hex Flange Head
2
3926863
Screw, Hex Flange Head Cap
3
3942535
Seal, Oil
3
3921927
Seal, Oil
4
3941786
Carrier, Seal
5
3958112
Cover, Gear
6
4946714
Locking nut
7
5261712
Bolt
