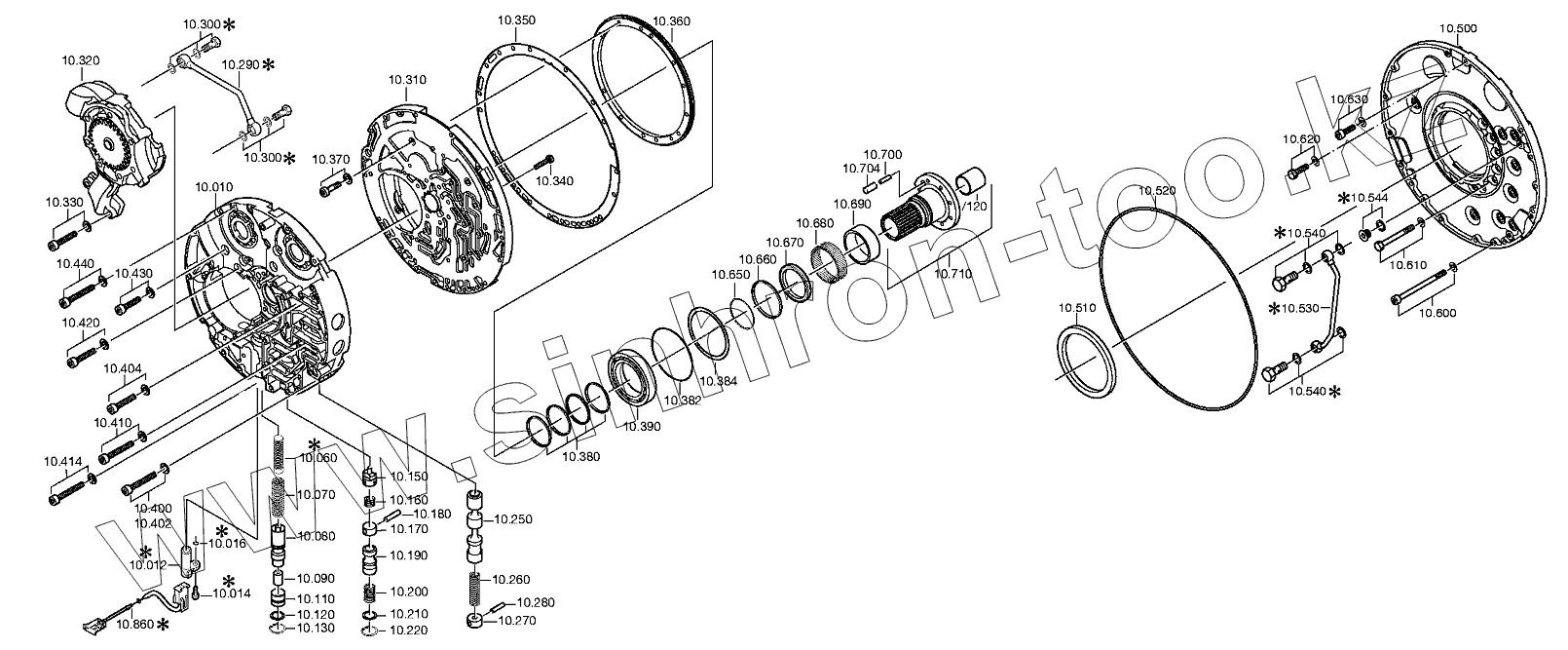

Каталог запасных частей к технике: King Long Автобус XMQ-6127J. COVER PLATE
10
70
80
90
110
120
130
150
160
170
180
190
200
210
220
250
260
270
280
310
320
330
330
340
340
350
360
370
370
370
380
382
384
390
400
400
400
402
402
402
404
404
404
410
410
410
414
414
414
420
420
420
430
430
430
440
440
440
500
510
510
520
530
540
540
540
540
540
600
600
600
610
610
610
620
620
620
630
630
630
650
660
670
680
690
700
704
710
710.120
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 10 | 4149.210.027 | Control insert | |
| 70 | 0732.042.780 | Comprspring | |
| 80 | 4149.310.063 | Piston | |
| 90 | 4149.310.062 | Piston | |
| 110 | 4149.310.064 | Bush | |
| 120 | 0730.004.383 | Washer | |
| 130 | 0630.502.015 | Retaining ring | |
| 150 | 4139.310.041 | Piston | |
| 160 | 0732.041.125 | Comprspring | |
| 170 | 4139.310.018 | Spacer ring | |
| 180 | 0631.306.117 | Cylindrical pin | |
| 190 | 4139.310.072 | Piston | |
| 200 | 0732.041.102 | Comprspring | |
| 210 | 0630.007.001 | Washer | |
| 220 | 0630.502.014 | Retaining ring | |
| 250 | 4149.310.025 | Piston | |
| 260 | 0732.042.236 | Comprspring | |
| 270 | 4139.310.017 | Spacer ring | |
| 280 | 0631.306.117 | Cylindrical pin | |
| 310 | 4149.210.014 | Oil feedflange | |
| 320 | 4182.210.004 | Primary pump | |
| 330 | 0636.101.356 | Cap screw | |
| 340 | TORXSCREW | Torx screw | |
| 340 | 0736.617.075 | Torx screw | |
| 350 | 4182.310.004 | Intermediate sheet | |
| 360 | 4182.320.001 | Thrust ring | |
| 370 | 0636.102.207 | Cap screw | |
| 370 | 0630.003.006 | Washer | |
| 380 | 0734.401.251 | Piston ring | |
| 382 | 0730.112.941 | Washer | |
| 384 | 0634.314.358 | O-ring | |
| 390 | 0750.116.391 | Ball bearing | |
| 400 | 0636.101.602 | Cap screw | |
| 400 | 0630.003.006 | Washer | |
| 402 | 0636.101.663 | Cap screw | |
| 402 | 0630.003.006 | Washer | |
| 404 | 0636.101.602 | Cap screw | |
| 404 | 0630.003.006 | Washer | |
| 410 | 0636.101.720 | Cap screw | |
| 410 | 0630.003.006 | Washer | |
| 414 | 0636.101.720 | Cap screw | |
| 414 | 0630.003.006 | Washer | |
| 420 | 0636.101.694 | Cap screw | |
| 420 | 0630.003.006 | Washer | |
| 430 | 0636.101.685 | Cap screw | |
| 430 | 0630.003.006 | Washer | |
| 440 | 0636.101.709 | Cap screw | |
| 440 | 0630.003.006 | Washer | |
| 500 | 4149.310.283 | Cover plate | |
| 510 | 0750.111.044 | Shaft seal | |
| 520 | 0634.313.146 | O-ring | |
| 530 | 4149.210.005 | Pipe | |
| 540 | 0637.835.021 | Union screw | |
| 540 | 0634.801.015 | Sealing ring | |
| 600 | 0636.115.159 | Cap screw | |
| 600 | 0634.803.003 | Sealing ring | |
| 610 | 0636.011.764 | Hexagon bolt | |
| 610 | 0634.803.003 | Sealing ring | |
| 620 | 0636.015.299 | Hexagon bolt | |
| 620 | 0634.803.003 | Sealing ring | |
| 630 | 0636.101.356 | Cap screw | |
| 630 | 0634.803.003 | Sealing ring | |
| 650 | 0630.513.133 | Snap ring | |
| 660 | 0734.401.080 | Piston ring | |
| 670 | 4128.303.012 | Piston support | |
| 680 | 0750.115.517 | Needle cage | |
| 690 | 0635.295.034 | Innner ring | |
| 700 | 0631.329.320 | Slotpin | |
| 704 | 0631.329.319 | Slotpin | |
| 710 | 4149.210.026 | Stator shaft | |
| 710.120 | 4139.210.082 | Bush |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
