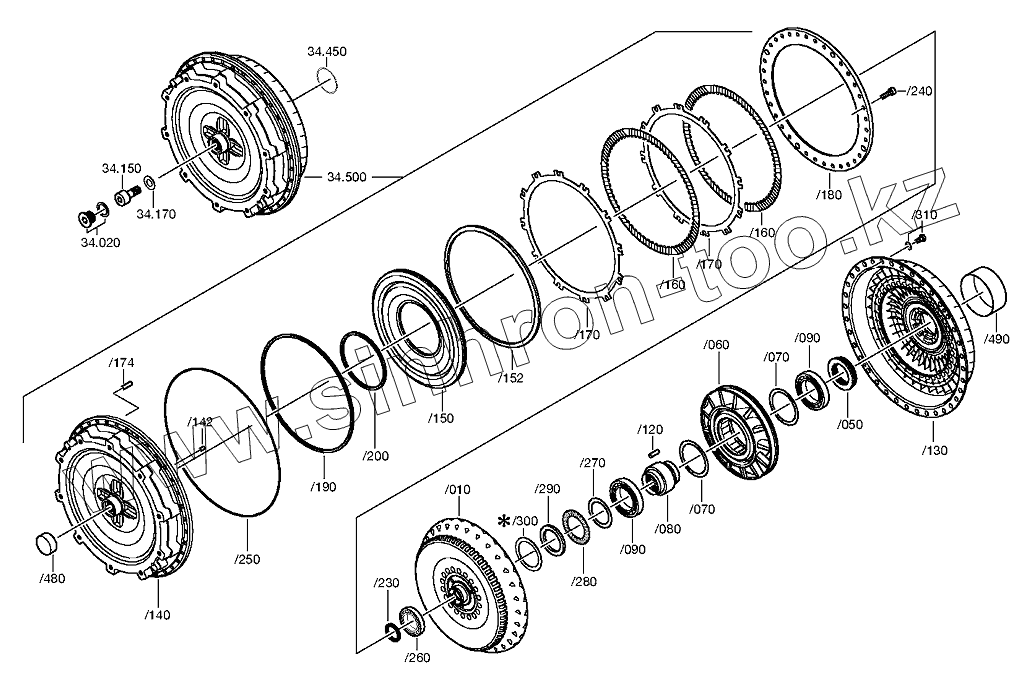

Каталог запасных частей к технике: King Long Автобус XMQ-6127J. CONVERTER
20
20
150
150
170
450
450
450
500
500.10
500.50
500.60
500.70
500.70
500.80
500.90
500.90
500.120
500.130
500.140
500.142
500.150
500.152
500.160
500.160
500.170
500.170
500.170
500.170
500.170
500.174
500.180
500.190
500.200
500.230
500.240
500.250
500.260
500.270
500.280
500.290
500.310
500.310
500.480
500.490
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 20 | 0636.302.099 | Screw plug | |
| 20 | 0634.801.227 | Sealing ring | |
| 150 | 0736.101.046 | Cap screw | |
| 170 | 0730.005.601 | Washer | |
| 170 | 0730.005.600 | Washer | |
| 170 | 0730.005.599 | Washer | |
| 170 | 0730.005.598 | Washer | |
| 170 | 0730.005.597 | Washer | |
| 170 | 0730.005.596 | Washer | |
| 170 | 0730.005.595 | Washer | |
| 170 | 0730.005.594 | Washer | |
| 170 | 0730.005.593 | Washer | |
| 170 | 0730.005.592 | Washer | |
| 450 | 0730.003.074 | Washer | |
| 450 | 0730.106.997 | Washer | |
| 450 | 0730.106.996 | Washer | |
| 500 | 0501.007.286 | Converter | |
| 500.10 | 0501.214.189 | Turbine wheel | |
| 500.50 | 0735.368.102 | Axroller bear | |
| 500.60 | 4166.236.138 | Stator | |
| 500.70 | 0635.290.051 | Axial washer | |
| 500.80 | 4166.336.059 | Free wheel ring | |
| 500.90 | 0635.330.035 | Ball bearing | |
| 500.120 | 0735.470.101 | Roller | |
| 500.130 | 0501.317.930 | Pump wheel | |
| 500.140 | 0501.320.298 | Circuit cover | |
| 500.142 | 0631.306.158 | Cylindrical pin | |
| 500.150 | 0501.320.302 | Plate piston | |
| 500.152 | 0750.106.074 | Cup spring | |
| 500.160 | 0501.213.150 | Iclutch disc | |
| 500.170 | 0501.320.305 | Oclutch disc | |
| 500.170 | 0501.320.306 | Oclutch disc | |
| 500.174 | 0501.322.005 | Cylindrical pin | |
| 500.180 | 0501.321.930 | End shim | |
| 500.190 | 0501.320.312 | Sealing ring | |
| 500.200 | 0501.320.311 | Sealing ring | |
| 500.230 | 0634.402.140 | R-ring | |
| 500.240 | 0636.101.192 | Cap screw | |
| 500.250 | 0634.313.840 | O-ring | |
| 500.260 | 0750.116.266 | Ball bearing | |
| 500.270 | 0635.290.050 | Axial washer | |
| 500.280 | 0635.900.523 | Axneedle cage | |
| 500.290 | 0635.900.521 | Casing disc | |
| 500.310 | 0636.101.833 | Cap screw | |
| 500.480 | 0501.317.956 | Protecting cap | |
| 500.490 | 0501.317.957 | Protecting cap |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
