Каталог запасных частей к технике: King Long Автобус XMQ-6127J. BRAKE SYSTEM

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано Golden Dragon Hyundai Ikarus Karosa King Long Neoplan Yutong ZF АМАЗ Богдан ЗИЛ КАВЗ Камский автозавод ЛАЗ ЛЗГМП ЛиАЗ Нефтекамский автозавод ПАЗ УралАЗ

Модель Не выбрано Автобус XMQ-6127 (2007) Автобус XMQ-6127J (2010) Автобус XMQ-6129Y (2010) Автобус XMQ-6129Y5 (2015) Автобус XMQ-6800Y (2010)

Схема > Не выбрано CUMMINS ENGINE SET, UPPER ENGINE GSKT ISL8.9E5280B (21944847) CUMMINS ENGINE SET, UPPER ENGINE GSKT ISL8.9E5280B (21944847) SET, LOWER ENGINE GSKT SET, LOWER ENGINE GSKT FRONT DRIVE ADAPTER AIR HEATER STARTING AID NAMEPLATE CYLINDER CRANKSHAFT ASSEMBLY CYLINDER LINER PISTON COOLING NOZZLE VALVE PUSH ROD CYLINDER BLK COOLANT PLUMB CRANKCASE RESPIRATOR CPR COOLANT PLUMBINT AIR COMPRESSOR DIS PLUMBIN COOLANT HEATER STARTING AI CPR AIR INLET ARRANGEMENT AIR COMPRESSOR SHOCK ABSORBER THERMOSTAT CHARGER INSTALLATION ENGINE FRONT BRACKET FAN DRIVING DEVICE FAN DRIVE MOUNTING FUEL FILTER PIPE FUEL FILTER FLYWHEEL HOUSE FUEL INLET FITTING FUEL PUMP MOUNTING FUEL PUMP FUEL SYSTEM ACCESSORIES FUEL SUPPLY PUMP FUEL PIPE FLYWHEEL MOUNTING, FLYWHEEL FRONT GEAR HOUSE COVER GEAR COVER MOUNTING FRONT GEAR HOUSE COVER CABIN HEATER PLUMBING INTAKE PIPE JOINT INTAKE CONNECTION MOUNTING AIR INTAKE MANIFOLD PNEUMATIC TUBE JOINT LIFTING ARRANGEMENT LIFTING BRACKET MOUNTING ENGINE OIL COOLER OIL FILTER OIL LEVEL GAUGE LUBRICATING OIL OIL PUMP OIL FILL ARRANGEMENT CYLINDER COVER OIL SUMP ENG CNT MODULE PLUMBING ENGINE CONTROL MODULE CAM SHAFT INJECTOR CONNECTING ROD & PISTON TURBO-CHARGER TURBO-CHARGER INJECTOR PLUMBING CYLINDER HEAD ROCKER ARM RAD PLUMBING CONNECTION EXHAUST MANIFOLD TORQUE CONVERTER OIL COOLE VALVE COVER CORROSION RESISTOR WATER INTAKE CONNECTOR WATER OUTLET CONNECTOR PUMP,WATER BELT TENSIONER WATER PUMP DRIVE ENG CNT WIRING HARNESS EXHAUST OUTLET CONNECTION ENGINE MOUNTING AIR INTAKE SYSTEM AIR EXHAUST PIPE COOLING SYSTEM COOLING WATER PIPE INTERCOOLER SYSTEM UREA SYSTEM FUEL SUPPLY SYSTEM FRONT AIR SUSPENSION JR-75F-01-20 REAR AIR SUSPENSION JR-130R-01-35 FRONT AXLE 30ZDS08F-00005 TIE ROD 33ZDS01C-03050 REAR AXLE 24ZS19H-00005-B FINAL REDUCTION GEAR AND DIFFERENTIAL ASSY 2402ZS08Z-010-B PROPELLER SHAFT ASSEMBLY WHEEL SYSTEM STEERING SYSTEM (1) STEERING SYSTEM (2) BRAKE SYSTEM BRAKE SYSTEM FRONT WALL RIGHT SIDE GLASS LEFT SIDE GLASS RIGHT SIDE BIN GATE LEFT SIDE BIN GATE REAR WALL FRONT PASSENGER DOOR EXIT DOOR REARVIEW MIRROR AND WIPER INNER TRIM (1) INNER TRIM (2) INNER TRIM (3) INNER TRIM (4) INNER TRIM (5) INNER TRIM (6) RIGHT SIDE CLAD COLUMN LEFT SIDE CLAD COLUMN ELECTRICAL EQUIPMENT (1) ELECTRICAL EQUIPMENT (2) INSTRUMENT DESK ELECTRICAL UNIT WRING HARNESS SWITCH CONTROL BOX SWITCH AND INDICATOR LIGHT AIR CONDITIONER, WIRING HARNESS SKETCH KT-SIATE-SAT(X-B) AIR CONDITIONER, CONDENSER SYSTEM KT-SIATE-SAT(X-B) AIR CONDITIONER, EVAPORATOR SYSTEM AIR CONDITIONER, EXTERIOR PIPELINE LINK WATER HEATER AND DEFROSTER SYSTEM ASSEMBLY GROUP OVERVIEW 6HP504C, EST 146 ASSEMBLY GROUP OVERVIEW CONNECTION PERIPHERAL EQUIPMENT GEARBOX HOUSING COVER PLATE RETARDER GEARBOX COUPLING BRAKE BRAKE BRAKE OUTPUT SHIFT CONTROL DIPSTICK PARTS CONVERTER HEAT EXCHANGER

1

2

3

4

5

6

7

8

9

10

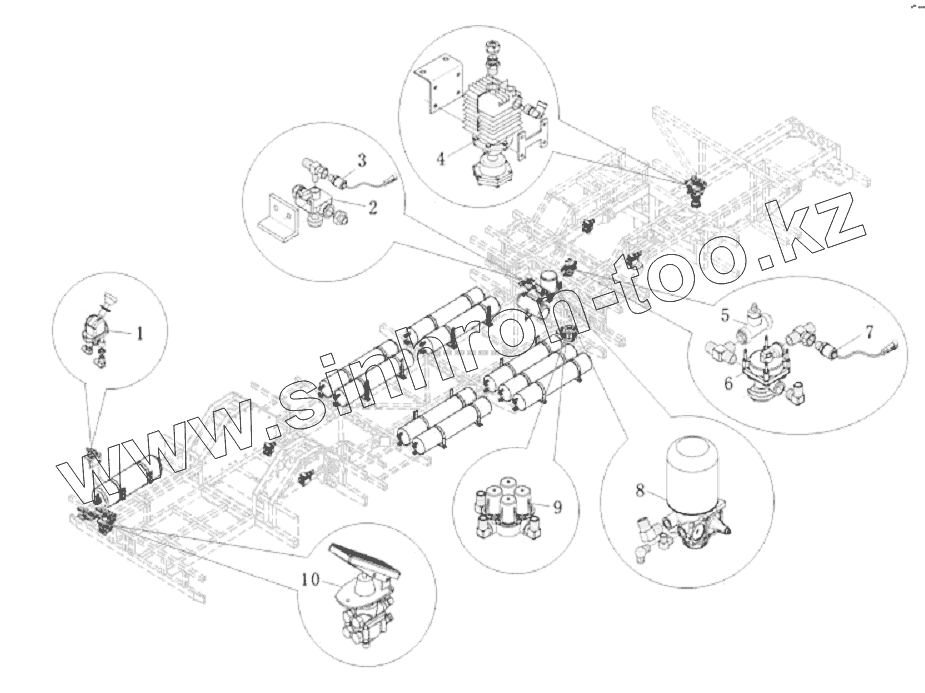

Позиция на иллюстрации	Заводской номер детали		Название детали
1	9617230380		Brake valve, manual
2	9735000000		Quick release valve
3	3800431		Air pressure switch , hand brake
4	3511310NT		Oil cooler, oil/water separator
5	4342080290		Valve assembly, two-way
6	MQPS-3530001		Relay valve
7	JK611Q		Switch, brake lamp
8	4324210280		Air dryer assembly
9	9347140100		Protective valve assembly, four-loop
10	3505060BM		Brake master cylinder assy
