Каталог запасных частей к технике: King Long Автобус XMQ-6127. Rear arrester 3502X02-020A
1
2
3
4
5a
5b
6a
6b
7a
7b
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
22
24
24
24
25
26
27

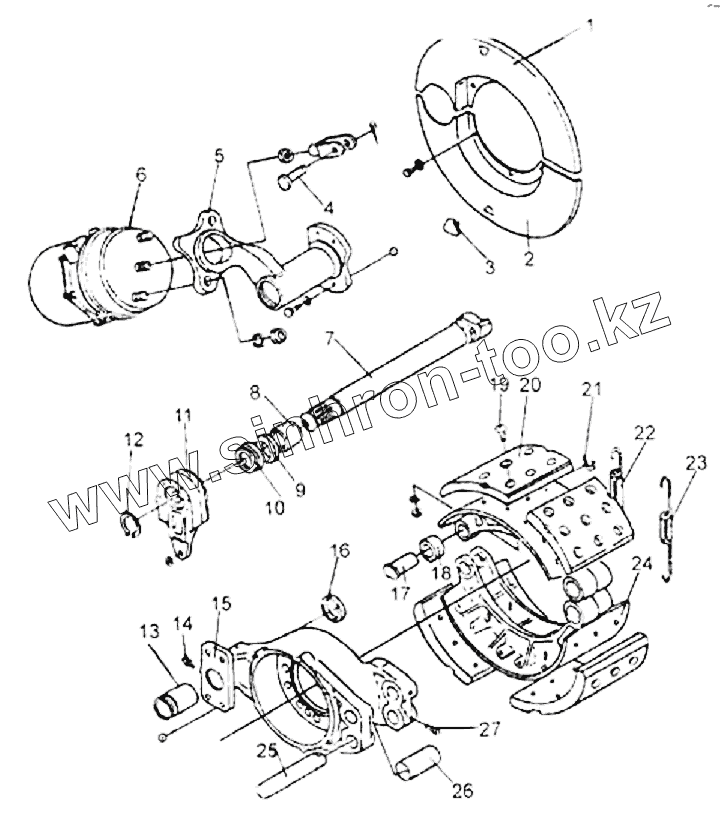

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 3502ABS-022-A | Lower dust cover assy. | |
| 2 | 3502ABS-023-A | Upper dust cover | |
| 3 | 3501N-076 | Plug | |
| 4 | 3502N-018 | Pin | |
| 5a | 35ZD-02029 | spring brake chamber bracket | |
| 5b | 35ZD-02030 | spring brake chamber bracket | |
| 6a | 3530N-001 | spring brake chamber assy | |
| 6b | 3530N-002 | spring brake chamber assy | |
| 7a | 3502KZD-041 | Brake camshaft | |
| 7b | 3502KZD-042 | Brake camshaft | |
| 8 | 3502NHS01-038 | bushing | |
| 9 | 3502N-036 | Oil seal | |
| 10 | 35ZD-01044 | Gasket ring, camshaft | |
| 11 | 3551ZD1-020 | Rear brake adjusting arm | |
| 12 | 3501ZD-054 | Rear camshaft retainer | |
| Q151B1435-J0 | Q151B1435-J0 | Hex bolt-tighten cam shaft retainer | |
| Q40314 | Q40314 | Washer 14 | |
| 13 | 4132290001 | Bushing | |
| 14 | 9945190003 | Grease fitting | |
| 15 | 4402090263 | Rear brake back plate | |
| 16 | 3502N-034 | Seal assy | |
| 17 | 3501N-102 | Roller shaft | |
| 18 | 3502N-113 | Roller assy. | |
| 19 | 3501N12-106 | Rivet | |
| 20 | 3502XN12-105A-B | Rear brake lining | |
| 21 | 3501N-118 | Snap ring | |
| 22 | 3502N12-064 | Return spring assy | |
| 24 | 3502N12-101-B | Rear brake shoe | |
| 24 | 3502XN12-085A-B | Lower brake shoe | |
| 24 | 3502XN12-185A-B | Upper brake shoe | |
| 25 | 3502N-132 | Brake shoe spindle | |
| 26 | 3502N-093 | Bushing | |
| 27 | 3501N-134 | Screw | |
| 3502XN12-185A-B/085A-B | 3502XN12-185A-B/085A-B | Rear brake lining&brake shoe assy | |
| 3502X02-020A | 3502X02-020A | Rear arrester assy |
