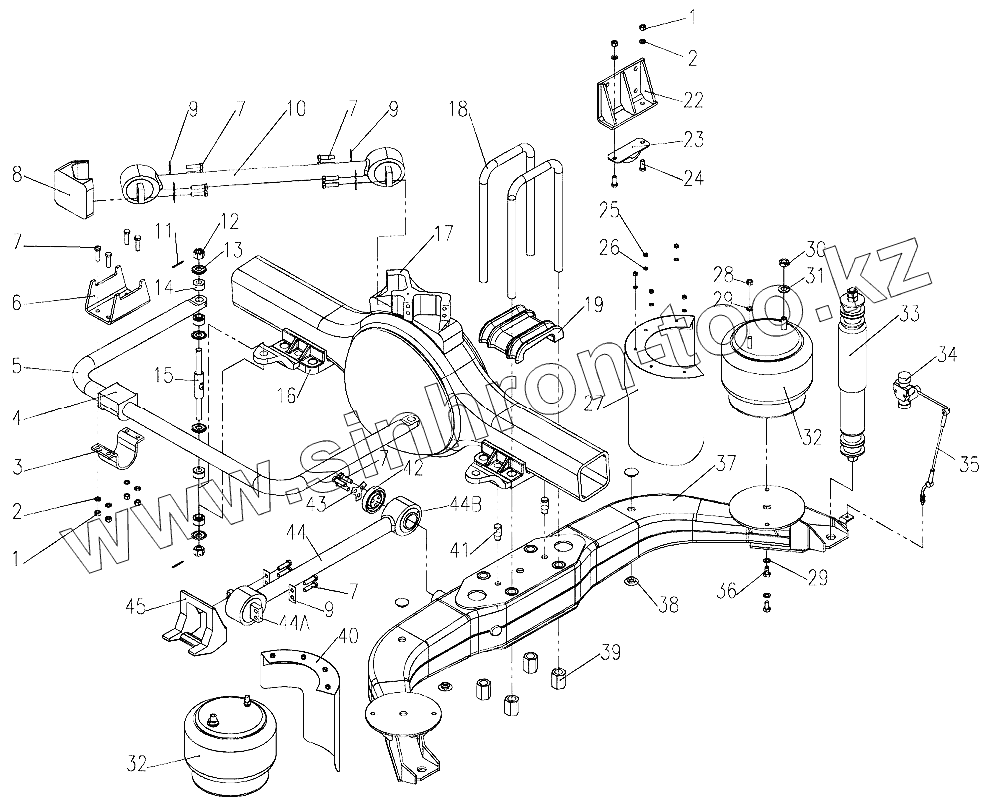

Каталог запасных частей к технике: King Long Автобус XMQ-6127. Rear air suspension
1
1
2
2
3
4
5
6
7
7
7
7
7
8
9
9
9
10
11
12
13
14
15
16a
16b
17
18
19a
19b
22
23
24
25
26
27a
27b
28
29
29
30
31
32
32
33
34
35
36
37a
37b
38
39
40a
40b
41
42
43
44
44A
44B
45
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | Q340B12T13F2 | Nut | |
| 2 | Q40312 | Gasket 12 | |
| 3 | 6115Y-0060-2935036 | Clip | |
| 4 | 6115Y-0060-2935037 | Bushing, anti-roll bar | |
| 5 | 6115Y-0060-2935018 | Stabilizer anti-roll bar | |
| 6 | 2916011001 | Upper seat, anti-roll bar | |
| 7 | Q150B1245TF2 | Bolt | |
| 8 | 6115Y-0060-2935020 | Front holder | |
| 9 | 6115Y-0060-2935034 | Gasket | |
| 10 | 6115Y-0060-2935016 | Side distance rod | |
| 11 | Q5004045 | Split pin | |
| 12 | Q381C20T13F2 | Nut | |
| 13 | 6115Y-0060-2935038 | Washer | |
| 14 | 6115Y-0060-2935039 | Rubber sleeve | |
| 15 | 6115Y-0060-2935021 | Draglink | |
| 16a | 6115Y-0060-2935015 | Right adapter weldment assembly | |
| 16b | 6115Y-0060-2935014 | Left adapter weldment assembly | |
| 17 | 6115Y-0060-2935012 | Axle bearing, side distance rod | |
| 18 | 6115Y-0060-2935032 | Hexagon bolt / U bolt | |
| 19a | 6115Y-0060-2935028 | Left cover board, rear axle | |
| 19b | 6115Y-0060-2935029 | Right cover board, rear axle | |
| 22 | 6115Y-0060-2935031 | Limit bracket | |
| 23 | 6115Y-0060-2935049 | Limit block | |
| 24 | Q150B1230TF2 | Bolt | |
| 25 | Q340B08 | Nut | |
| 26 | Q40308 | Gasket 8 | |
| 27a | 6115Y-0060-2935025 | Weldment, left back air chamber shield | |
| 27b | 6115Y-0060-2935024 | Weldment, right back air chamber shield | |
| 28 | 6115Y-0060-2935042 | Nut | |
| 29 | 6115Y-0060-2935041 | Spring washer | |
| 30 | 6115Y-0060-2935043 | Locknut | |
| 31 | 6115Y-0060-2935044 | Washer | |
| 32 | 6115Y-0060-2935022 | Air spring assembly | |
| 33 | 6115Y-0060-2935023 | Absorber assembly | |
| 34 | 2908100001 | Altitude valve | |
| 35 | 2908011001 | Connecting rod | |
| 36 | 6115Y-0060-2935040 | Bolt | |
| 37a | 6115Y-0060-2935011 | Left C shape grider weldment | |
| 37b | 6115Y-0060-2935013 | Right C shape grider weldment | |
| 38 | 6115Y-0060-2935048 | Rubber plug | |
| 39 | 6115Y-0060-2935033 | Nut | |
| 40a | 6115Y-0060-2935027 | Weldment, left front air chamber shield | |
| 40b | 6115Y-0060-2935026 | Weldment, right front air chamber shield | |
| 41 | 6115Y-0060-2935047 | Cylindrical pin | |
| 42 | 6115Y-0060-2935045 | Shaft end cover | |
| 43 | 6115Y-0060-2935046 | Gasket | |
| 44 | 6115Y-0060-2935017 | Distance rod | |
| 44A | Buttonhead | Rubber buttonhead | |
| 44B | Buttonhead | Rubber buttonhead | |
| 45 | 6115Y-0060-2935019 | Front holder, distance rod | |
| 6115Y-0060-2935035 | 6115Y-0060-2935035 | Adjusting gasket |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
