Каталог запасных частей к технике: King Long Автобус XMQ-6127. Front axle (Air spring) 30NS01R-00005
1a
1b
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26a
26b
27
28
29
30
31
31a
31b
33
34
35
36
36a
36b
37
38
39
40
41
42

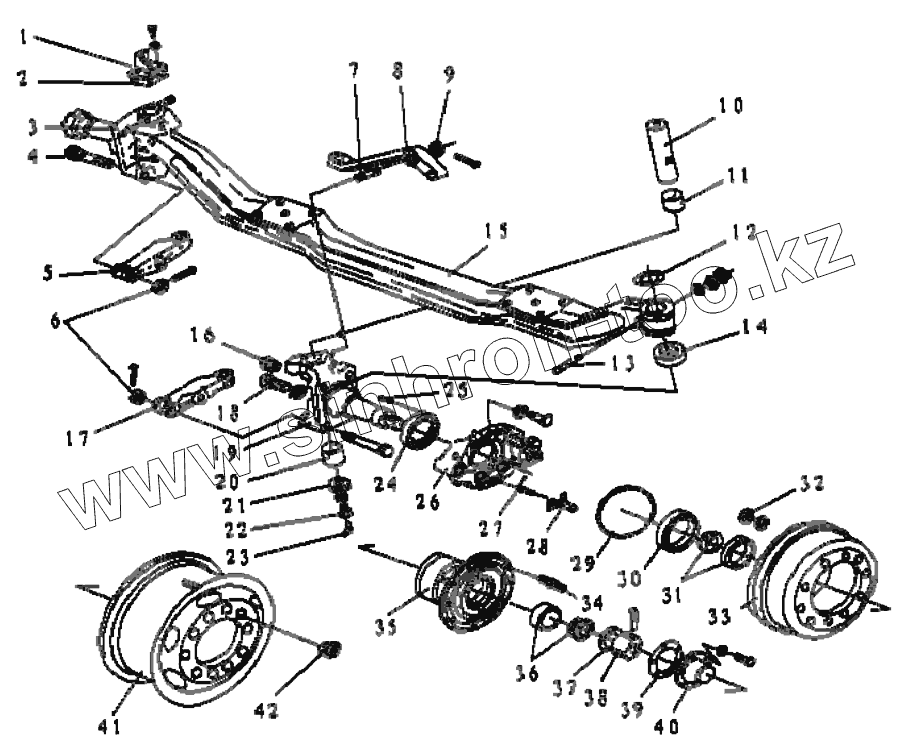

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1a | 41352X90072 | Left bracket | |
| 1b | 41351X90072 | Right bracket | |
| 2 | 35N-01033 | Sealing gasket | |
| 3 | 30N-01016 | Right steering knuckle | |
| 4 | 30N-01043 | Bolt | |
| 5 | 30N-01042 | Right steering knuckle arm | |
| 6 | 30N-01045 | Slotted nut | |
| 7 | 30N-01048 | Stud | |
| 8 | 30N-01044 | Drag rod arm | |
| 9 | 30N-01049 | Slotted thin nut | |
| 10 | 30N-01021 | Steering knuckle kingpin | |
| Q5004025 | Q5004025 | Split pin | |
| Q500B0426 | Q500B0426 | Split pin | |
| 11 | 30N-01019 | Upper bushing | |
| 12 | 30N-01022~01029 | Steering knuckle adjusting washer | |
| 13 | 30N-01031 | Lock pin | |
| Q341B10 | Q341B10 | Nut | |
| 14 | 30N-01035 | Thrust bearing assy | |
| 15 | 30R13JL-01011 | Front axle | |
| 16 | 30N-01033 | Screw plug | |
| 17 | 30N-01041 | Left steering knuckle arm | |
| 18 | 30N-01032 | Steering limiting screw | |
| 30NA-02032 | 30NA-02032 | Steering limiting nut | |
| 19 | 30N-01015 | Left steering knuckle | |
| 20 | 30N-01020 | Lower bushing | |
| 21 | 30N-01037 | Kingpin cover assy | |
| 22 | 30N-01039 | Screw | |
| 23 | Q701B70 | Grease fitting | |
| 24 | 31N-03076 | Front oil seal collar assy | |
| 25 | Pin | Cylindrical pin | |
| 26a | 3501NSZ-025 | Brake back plate, left front | |
| 26b | 3501NSZ-125 | Brake back plate, right front | |
| 27 | 35Z02-00030 | ABS sensor | |
| 28 | 35Z02-00031 | ABS sensor bracket | |
| 29 | 30ABS-00011 | ABS front gear ring | |
| 30 | 31N-03080 | Front hub seal assy | |
| 31 | Fronthub | Front hub | |
| 31a | 31N-03021 | Outer ring | |
| 31b | 31N-03022 | Inner ring | |
| 33 | 35XD21-01075 | Front brake drum | |
| 34 | 31CD-03051A | Front wheel bolt | |
| 35 | 31NS03-03015 | Front hub | |
| 36 | Fronthub | Front hub | |
| 36a | 31N-03031 | Outer ring | |
| 36b | 31N-03032 | Inner ring | |
| 37 | 30N-01058 | Washer | |
| 38 | 31N-01061 | Slotted thin nut | |
| 39 | 31N-03062 | Gasket | |
| 40 | 31N-03061 | Hub cap | |
| 41 | Wheel | Wheel rim and spoke assembly | |
| 42 | 31NP-03054 | Front wheel nut |
