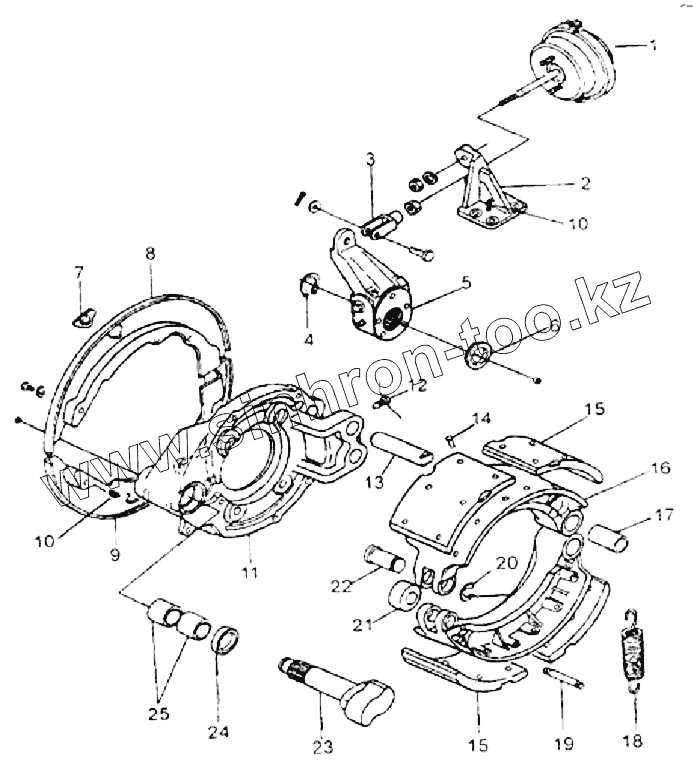

Каталог запасных частей к технике: King Long Автобус XMQ-6127. Front arrester
1-1
1-2
2-1
2-2
3
4
5-1
5-2
6
7
8-1
8-2
9
10
10
11-1
11-2
12
13
14
15
15
16
17
18
19
20
21
22
23-1
23-2
24
25
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1-1 | 4131990068 | Air chamber , right front | |
| 1-2 | 4131990069 | Air chamber , left front | |
| 2-1 | 4135290067 | Left bracket, brake chamber | |
| 2-2 | 4135190072 | Right bracket, brake chamber | |
| 3 | Brake | Brake chamber connecting clevis | |
| 4 | Snapring | Snap ring, brake camshaft | |
| 5-1 | 3551ZD1-010 | Brake adjusting arm, left front | |
| 5-2 | 3551ZD1-015 | Brake adjusting arm, right front | |
| 6 | 3501XD26-044 | Spacer ring | |
| 7 | 3501N-076 | Plug | |
| 8-1 | 4131890112 | Lower dust cover, right front | |
| 8-2 | 4130790119 | Lower dust cover, left front | |
| 9 | 4130790118 | Upper dust cover assy | |
| 10 | Fitting | Grease fitting | |
| 11-1 | 3501NSZ-025 | Brake back plate, left front | |
| 11-2 | 3501NSZ-125 | Brake back plate, right front | |
| 12 | 3501N-134 | Screw | |
| 13 | 3501N-132 | Shaft, shoe plate | |
| 14 | 4104290012 | Rivet | |
| 15 | 4103990611A | Front brake lining | |
| 4103090479A | 4103090479A | Brake shoe, upper and front | |
| 16 | 4103090500A | Brake shoe,lower and front | |
| 4103290073 | 4103290073 | Front brake shoe | |
| 17 | 3501N-093 | Bushing | |
| 18 | 4102190011 | Return spring | |
| 19 | 3501N-108 | Return spring dowel | |
| 20 | 3501N-118 | Snap ring | |
| 21 | 4131490015 | Roller,front | |
| 22 | 4131390014 | Roller shaft assy | |
| 23-1 | 3501XD26-041 | Brake camshaft, left front | |
| 23-2 | 3501XD26-042 | Brake camshaft, right front | |
| 24 | 3501N-034 | Oil seal, front brake back plate | |
| 25 | 3501N-039 | Bushing, front brake back plate | |
| 30ABS-00012A | 30ABS-00012A | Sleeve, front sensor | |
| 3501XZ10-010A-B | 3501XZ10-010A-B | Arrester, left front | |
| 3501XZ10-015A-B | 3501XZ10-015A-B | Arrester, right front |
