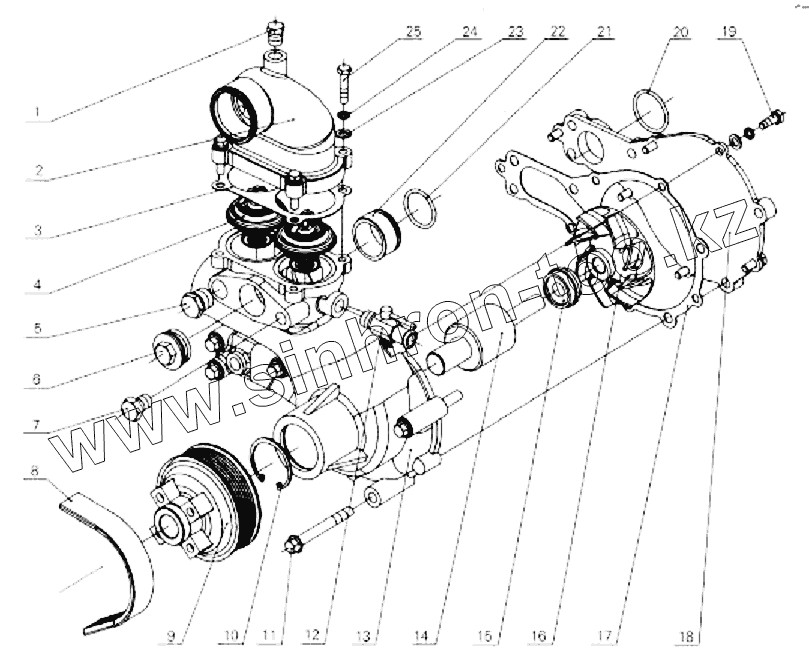

Каталог запасных частей к технике: King Long Автобус XMQ-6127. Assembly, water pump
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | Q618B02 | Screw plug | |
| 2 | L3002-1306001 | Cover, thermostat | |
| 3 | L3000-1306013 | Gasket, thermostat | |
| 4 | 530-1306010 | Thermostat | |
| 5 | Q618B04 | Screw plug | |
| 6 | 177-1306023 | Screw plug | |
| 7 | Q151B1418 | Bolt | |
| 8 | L3002-1307042 | Ribbed belt | |
| 9 | L3000-1307011 | Belt pulley, water pump | |
| 10 | Q43052 | Retaining ring 52 | |
| 11 | Q1841085TF2 | Bolt | |
| 12 | 6105Q-1305100 | Assembly, warm air & water intake valve | |
| 13 | L33QA-1307000 | Water pump | |
| 14 | L3000-1307012 | Bearing, connected to shaft | |
| 15 | L3000-1307013 | Assembly, waterseal | |
| 16 | L3000-1307026 | Impeller | |
| 17 | L3000-1307017A | Gasket, water pump | |
| 18 | L3000-1307018A | Cover plate, water pump | |
| 19 | Q150B0822 | Bolt | |
| 20 | GB3452.1-35504000 | O-sealing ring | |
| 21 | GB3452.1-35503550 | O-sealing ring | |
| 22 | L3000-1307016 | Connection pipe | |
| 23 | Q40108 | Gasket 8 | |
| 24 | Q40308 | Gasket 8 | |
| 25 | Q150B0835 | Bolt |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
