Каталог запасных частей к технике: King Long Автобус XMQ-6127. Assembly, piston & connecting rod

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано Golden Dragon Hyundai Ikarus Karosa King Long Neoplan Yutong ZF АМАЗ Богдан ЗИЛ КАВЗ Камский автозавод ЛАЗ ЛЗГМП ЛиАЗ Нефтекамский автозавод ПАЗ УралАЗ

Модель Не выбрано Автобус XMQ-6127 (2007) Автобус XMQ-6127J (2010) Автобус XMQ-6129Y (2010) Автобус XMQ-6129Y5 (2015) Автобус XMQ-6800Y (2010)

Схема > Не выбрано Assembly, cylinder Timing gear housing Assembly, cylinder head Assembly, piston & connecting rod Assembly, crankshaft&flywheel Assembly, camshaft Assembly, valve tappet Air intake pipe Air exhaust pipe Assembly, oil sump Oil strainer assy Assembly, oil pump Assembly, oil filter Assembly, oil cooler Assembly, fuel pipeline Assembly, fuel filter Assembly, fuel injection pump Assembly, fuel injector Assembly, supercharger Water drain faucet Assembly, warm air&water intake valve Assembly, water pump Clutch parts Assembly, air compressor Assembly, starter Engine suspension Air intake system Air exhaust system Cooling system Cooling water pipe Intercooler Fuel tank and supply pipeline Accelerator cable and idle speed adjustment Belt Clutch control mechanism Clutch assy Transmission control mechanism Output flange (with retarder) Countershaft Input shaft and countershaft end cover Transmission housing and reverse shaft Input shaft Output shaft and gear Selector shaft Shift fork Front air suspension Rear air suspension Propeller shaft Front axle (Air spring) 30NS01R-00005 Steering tie rod Front arrester Rear axle(Air suspension) Rear arrester 3502X02-020A Final reduction gear (I=4.10) Q1-2402S106F-010 Wheel Steering system (1) Steering system (2) Brake control unit (1) Brake control unit (2) Retarder (Telma F 191) Front wall Right side window and skin Left side window and skin Left side bin gate assy Right side bin gate assy Rear wall Passenger door and Central door mounting Inner trim (I) Inner trim (II) Inner trim (III)-luggage rack Passenger seat guardrail layout and water fountainer KE-1 Jiangsong passenger seat Body accessory External rearvew mirror Wiper Electrical equipment (I)- Lamp Electrical equipment (II) Instrument desk and electrical equipment Central control box Rocker switch and indicator lamp Indicator, instrument and wiring harness Air conditioner-Wiring harness sketch Air conditioner-Condenser system Air conditioner-Evaporator system Air conditioner-Exterior pipeline link Compressor mounting

1

2

3

4

5

6

7

8

9

10

11

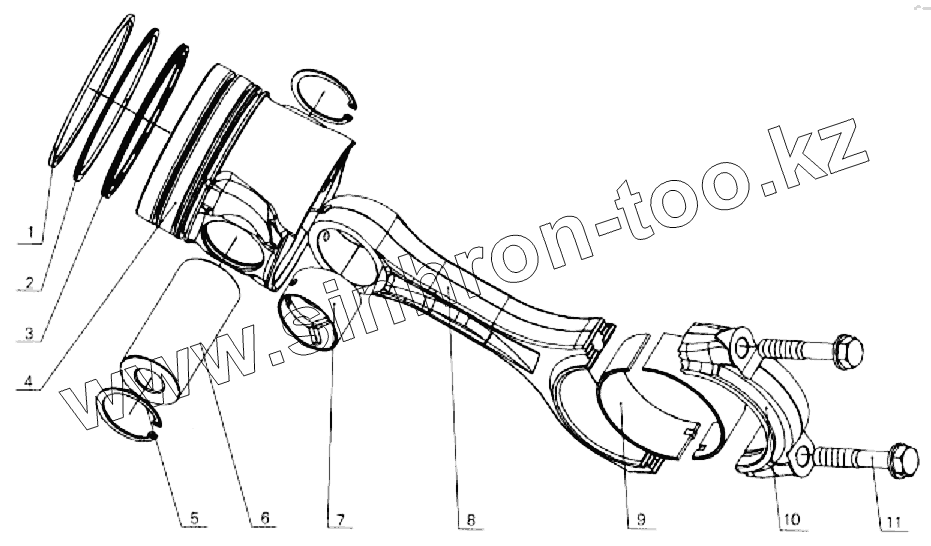

Позиция на иллюстрации	Заводской номер детали		Название детали
1	L3000-1004016		First gas ring
2	L3000-1004017		Second gas ring
3	L3000-1004030		Oil ring assembly
4	L3000-1004015A		Piston
5	Q43045		Retaining ring 45
6	L3000-1004019		Piston pin
7	L3000-1004052A		Bush, connecting rod
8	L3000-1004051		Connecting rod
9	L3000-1004022		Bearing bush, connecting rod
10	L3000-1004053		Cover, connecting rod
11	L3000-1004054A		Bolt, connecting rod
