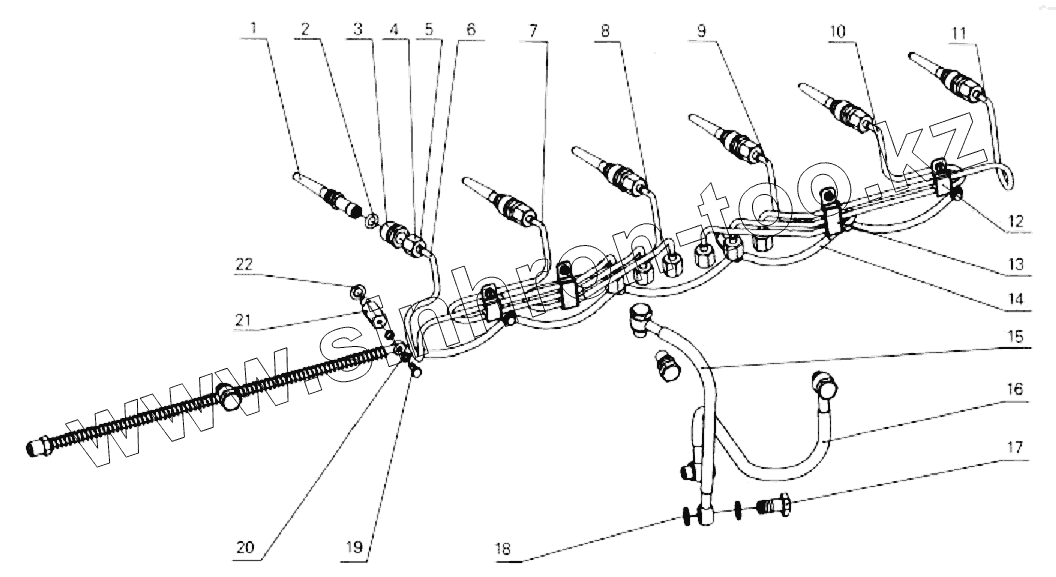

Каталог запасных частей к технике: King Long Автобус XMQ-6127. Assembly, fuel pipeline
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | L3000-1104120A | Connecting pipe, high pressure | |
| 2 | L3000-1104129 | O-ring | |
| 3 | L3000-1104131 | Bolt, connecting pipe | |
| 4 | 150-1104017A | Pipe-connecting nut | |
| 5 | JB/T6014 | Jacket 6A | |
| 6 | L3000-1104011C | High pressure pipe, cylinder 1 | |
| 7 | L3000-1104012C | High pressure pipe, cylinder 2 | |
| 8 | L3000-1104013C | High pressure pipe, cylinder 3 | |
| 9 | L3000-1104014C | High pressure pipe, cylinder 4 | |
| 10 | L3000-1104015C | High pressure pipe, cylinder 5 | |
| 11 | L3000-1104016C | High pressure pipe, cylinder 6 | |
| 12 | 330-1104080 | 2 pipe clamps fixing assembly | |
| 13 | 330-1104090 | 3 pipe clamps fixing assembly | |
| 14 | L3000-1104110 | Oil return hose assembly | |
| 15 | L3000-1104300 | Oil pipe, between oil transfer pump and diesel filter | |
| 16 | L3000-1104400 | Oil pipe between diesel filter and injection pump | |
| 17 | JB/T6013-1415 | Link bolt | |
| 18 | JB/T982-14 | Composite sealing gasket 14 | |
| 19 | 150-1112012 | Bolt | |
| 20 | 150-1112011 | Gasket | |
| 21 | L3000-1104041A | Oil return connector | |
| 22 | JB/T6013-10 | Gasket 10 |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
