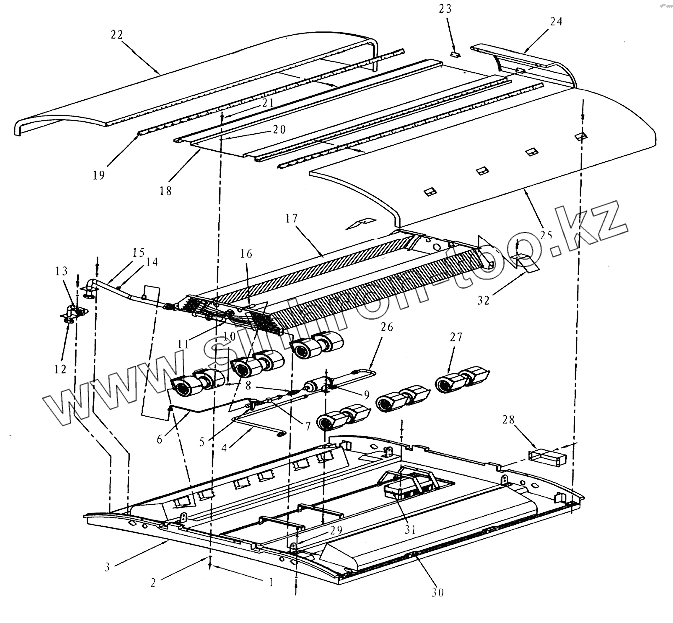

Каталог запасных частей к технике: King Long Автобус XMQ-6127. Air conditioner-Evaporator system
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | NutM6 | Nut M6 | |
| 2 | NutM6 | Nut M6 | |
| 3 | 28090106002 | Evaporator shell | |
| 4 | 28090110000 | The liquid tube-into the evaporator | |
| 5 | DANFOSS-9.6T | Thermo expansion valve | |
| 6 | 28062110000 | Balance tube | |
| 7 | DANFOSS-16S | Sight glass | |
| 8 | 28050108001 | The connecting tube | |
| 9 | 100105 | The drier filter | |
| 10 | GB818-85 | Crisscross bolt | |
| 11 | 28062108140 | The gas tube-out from the evaporator | |
| 12 | 28052105000 | Connecting tube, condenser air inlet | |
| 13 | 2.35MPA/1.65MPA | High pressure switch | |
| 14 | 0.04MPA/0.14MPA | Low pressure switch | |
| 15 | 28092104000 | Connecting tube, evaporator air return | |
| 16 | 28060108130 | The liquid distributor unit | |
| 17 | 28062108000 | The evaporator unit | |
| 18 | 28090113002 | The evaporator cover installation plank | |
| 19 | Gemel | Gemel | |
| 20 | GB5783-86 | Washer | |
| 21 | BoltM6x25 | Bolt M6x25 | |
| 22 | 28090111004 | Right GRP cover , evaporator | |
| 23 | Gemel | Gemel | |
| 24 | 28050112000 | Middle GRP cover for evaporator | |
| 25 | 28090114004 | Left GRP cover for evaporator | |
| 26 | 28060113000 | The liquid tube-into the drier filter | |
| 27 | 009-B50-22 | Evaporator blower | |
| 28 | 28050117000 | Fresh air damper unit | |
| 29 | 16010106000 | The fasten plank for evaporator coil | |
| 30 | 16120101300 | The nut-plank unit | |
| 31 | SAT-XB | Electric components box | |
| 32 | 28090106999 | The fresh air shield |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
