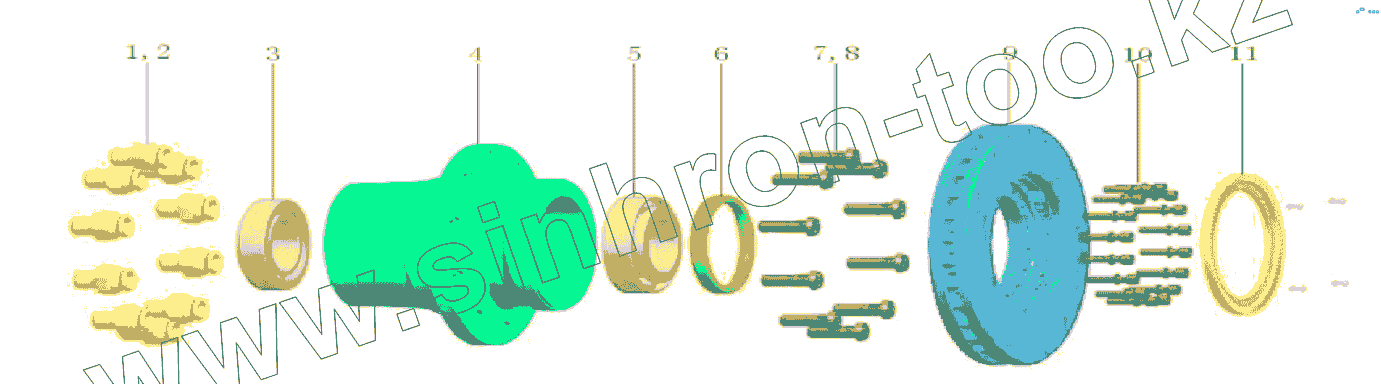

Каталог запасных частей к технике: Golden Dragon XML6845CN-3150236. WHEEL HUB WITH BRAKE DISC ASSEMBLY
1
1
2
2
3
4
5
6
7
8
9
10
11
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 24BRS03-01090 | 24BRS03-01090 | Rear wheel hub outer oil seal | |
| 24D-03063 | 24D-03063 | Stud bolt | |
| Q40512 | Q40512 | Heavy-gauge spring washer | |
| Q341B12 | Q341B12 | Hexagonal nut | |
| 35BRS50-02065 | 35BRS50-02065 | Rear left wheel hub with brake disc assembly | |
| 35BRS50-02066 | 35BRS50-02066 | Rear right wheel hub with brake disc assembly | |
| 31E-04086 | 31E-04086 | Outer ring - rear wheel hub inner oil seal | |
| 1 | Q1-31S92H-04053 | Inner nut, rear left wheel | |
| 1 | Q1-31S92H-04054 | Inner nut, rear right wheel | |
| 2 | 31N-04056 | Outer nut, rear right wheel | |
| 2 | 31N-04055 | Outer nut, rear left wheel | |
| 3 | 7815E | Outer bearing assy, rear hub | |
| 4 | 31BRS50-04015 | Rear wheel hub | |
| 5 | 7816E | Inner bearing assy, rear hub | |
| 6 | 3104080-BR03D | Inner oil seal assy, rear wheel hub | |
| 7 | Q1-31S53E-03051-A | Left front wheel bolt | |
| 8 | Q1-31S53E-03052-A | Right front wheel bolt | |
| 9 | 35FS50-02075 | Brake disc | |
| 10 | Q1-35S82E-02079 | Screw, hex | |
| 11 | 35FS50-02500 | Gear ring |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
