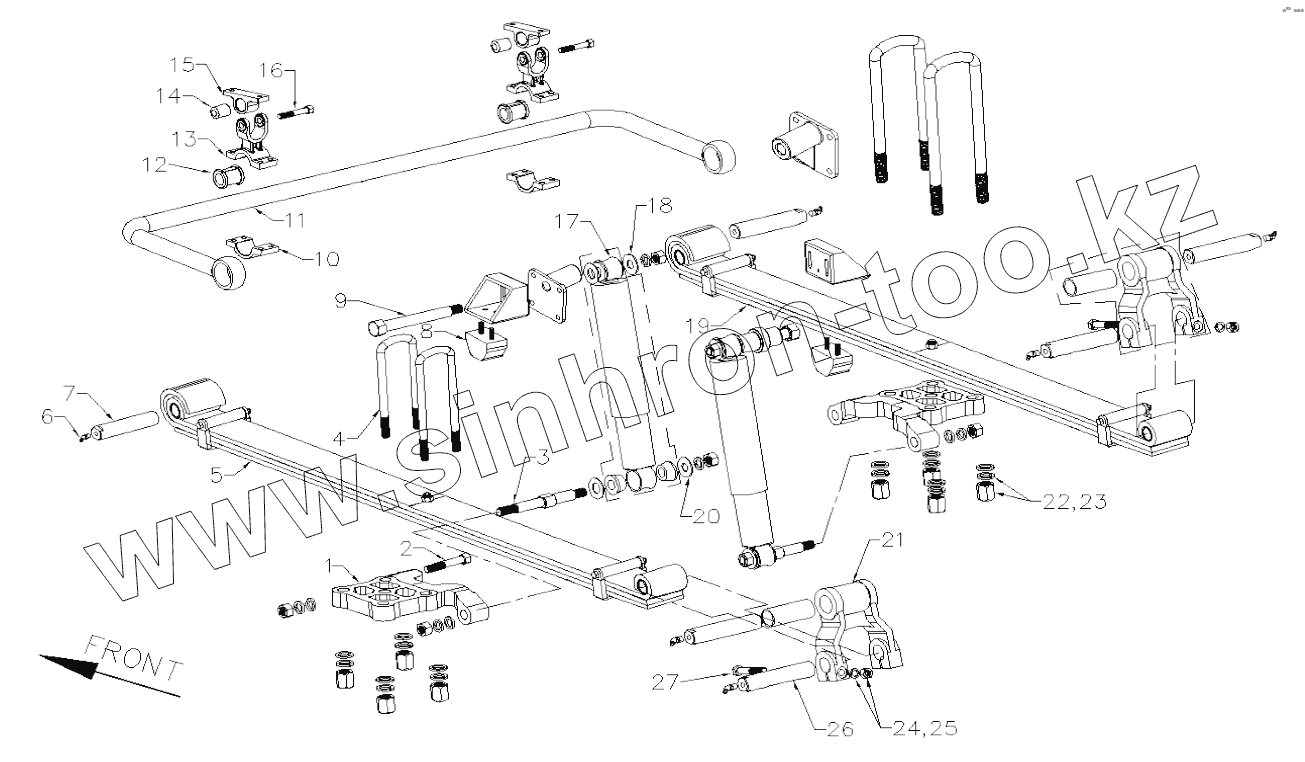

Каталог запасных частей к технике: Golden Dragon XML6845CN-3150236. REAR SUSPENSION ASSEMBLY
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 6845Y10-2911061-FK35 | Cover plate, rear spring | |
| 2 | 6890E01-2916012 | Pin, rear stabilizer bar | |
| 3 | 6840E01-2906011 | Lower pin, rear shock absorber | |
| 4 | 6857A02-2911041-9R01 | Short U- bolt, rear | |
| 5 | 6845Y10-2912010 | Rear leaf spring | |
| 6 | Q701B45 | Goose-neck grease nozzle | |
| 7 | 2901-031-J4P | Leaf spring pin | |
| 8 | XML2911106P6F1 | Rear buffer block | |
| 9 | 6857A02-2915021 | Upper bracket pin, rear shock absorber | |
| 10 | XMQ6110GS-2906106 | Fixing clamp, suspension arm, front stabilizer | |
| 11 | 6890E01-2916010 | Stabilizer bar assy, rear | |
| 12 | 2906-105-J4P | Bushing, front stabilizer | |
| 13 | XMQ6116GFB-2906104 | Fixing clamp, suspension arm, front stabilizer | |
| 14 | XMQ6110GS-2906107 | Bushing, Stabilizer bar upper bracket | |
| 15 | 6112E31-2916103 | Upper bracket assembly, front stabilizer | |
| 16 | 2906-108-J4P | Upper pin, front stabilizer bar | |
| 17 | 481700002345 | Shock absorber | |
| 18 | XML2905012J2F0 | Washer | |
| 19 | 6845Y10-2912020 | Rear leaf spring | |
| 20 | XML2905013J2F0 | Washer | |
| 21 | 6840E01-2901020 | Lifting eye w/ bushing assembly | |
| 22 | Q363B18 | Nut | |
| 23 | Q403B18 | Spring washer | |
| 24 | Q40312 | Spring washer | |
| 25 | Q340B12 | Nut | |
| 26 | 2901-032-J4P | Lifting lug pin, front | |
| 27 | Q150B1280 | Hex bolt |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
