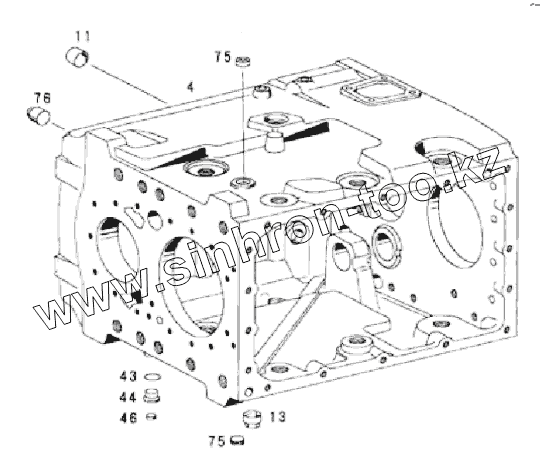

Каталог запасных частей к технике: Golden Dragon XML6845CN-3150236. HOUSING, TRANSMISSION

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано Golden Dragon Hyundai Ikarus Karosa King Long Neoplan Yutong ZF АМАЗ Богдан ЗИЛ КАВЗ Камский автозавод ЛАЗ ЛЗГМП ЛиАЗ Нефтекамский автозавод ПАЗ УралАЗ

Модель Не выбрано XML6105CN-7150227 (2015) XML6125CN-3150244 (2015) XML6127CNG-3141495 (2015) XML6139JR-3141082 (2015) XML6845CN-3150236 (2015)

Схема > Не выбрано FRONT PANEL 6925E01-3735160-R0 FRONT WIPER SIDE PANEL SIDE COMPARTMENT BATTERY COMPARTMENT PASSENGER DOOR INSTALLATION ASSEMBLY REAR PANEL DRIVER COMPARTMENT ELECTRICAL APPARATUS, FRONT INSTRUMENTS PANEL 6125Y07-3700100-R0 ELECTRIC BOX TOP COVER & SIDE PANEL ARMREST & SEAT FLOOR COVERING & REPAIR HATCH STEERING SYSTEM STEERING OPERATION BOOSTING PIPELINE TRANSMISSION OPERATING MECHANISM CLUTCH ASSEMBLY CLUTCH OPERATION SYSTEM SCHEMATIC DIAGRAM, BRAKE ARRANGEMENT DIAGRAM, BRAKE CONTROL AND FRONT BRAKE AIR CYLINDER AND 4-WAY PROTECTIVE VALVE AIR SUPPLY REAR BRAKE AND PARKING BRAKE ANTI-LOCK BRAKING SYSTEM (ABS) FRONT AXLE ASSEMBLY FRONT AXLE SYSTEM WHEEL HUB WITH BRAKE DISC ASSEMBLY BRAKE ASSY STEERING TIE ROD REAR AXLE ASSEMBLY REAR AXLE ASSY DIFFERENTIAL CARRIER ASSY WHEEL HUB WITH BRAKE DISC ASSEMBLY REAR BRAKE FRONT SUSPENSION ASSEMBLY REAR SUSPENSION ASSEMBLY WHEEL INSTALLTION DRIVE SHAFT INSTALLATION 6930S02-2201010 DRIVE SHAFT GEARBOX ASSEMBLY HOUSING, TRANSMISSION HOUSING, CLUTCH CONNECTION PLATE INPUT LAYSHFT-REVE ASSY SHAFT, OUTPUT GEAR SHIFT MECHANISM GEAR SHAFT COVER ASSY GEARSHAFT COVER AND ROTRY SELECTOR MECHANISM REAR COVER ENGINE & AROUND PARTS ENGINE MOUNTING SYSTEM GAS SYSTEM THROTTLE CONTROL MECHANISM AIR INTAKE SYSTEM 6112E32-1109210-HY AIR FILTER EXHAUST SYSTEM COOLING SYSTEM 6100A1-1025010 INTERMEDIATE PULLEY ASSY, ADJUSTING LEVER 6937A32-1311010-JS EXPENSION WATER TANK HEATING PIPELINE NAME PLATE, COMPLETE SET LOCK, COMPLETE SET TOOLS SUPPLIED WITH THE BUS HZKG-3900 TOOLS SUPPLIED WITH THE BUS HARNESS, COMPLETE SET

4

11

13

43

44

46

75

75

76

Позиция на иллюстрации	Заводской номер детали		Название детали
4	108301010		GearboxHousing
11	736301022		ScrewPlug
13	736305016		ScrewPlug
43	634801044		Sealing ring
44	636302016		ScrewPlug
46	630361103		Screw cap
75	636301048		ScrewPlug
76	736303005		ScrewPlug

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
