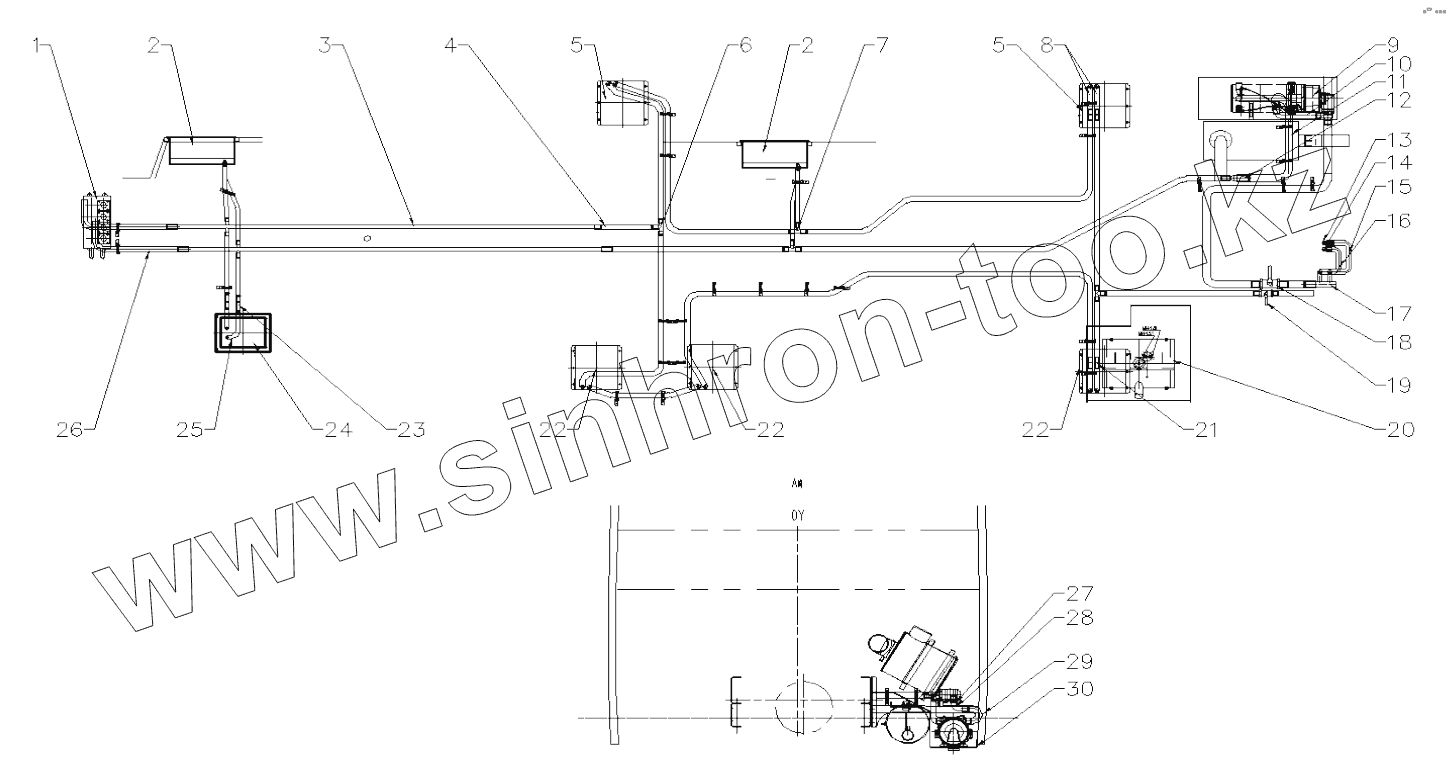

Каталог запасных частей к технике: Golden Dragon XML6845CN-3150236. HEATING PIPELINE
1
2
2
3
4
5
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
22
22
23
24
25
26
27
28
29
30
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | CS-7DL/18 | Defroster | |
| 2 | SR-25A | Radiator, step | |
| 3 | 6845E01-8123601A | Heating water pipe I | |
| 4 | 6127A01-8123516E | 6127A01-8123516E | |
| 5 | SR-4X/59 | Radiator | |
| 6 | XML8121296F1A0 | Copper T-joint | |
| 7 | 6127A11-8123505 | 3-way pipe | |
| 8 | 6790A-02525 | Hose, heating system | |
| 9 | T230 | Heater | |
| 10 | 6125Y12-8123921 | Water outlet pipe, heater | |
| 11 | 6845Y01-8123915 | Hose, heating system | |
| 12 | 6125G01-8123512 | Straight connector | |
| 13 | 6845Y03-8123531 | Water intake, engine | |
| 14 | 6891-8101019 | Connector, water blocking | |
| 15 | 6840E01-8123909 | Hose, heating system | |
| 16 | 6840E01-8123908 | Water heating pipe | |
| 17 | 6125G11-8123995 | 3-way pipe | |
| 18 | 6155Y01-8101016 | Valve | |
| 19 | 6891-8101016 | Valve | |
| 20 | 6845Y08-8123501YX | Fuel tank | |
| 21 | XML8101003N1A2 | Straight connector | |
| 22 | SR-4X/60 | Radiator | |
| 23 | 87125-36410 | Bronze connecting pipe | |
| 24 | SR-15A-08 | Radiator | |
| 25 | 6551L01-8123901 | Connecting pipe | |
| 26 | 6857A05-8123511 | Water heating pipe | |
| 27 | 6845Y04-8123205 | Bracket | |
| 28 | 6125G04-8123922 | Straight connector | |
| 29 | 6115E01-8123960 | Water outlet pipe, heater | |
| 30 | 6845Y06-8123732 | Bracket |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
