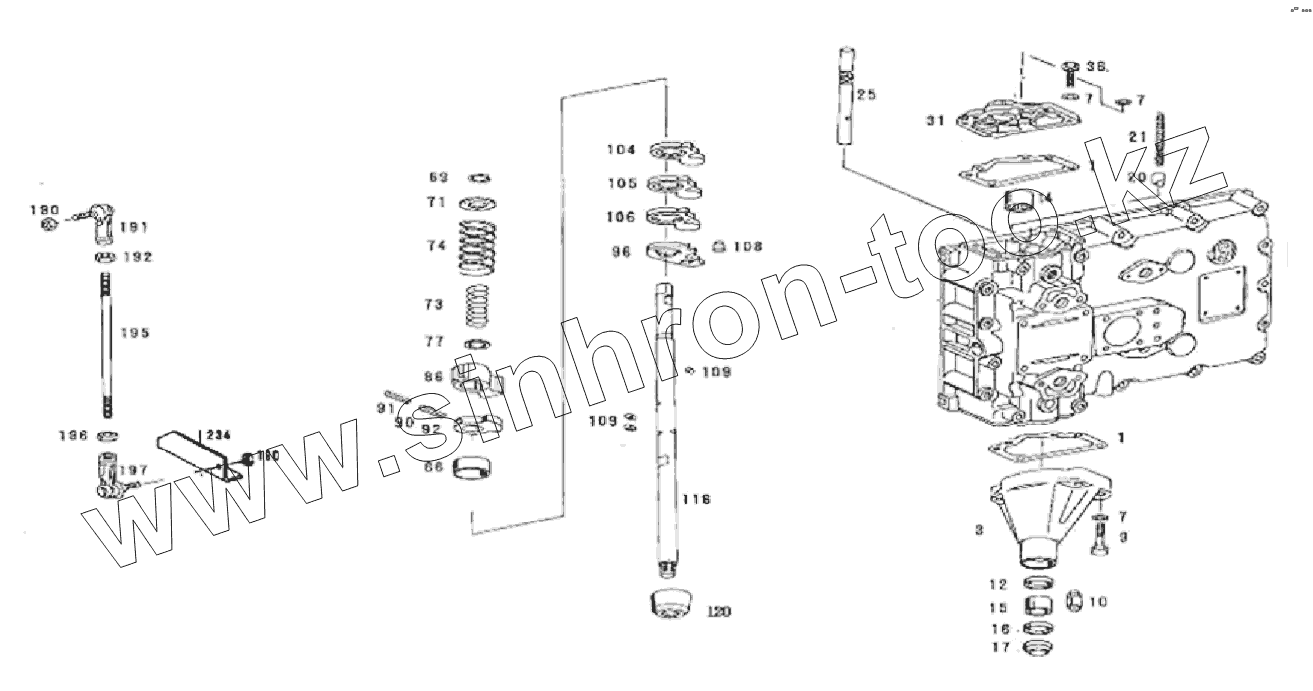

Каталог запасных частей к технике: Golden Dragon XML6845CN-3150236. GEARSHAFT COVER AND ROTRY SELECTOR MECHANISM
1
1
3
7
7
7
9
10
12
14
15
16
17
20
21
25
31
36
66
69
71
73
74
77
86
90
91
92
96
104
105
106
109
109
116
120
190
190
191
192
195
196
197
234
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 1252307060 | Gear shift shaft | |
| 3 | 1250307634 | Gear shift houring | |
| 7 | 630302090 | Spring washer | |
| 9 | 636010079 | Hexagon screw | |
| 10 | 732612005 | Breather | |
| 12 | 534300020 | Shaft seal | |
| 14 | 635303053 | Needle sleeve | |
| 15 | 730260330 | Gasket | |
| 16 | 634300302 | Shaft seal | |
| 17 | 634307367 | Rod wiper | |
| 20 | 1250307601 | Detent bolt | |
| 21 | 732040557 | Compression spring | |
| 25 | 1240307346 | Shaft | |
| 31 | 1240307480 | Cover | |
| 36 | 636015092 | Hexagon screw | |
| 62 | 730001156 | Washer | |
| 66 | 1280307194 | Stop bush | |
| 69 | 732062276 | Washer | |
| 71 | 730104083 | Washer | |
| 73 | 732040213 | Compression spring | |
| 74 | 732040237 | Compression spring | |
| 77 | 730001156 | Washer | |
| 86 | 1246307053 | Detent secment | |
| 90 | 631329072 | Slotted spring pin | |
| 91 | 631329145 | Slotted spring pin | |
| 92 | 1240307374 | Driver | |
| 96 | 1280307600 | Driver | |
| 104 | 1240307338 | Driver | |
| 105 | 1240307338 | Driver | |
| 106 | 1280307005 | Driver | |
| 109 | 735470007 | Roller | |
| 116 | 1280307433 | Gear shift shaft | |
| 120 | 1238307411 | Protecting cap | |
| 190 | 637011527 | Hexagon nut | |
| 191 | 109107013 | Ball joint | |
| 192 | 637006091 | Hexagon nut | |
| 195 | 736620076 | Draw bar | |
| 196 | 637006027 | Hexagon nut | |
| 197 | 109107014 | Ball joint | |
| 234 | 1238307518 | Fixing plate |
