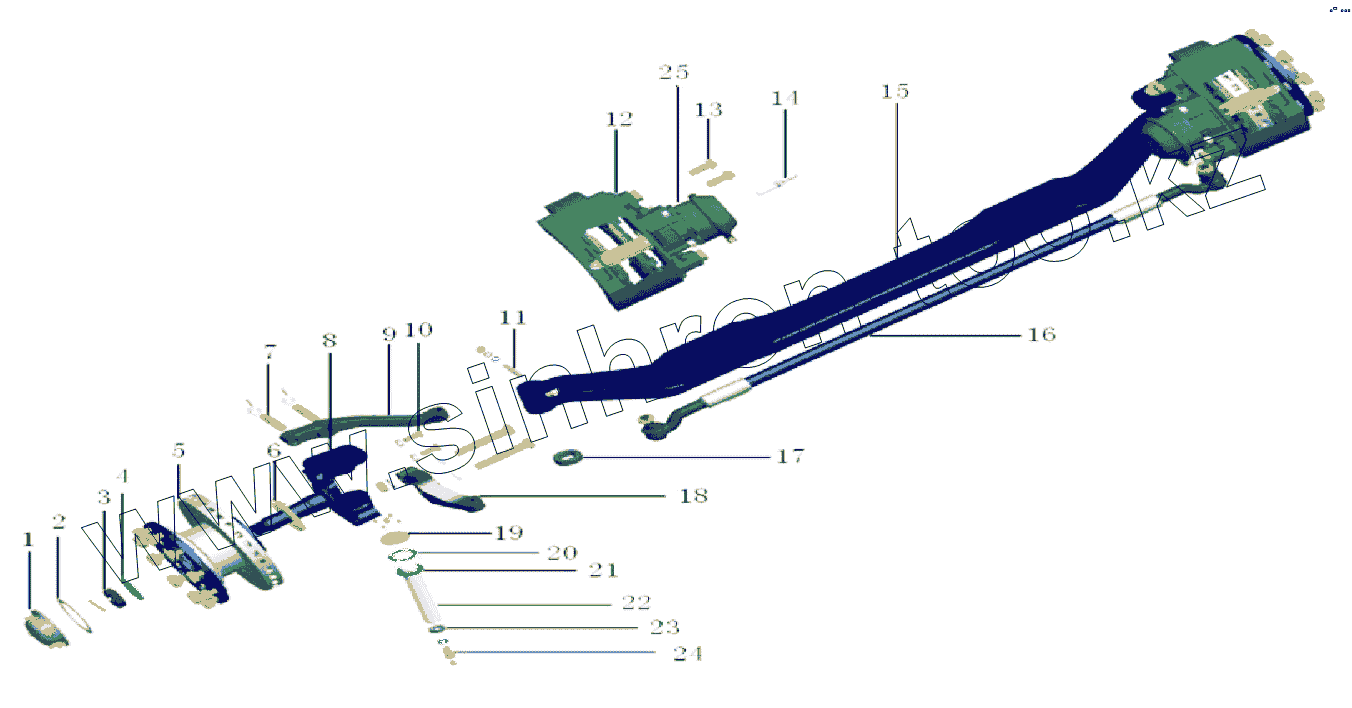

Каталог запасных частей к технике: Golden Dragon XML6845CN-3150236. FRONT AXLE SYSTEM
1
2
3
4
5
5
6
7
7
7
8
8
9
10
10
11
11
11
12
12
13
14
14
15
16
17
18
18
18
19
19
19
19
21
22
23
24
24
24
25
25
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 31WS03-03061 | Hub cup | |
| 2 | 31J-03062 | Sealing gasket | |
| 3 | 30J-01061 | Hex slotted thin nut | |
| 4 | 30J-01058 | Antifriction washer | |
| 5 | 3501065-FQ14Q | Front left hub & brake disc assy | |
| 5 | 3501066-FQ14Q | Front right hub & brake disc assy | |
| 6 | 31J-03075 | Front hub oil seal collar | |
| 7 | 30D5-01048 | Stud bolt | |
| 7 | 30N-01045 | Hex slotted nut | |
| 7 | Q500B0440 | Cotter pin | |
| 8 | 3001016-JQ01N | Right steering knuckle assy | |
| 8 | 3001015-JQ01N | Left steering knuckle assy | |
| 9 | 30JS50N-01044 | Drag rod arm | |
| 10 | 30D5-01032 | Steering limiting screw | |
| 10 | Q341B14 | Hexagonal nut | |
| 11 | Q1-30S11-01031 | Wedge lock pin | |
| 11 | Q341B12 | Hexagonal nut | |
| 11 | Q40312 | Spring washer | |
| 12 | 3501010-JQ01N | Left disc brake assy | |
| 12 | 3501015-JQ01N | Right disc brake assy | |
| 13 | Q150B0816 | Hexagonal bolt | |
| 14 | 35Z02-00031 | Clamping sleeve | |
| 14 | 35FS11N-00030 | Abs sensor | |
| 15 | 3001011-JQ03A | I beam | |
| 16 | 33JS09-03050 | Tie rod | |
| 17 | TZ-18-072038 | Thrust bearing | |
| 18 | 3001041-JQ17V | Left steering knuckle arm | |
| 18 | 3001042-JQ17V | Right steering knuckle arm | |
| 18 | 3001048-JQ09D | Stud bolt, | |
| 19 | Q40016 | Flat washer | |
| 19 | Q701B45 | Goose-neck grease nozzle | |
| 19 | 30D5-01039 | Bolt | |
| 19 | 30D5-01037 | Sealing gasket | |
| 21 | 30D5-01022-01029 | Adjust shim | |
| 22 | 3001021-JQ09G | Steering knuckle kingpin | |
| 23 | 30D5-01037 | Sealing gasket | |
| 24 | 30D5-01039 | Bolt | |
| 24 | Q40016 | Flat washer | |
| 24 | Q701B70 | Bending neck grease fitting | |
| 25 | 3519010-FQ05M | Left spring brake chamber assy | |
| 25 | 3519015-FQ05M | Right spring brake chamber assy |
