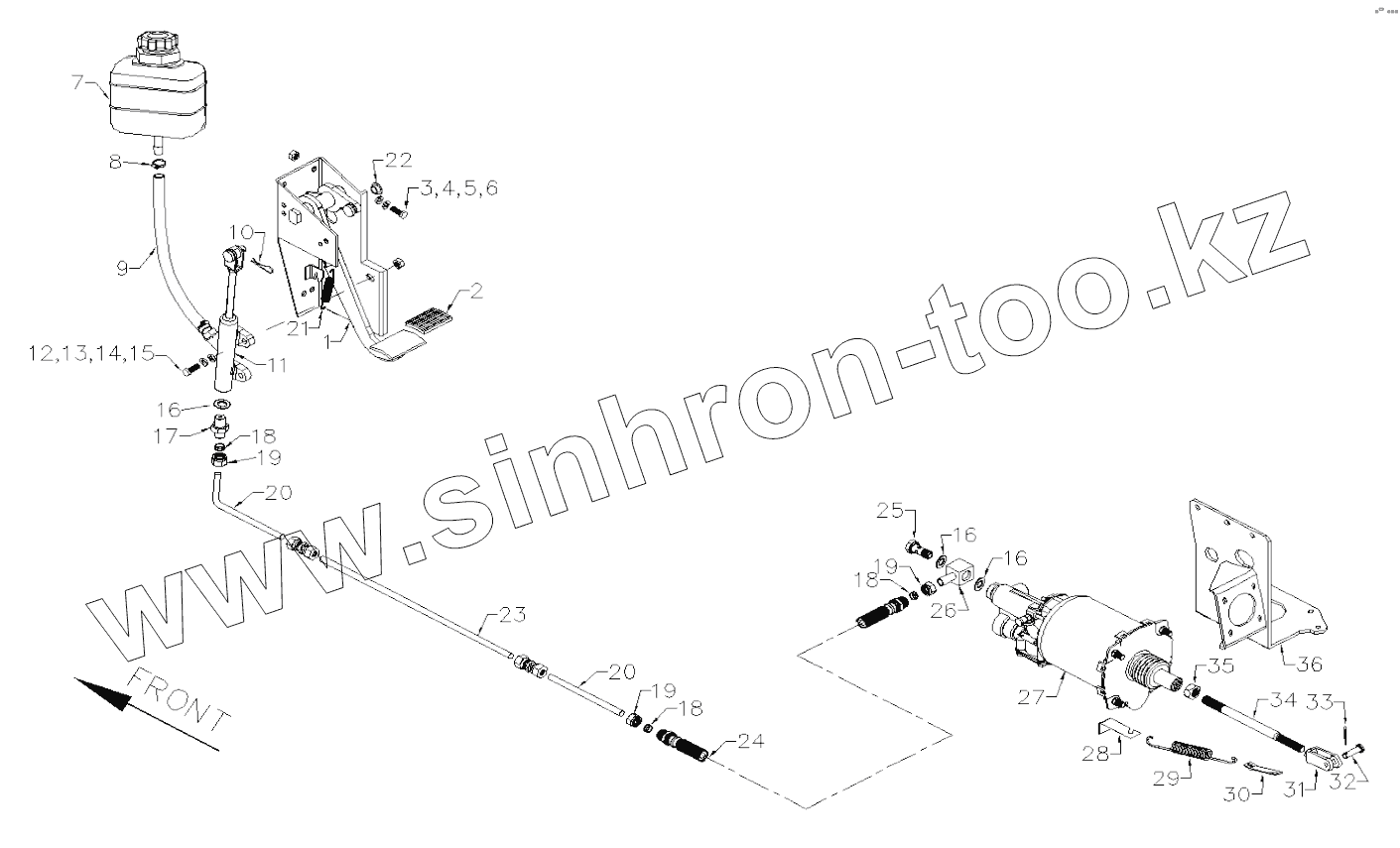

Каталог запасных частей к технике: Golden Dragon XML6845CN-3150236. CLUTCH OPERATION SYSTEM
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
16
16
17
18
18
18
19
19
19
20
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 6128J01-1602100-D | Clutch pedal body assembly | |
| 2 | 16J-02021 | Pedal rubber, clutch | |
| 3 | Q150B1050 | Hex bolt | |
| 4 | Q40110 | Plane washer | |
| 5 | Q40310 | Spring washer | |
| 6 | Q340B10 | Nut | |
| 7 | 1606HP-010-B | Oil can, clutch | |
| 8 | Q67218 | Clip, double steel wire | |
| 9 | FYNYJG10X4 | Tube, oil-resist, pressure resist | |
| 10 | Q5004040 | Cotter pin | |
| 11 | 1604TR-030 | Master cylinder, clutch | |
| 12 | Q150B1235 | Hex bolt | |
| 13 | Q40112 | Plane washer | |
| 14 | Q40312 | Spring washer | |
| 15 | Q340B12 | Nut | |
| 16 | JB982-14 | Sealing washer | |
| 17 | 6115E11-1607101 | Connector | |
| 18 | GB3764-8 | Clip | |
| 19 | GB3759-G8 | Nut for pipe connector, bite- type | |
| 20 | TG8X1 | Copper Tube | |
| 21 | 6128J01-1602002 | Spring | |
| 22 | GFM-1012-06 | Bushing | |
| 23 | SJG8-3600T | Double-layer welded pipe | |
| 24 | XML1607110C5F0 | Assistant hose assy, clutch | |
| 25 | Q818-M12X1.5 | Hinge bolt | |
| 26 | 6122A03-1607020 | Oil connector body, slave cylinder, clutch | |
| 27 | 9700514600 | Clutch booster assembly | |
| 28 | 6857X06-1604011 | Tension spring base | |
| 29 | 6100A1-1602002 | Spring | |
| 30 | XML1603005K3F0 | Tension spring hook | |
| 31 | 6101M11-1604221 | Screw fork | |
| 32 | 6100A1-1603004 | Pin shaft | |
| 33 | Q5003236 | Cotter pin | |
| 34 | 6103X01-1604201 | Tappet, slave cylinder | |
| 35 | 6103X01-1604202 | Nut | |
| 36 | 6125Y18-1604020 | Bracket, clutch Booster assy |
