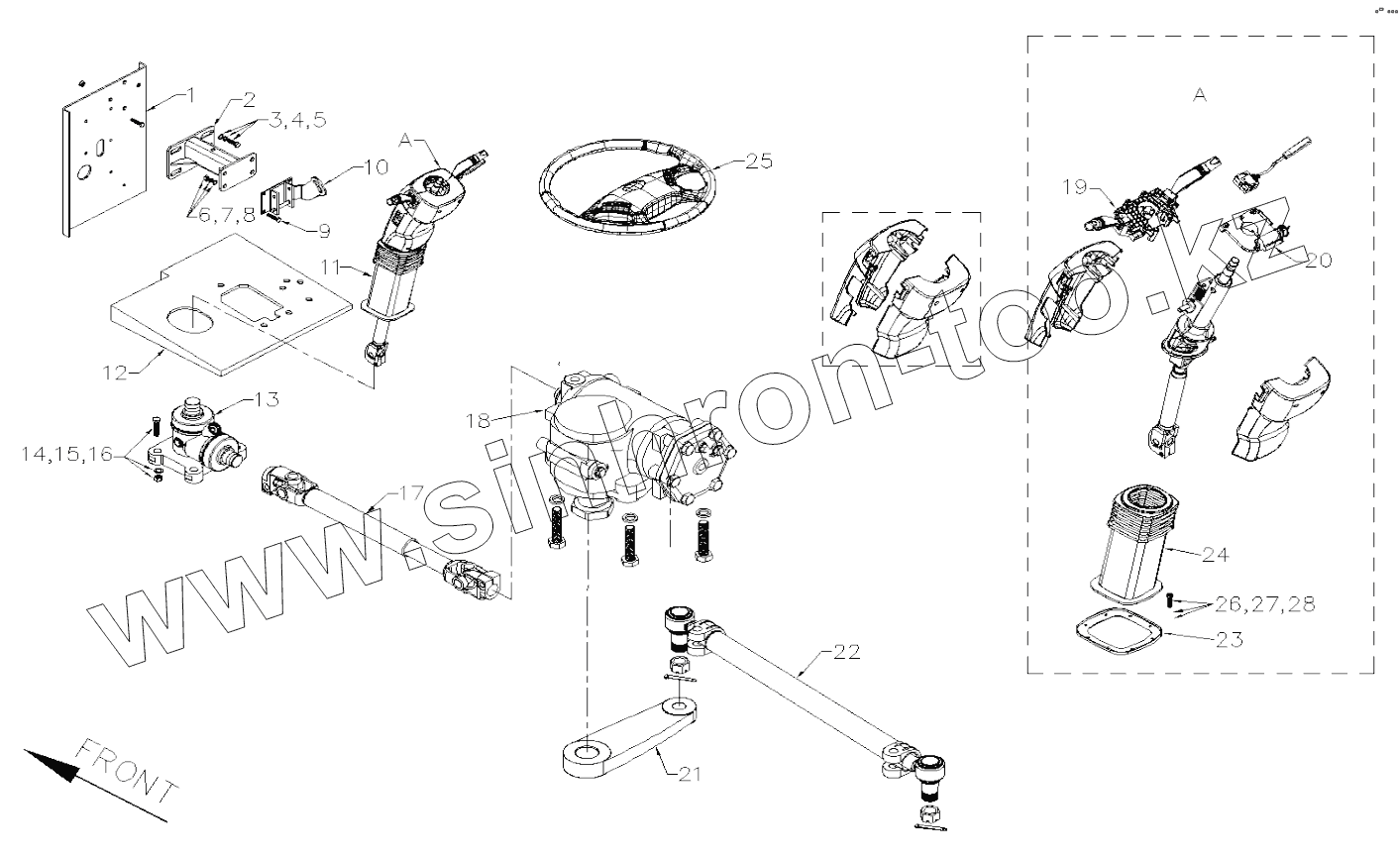

Каталог запасных частей к технике: Golden Dragon XML6139JR-3141082. STEERING SYSTEM
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 6127K12-3402012-MC | Front vertical plate | |
| 2 | 6108K01-3402501 | Mounting bracket, column | |
| 3 | Q150B1235 | Hex bolt | |
| 4 | Q40112 | Plane washer | |
| 5 | Q40312 | Spring washer | |
| 6 | Q40110 | Plane washer | |
| 7 | Q40310 | Spring washer | |
| 8 | Q340B10 | Nut | |
| 9 | Q150B1030 | Hex bolt | |
| 10 | 3402-303-B5F-B1 | Adjusting bracket | |
| 11 | 6155E02-3402100-CY01 | Steering column assembly | |
| 12 | 6116G82-3402024 | Front floor | |
| 13 | 7860955910 | Angle transmission | |
| 14 | Q151B2035TF2 | Bolt | |
| 15 | Q40120T16F9 | Plane washer | |
| 16 | Q341B12T13F2 | Nut | |
| 17 | 6125G10-3401120 | Steering drive shaft assembly | |
| 18 | 8098955707 | Power Steering Gear | |
| 19 | 6126A11-3774100 | Combination switch assembly | |
| 20 | 6937A16-3704100 | Ignition switch assy | |
| 21 | 6139X04-3401111 | Pitman arm | |
| 22 | 6139X04-3401010 | Drag-link assembly | |
| 23 | 3402-302-B5F | Compression ring, dust boot | |
| 24 | 3402-301-B5F | Dust boot, rubber | |
| 25 | HFL1-6049-0000 | Steering wheel | |
| 26 | Q2714832 | Self-tapping screw | |
| 27 | Q40108 | Washer | |
| 28 | Q40308 | Spring washer |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
