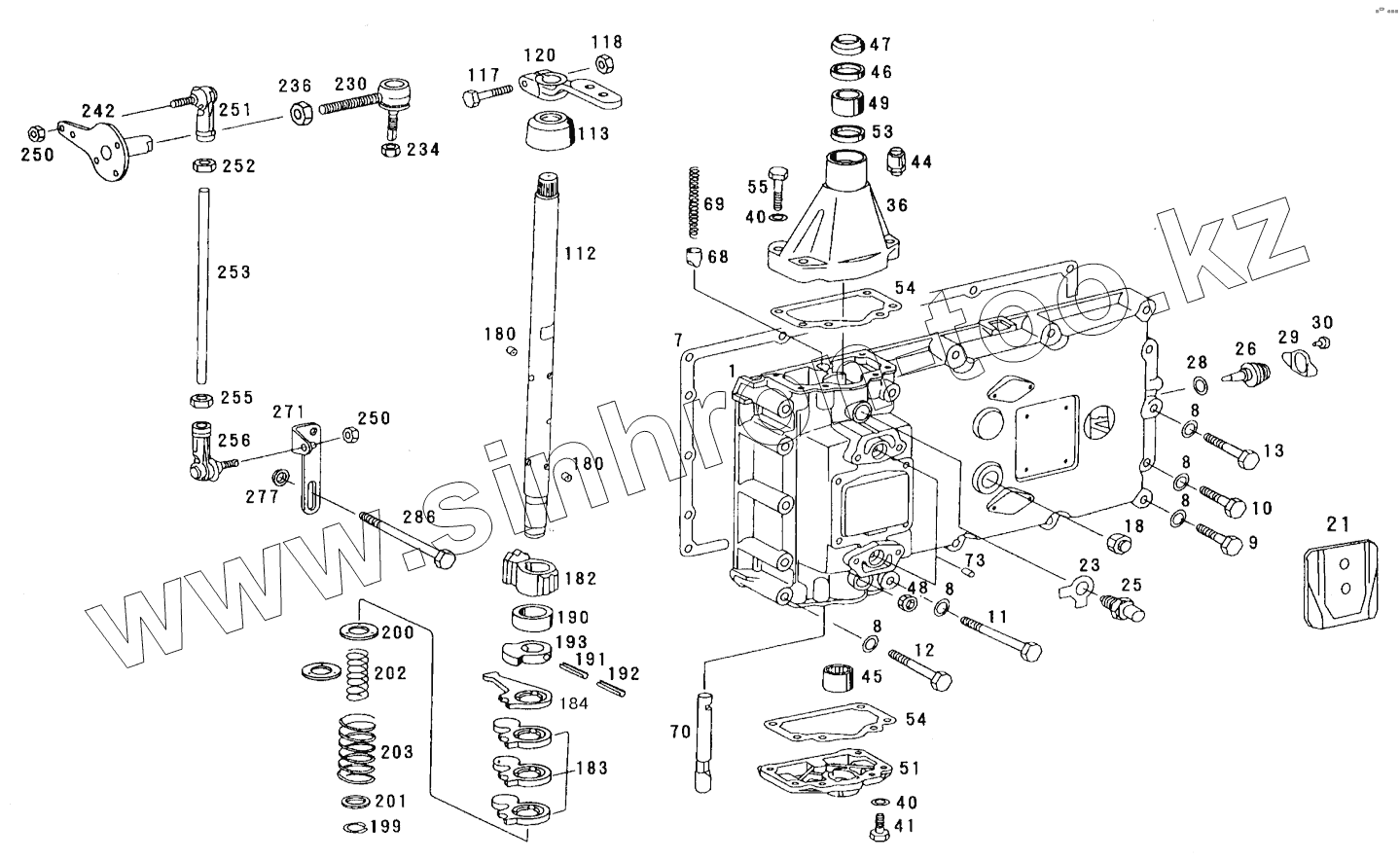

Каталог запасных частей к технике: Golden Dragon XML6127CNG-3141495. UPPER COVER & SHIFTING SHAFT
1
7
8
8
8
8
8
9
10
11
12
13
18
21
23
25
26
28
29
30
40
40
41
44
45
46
47
48
51
54
54
68
69
70
73
113
180
180
182
183
184
190
191
192
193
199
200
201
202
203
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 1156307016 | Gearbox Cover | |
| 7 | 1156306011 | Gasket | |
| 8 | 630302091 | Spring washer | |
| 9 | 636010172 | Bolt | |
| 10 | 636010174 | Bolt | |
| 11 | 636010200 | Hexagon screw | |
| 12 | 636010190 | Hexagon screw | |
| 13 | 630010179 | Bolt | |
| 18 | 736303005 | ScrewPlug | |
| 21 | 730365064 | Type Plate | |
| 23 | 630603010 | Locking platte | |
| 25 | 1250207252S | Reverse Plunger | |
| 26 | 1156307004 | Reverse Sensor | |
| 28 | 501309183 | Gasket | |
| 29 | 1240307441 | Flange | |
| 30 | 636015020 | Hexagon screw | |
| 37 | 6029205002 | Hexagon Screw | |
| 38 | 1250307634 | Gear shift houring | |
| 40 | 630302090 | Spring washer | |
| 41 | 636015092 | Hexagon screw | |
| 44 | 732612005 | Breather | |
| 45 | 635300053 | Needle Bearing | |
| 46 | 634300302 | Shaft seal | |
| 47 | 634307367 | Rod wiper | |
| 48 | 636301041 | Screw plug | |
| 51 | 1240307480 | Cover | |
| 54 | 1252307060 | Gear shift shaft | |
| 68 | 1250307601 | Detent bolt | |
| 69 | 732040554 | Compression Spring | |
| 70 | 1240307346 | Shaft | |
| 73 | 730361073 | Sealing cap | |
| 81 | 730150160 | Shim | |
| 81 | 730150160 | Shim | |
| 82 | 501307450 | Neutral Sensor | |
| 83 | 1268307092 | Neutral sensor pad | |
| 85 | 1268307090 | Pin | |
| 86 | 1268307091 | Gasket | |
| 87 | 636015090 | Bolt | |
| 111 | 1240307433 | Gear Shift Shaft | |
| 113 | 1238307411 | Protecting cap | |
| 180 | 735470007 | Roller | |
| 182 | 1156307017 | Detent Secment | |
| 183 | 1156307012 | Sliding Pad | |
| 184 | 1240307338 | Driver | |
| 185 | 1268307155 | Sliding Pad | |
| 190 | 730061092 | Stop Bush | |
| 191 | 631329072 | Slotted spring pin | |
| 192 | 631329145 | Slotted spring pin | |
| 193 | 1240307374 | Driver | |
| 199 | 638532138 | V-Ring | |
| 200 | 730104083 | Washer | |
| 201 | 730001156 | Washer | |
| 202 | 732040213 | Compression spring | |
| 203 | 732040630 | Compression Spring |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
