Каталог запасных частей к технике: Golden Dragon XML6127CNG-3141495. TB24-511074110-2 ELECTRICAL APPARATUS

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано Golden Dragon Hyundai Ikarus Karosa King Long Neoplan Yutong ZF АМАЗ Богдан ЗИЛ КАВЗ Камский автозавод ЛАЗ ЛЗГМП ЛиАЗ Нефтекамский автозавод ПАЗ УралАЗ

Модель Не выбрано XML6105CN-7150227 (2015) XML6125CN-3150244 (2015) XML6127CNG-3141495 (2015) XML6139JR-3141082 (2015) XML6845CN-3150236 (2015)

Схема > Не выбрано FRONT PANEL 6127X01-3741100-11 WIPER ASSEMBLY SIDE PANEL SIDE COMPARTMENT BATTERY COMPARTMENT PASSENGER DOOR INSTALLATION ASSEMBLY REAR PANEL DRIVER COMPARTMENT ELECTRICAL APPARATUS, FRONT INSTRUMENTS PANEL 6999A01-3700100-RUS ELECTRIC BOX TOP COVER & SIDE PANEL ARMREST & SEAT FLOOR COVERING & REPAIR HATCH STEERING SYSTEM STEERING OPERATION BOOSTING PIPELINE 11R105-3425120 STEERING OIL CAN TRANSMISSION OPERATING MECHANISM CLUTCH ASSEMBLY CLUTCH OPERATION SYSTEM SCHEMATIC DIAGRAM, BRAKE ARRANGEMENT DIAGRAM, BRAKE CONTROL AND FRONT BRAKE AIR CYLINDER AND 4-WAY PROTECTIVE VALVE AIR SUPPLY REAR BRAKE AND PARKING BRAKE ANTI-LOCK BRAKING SYSTEM (ABS) FRONT AXLE ASSEMBLY FRONT AXLE SYSTEM WHEEL HUB WITH BRAKE DISC ASSEMBLY REAR AXLE ASSEMBLY REAR AXLE ASSY FINAL DRIVE WHEEL HUB WITH BRAKE DISC ASSEMBLY FRONT SUSPENSION ASSEMBLY JR-65F-12-40 FRONT AIR SUSPENSION ASSY REAR SUSPENSION ASSEMBLY JR-130R-12-29 REAR AIR SUSPENSION ASSY AIR LEVELING WHEEL INSTALLTION DRIVE SHAFT INSTALLATION 6106G5-2201010 DRIVE SHAFT GEARBOX ASSEMBLY S6-160-158 GEARBOX ASSEMBLY HOUSING, TRANSMISSION HOUSING, CLUTCH INPUT SHAFT, COUNTERSHAFT & REVERSE GEAR SHAFT ASSY SHAFT, OUTPUT REAR COVER GEAR SHIFT MECHANISM UPPER COVER & SHIFTING SHAFT ENGINE& AROUND PARTS AVI2120R3071A GENERATOR ENGINE MOUNTING SYSTEM REDUCER INSTALLATION TB24-511074110-1 RETARDER DISASSEMBLY TB24-511074110-2 ELECTRICAL APPARATUS CHASSIS LUBRICATION SYSTEM KFD-A CONTRAL LUBRICATION DEVICE CHASSIS ACCESSORIES GAS SYSTEM THROTTLE CONTROL MECHANISM AIR INTAKE SYSTEM AH24196 AIR FILTER EXHAUST SYSTEM COOLING SYSTEM 6103A01-1311010-JS EXPENSION WATER TANK 6125Y10-1025010-JZ INTERMEDIATE PULLEY ASSY, ADJUSTING LEVER AIR CONDITIONING SYSTEM CONDENSER EVAPORATOR HEATING PIPELINE T350 THE HEATER ASSEMBLY CS-14H-30 DEFROSTER NAME PLATE, COMPLETE SET LOCK, COMPLETE SET TOOLS SUPPLIED WITH THE BUS XML-3900 TOOLS SUPPLIED WITH THE BUS HARNESS, COMPLETE SET

2

3

4

5

6

7

8

9

10

11

12

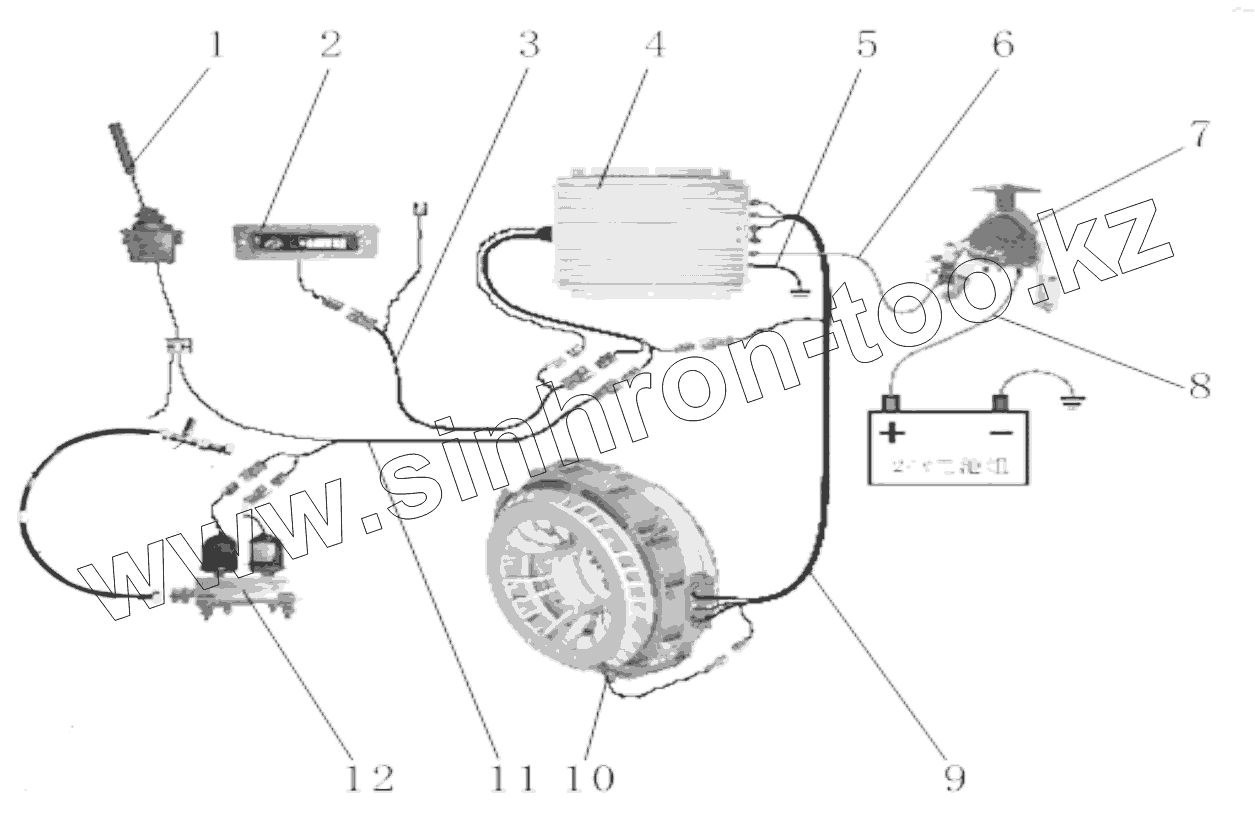

Позиция на иллюстрации	Заводской номер детали		Название детали
2	411100001		Pilot lamp
3	406813601		The harness of pilot lamp
4	404240011		Drive controller
5	405701006		The harness of bond strap
6	405701010		Access controller harness
7	102010058		Retarder power switch
8	405701015		Harness of battery
9	405502701		Driven sensor harness
10	410010001		Speed sensor
11	406314004		Hand dial switch brake lines
12	409021801		Pressure switch

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
