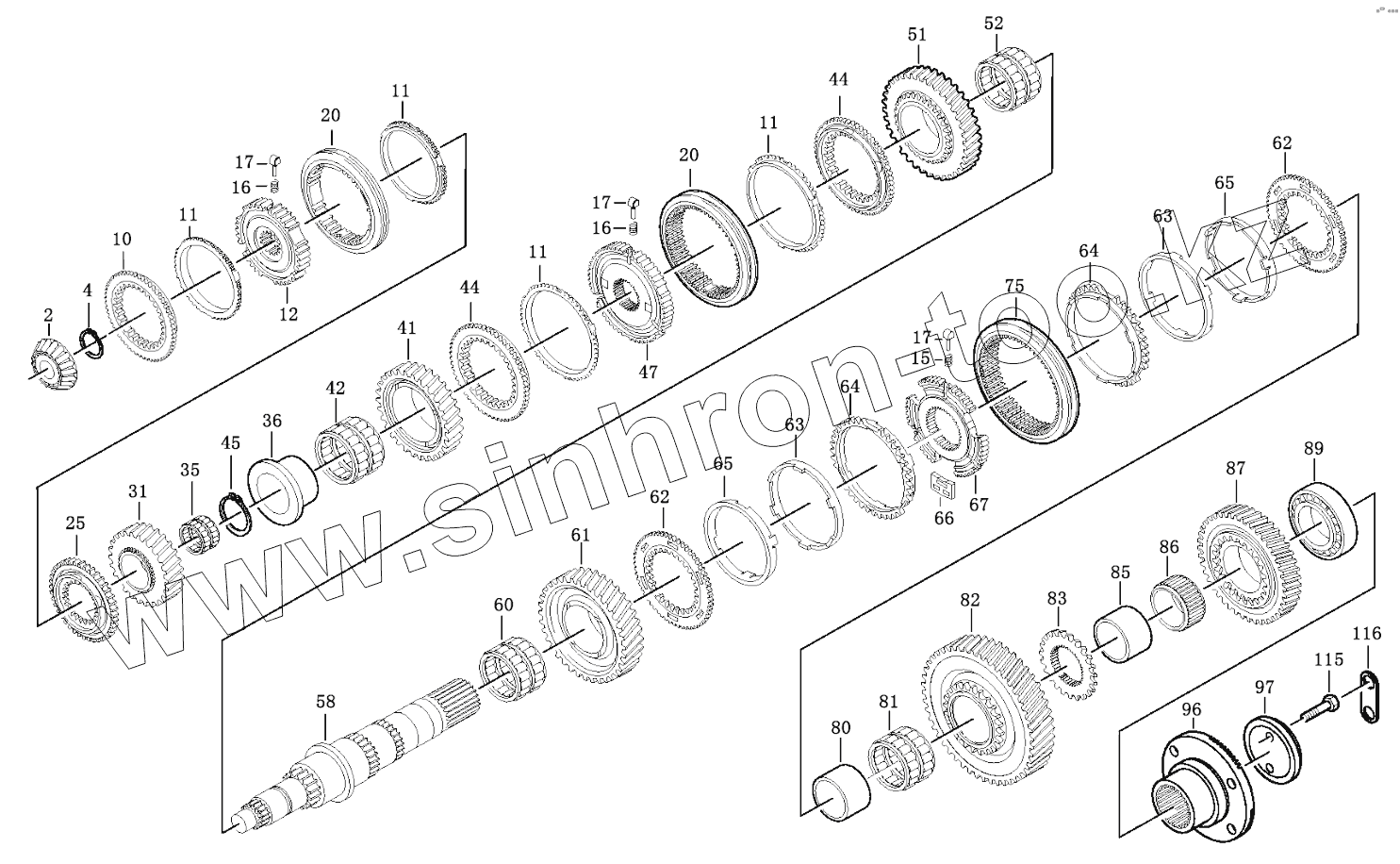

Каталог запасных частей к технике: Golden Dragon XML6127CNG-3141495. SHAFT, OUTPUT
2
4
4
4
4
4
4
4
10
11
11
11
11
12
16
16
17
17
17
20
20
25
31
35
36
41
42
44
44
45
45
45
45
45
45
47
51
52
58
60
61
62
62
63
63
64
64
65
65
66
67
75
80
81
82
83
85
86
87
96
97
115
116
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 2 | 33208 | Tapered roller bearing | |
| 4 | 116304009 | Shim | |
| 4 | 116304015 | Shim | |
| 4 | 116304014 | Shim | |
| 4 | 116304013 | Shim | |
| 4 | 116304011 | Shim | |
| 4 | 116304010 | Shim | |
| 4 | 116304012 | Shim | |
| 10 | 115304057 | 5th.clutch body | |
| 11 | 1297304402 | Syochrowizer ring | |
| 12 | 1156304043 | Seat, synchronous, 5th and 6th gear | |
| 16 | 1311304021 | Comperssion spring | |
| 17 | 1311304020 | Plunger | |
| 20 | 1312302057 | Sliding sleeve | |
| 25 | 1156304039 | 6th.clutch body | |
| 31 | 1156304032 | 6th gear | |
| 35 | K/65x73x22.8 | 6th needle cage | |
| 36 | 1156304037 | Bush | |
| 41 | 1156304028 | Gear | |
| 42 | K/85x93x42.8 | Needle cage | |
| 44 | 1312304027 | Clutch body | |
| 45 | 116204005S | Shim | |
| 45 | 116304020 | Shim | |
| 45 | 116304024 | Shim | |
| 45 | 116304022 | Shim | |
| 45 | 116304023 | Shim | |
| 45 | 116304021 | Shim | |
| 47 | 1312304052 | 3/4GSynchronzer body | |
| 51 | 1156304024 | 3GGear | |
| 52 | K/92x100x49.3 | Needle cage | |
| 58 | 11663040053 | Main shaft | |
| 60 | K/92x100x51.3 | Needle cage | |
| 61 | 1156304021 | 2GGear | |
| 62 | 1156304008 | Ring gear | |
| 63 | 109304042 | Syochrowizer ring | |
| 64 | 1268304525 | Syochrowizer ring | |
| 65 | 1268304424 | Clutch body | |
| 66 | 1312304159 | Connection part | |
| 67 | 1312304158 | Synchronzer body | |
| 75 | 1156304007 | Sliding sleeve | |
| 80 | 1156304034 | 1G.needle cage | |
| 81 | K/92x100x54.6 | 1G.needle cage | |
| 82 | 1156304020 | 1th spur gear | |
| 83 | 1156304004 | Revorse gear clutcu body | |
| 85 | 730160344 | Bush | |
| 86 | 735320154 | Needle cace | |
| 87 | 1156304005 | Spur gear | |
| 90 | 30314 | Roller bearing | |
| 92 | 1269328096 | Oil baffle plate | |
| 95 | 1096304094 | Speedometer worm | |
| 96 | 1096308012 | Output flange | |
| 97 | 1259303004 | Washer | |
| 115 | 636016012 | Hexagon screw | |
| 116 | 1096304050 | Lockking plate |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
