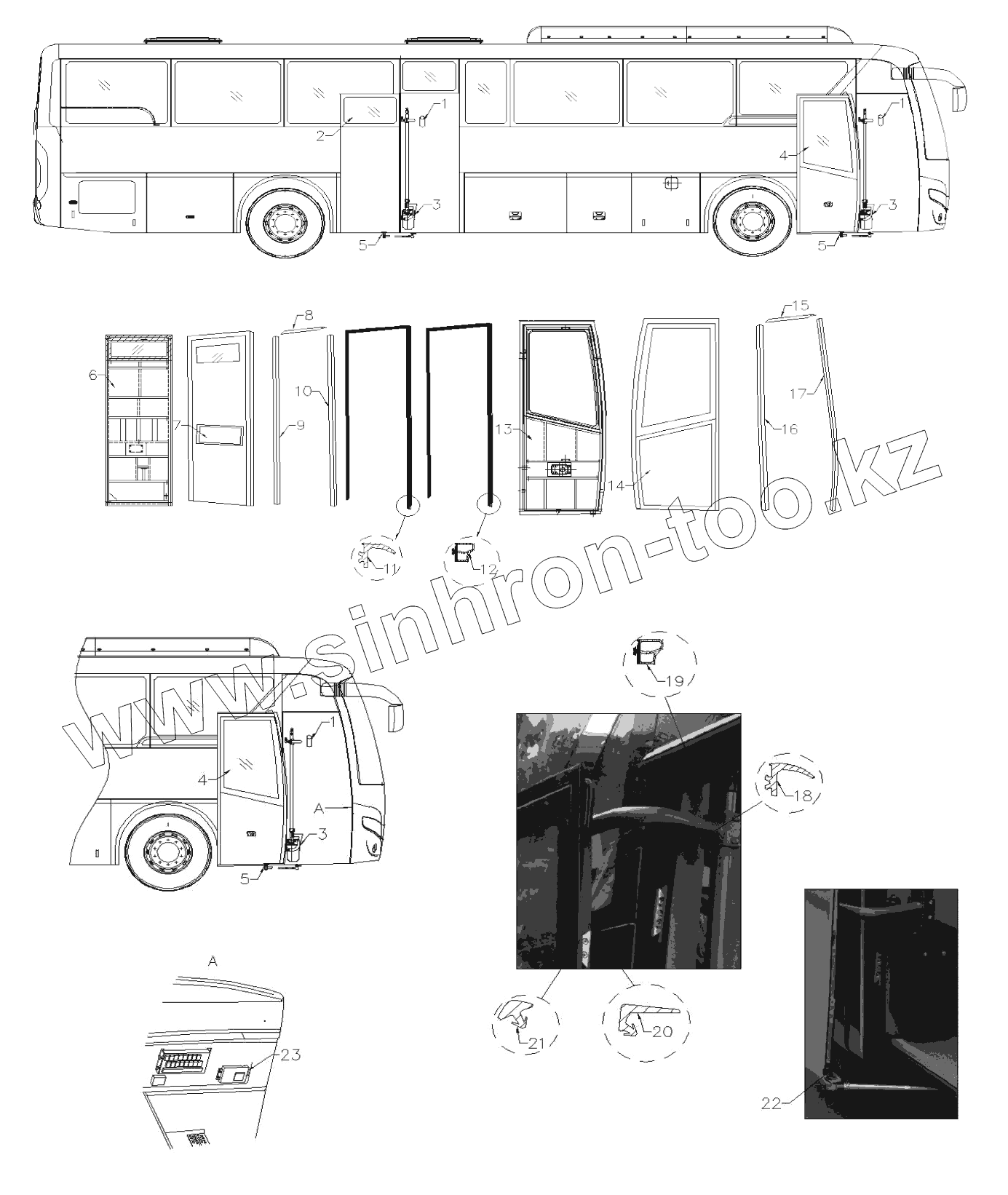

Каталог запасных частей к технике: Golden Dragon XML6127CNG-3141495. PASSENGER DOOR INSTALLATION ASSEMBLY
1
1
1
2
3
3
3
4
4
5
5
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | XML6108101E1B0 | Trim cover, bracket, door | |
| 2 | 6127X25-6200031-EKB7 | Glass, passenger door | |
| 3 | 6126A13-6111000 | Door pump assy,front passage door | |
| 4 | 6127K31-6100031-EKB7 | Glass, front passenger door | |
| 5 | 6100-6101023 | Bracket, stabilizer | |
| 6 | 6127X25-6201200-EKB7 | Middle passenger door panel assembly | |
| 7 | 6127X21-6200037-E357 | Trim panel, middle passenger door | |
| 8 | 6127K13-6200034 | Aluminium profile, upper pillar, middle door frame | |
| 9 | 6127K13-6200033 | Aluminum profile, rear column, middle door | |
| 10 | 6127K13-6200032 | Aluminum profile, front column,middle door | |
| 11 | 6127K13-6200035 | Rubber strip, middle door frame | |
| 12 | 6127K13-6200036 | Sealing rubber strip | |
| 13 | 6127K31-6100200-S | Front passenger door panel assembly | |
| 14 | 6127K31-6100037 | Trim plate, passenger door | |
| 15 | 6127K31-6100034 | Aluminum profile, upper cross beam, passenger door | |
| 16 | 6127K31-6100033 | Aluminum profile, rear pillar, passenger door frame | |
| 17 | 6127K31-6100032 | Aluminum profile, front pillar, passenger door frame | |
| 18 | 6127K32-6100035 | Rubber strip, passenger door frame | |
| 19 | 6127K32-6100036 | Rubber strip, frame, passenger door | |
| 20 | JTBB426 | Rubber strip | |
| 21 | JTBB427 | Rubber strip | |
| 22 | JTBB458-800 | Sealing strip | |
| 23 | 6100A1-3746130HM-2 | Remote controller, door pump |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
