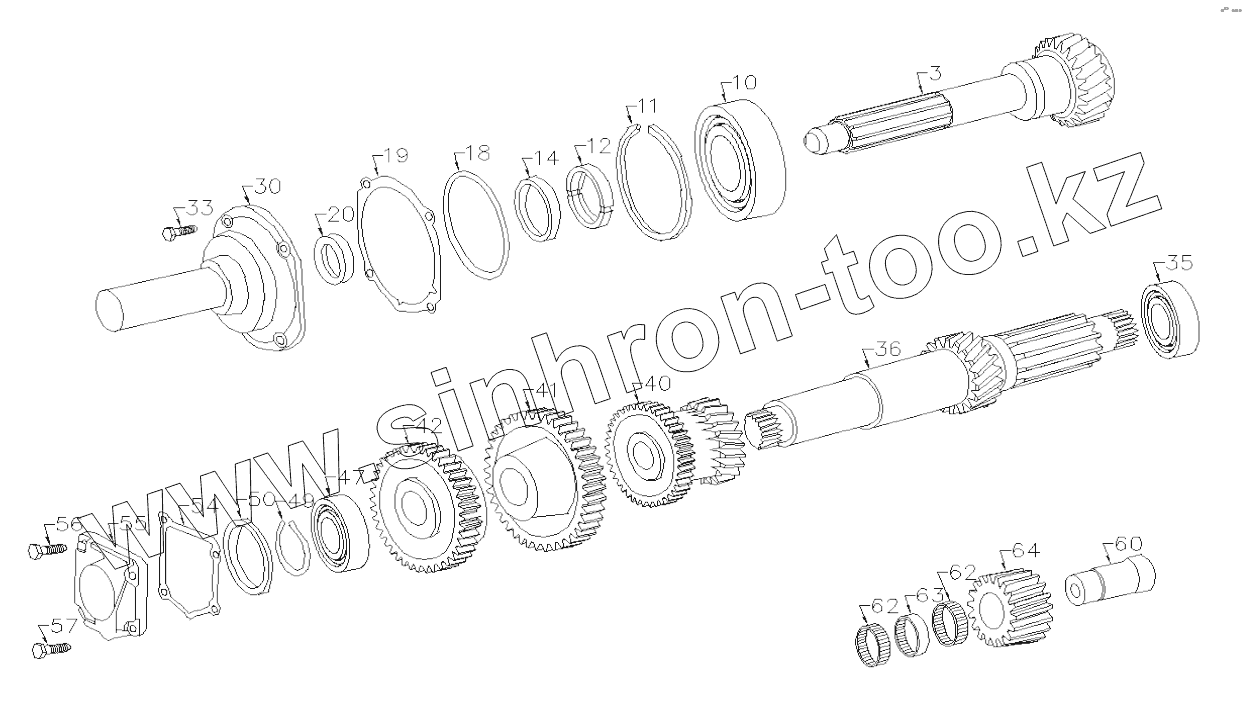

Каталог запасных частей к технике: Golden Dragon XML6127CNG-3141495. INPUT SHAFT, COUNTERSHAFT & REVERSE GEAR SHAFT ASSY

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
3
10
11
18
18
18
18
18
18
18
18
18
18
18
18
18
18
18
18
18
18
18
18
18
19
20
30
33
35
36
40
47
49
49
49
49
49
49
49
49
49
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
54
55
56
57
60
62
62
63
64
Позиция на иллюстрации Заводской номер детали Название детали
3 1166302003 Input shaft
4 1310202001 Oil collecting ring assembly
6 116302004 Retaining ring
10 30314 Roller bearing
11 1156302029 Oil seal ring
18 1156302052 Adjusting shim
18 1156302038 Adjusting shim
18 1156302035 Adjusting shim
18 1156202003B Shim
18 1156302054 Adjusting shim
18 1156302053 Adjusting shim
18 1156302051 Adjusting shim
18 1156302050 Adjusting shim
18 1156302049 Adjusting shim
18 1156302048 Adjusting shim
18 1156302046 Adjusting shim
18 1156302045 Adjusting shim
18 1156302044 Adjusting shim
18 1156302043 Adjusting shim
18 1156302036 Adjusting shim
18 1156302042 Adjusting shim
18 1156302041 Adjusting shim
18 1156302040 Adjusting shim
18 1156302039 Adjusting shim
18 1156302037 Adjusting shim
18 1156302047 Adjusting shim
19 1156302061 Gasket
20 734310111 Shaft seal
30 1166302013 front cover
31 1166302014 Distributor
33 636015120 Hexagon screw
35 635374019 Roller bearing
36 115303030 Layshaft
40 115303005 Double gear 3rd/4th speed
43 115303009 Gear 6th speed
44 115303013 Constant gear
47 735370011 Roller bearing
49 630501116 Retaining ring
49 630501148 Retaining ring
49 630501064 Retaining ring
49 630501118 Retaining ring
49 630501114 Retaining ring
49 630501112 Retaining ring
49 630531065 Retaining ring
49 0769144001S Retaining ring
49 630501147 Retaining ring
50 730103115 Shim
50 730103114 Shim
50 730102098 Shim
50 730102099 Shim
50 730102100 Shim
50 730102101 Shim
50 730102102 Shim
50 730102103 Shim
50 730102104 Shim
50 730102105 Shim
50 730102106 Shim
50 730102060 Shim
50 730102061 Shim
50 730102062 Shim
50 730102063 Shim
50 730102064 Shim
50 730102065 Shim
50 730103124 Shim
50 730103117 Shim
50 0769140045S Shim
50 730102066 Shim
50 730103123 Shim
50 730103122 Shim
50 730103121 Shim
50 730103120 Shim
50 730102067 Shim
50 730102068 Shim
50 730102069 Shim
50 730102071 Shim
50 730103116 Shim
50 730103118 Shim
50 730103119 Shim
50 730102075 Shim
50 730102074 Shim
50 730102073 Shim
50 730102072 Shim
50 730102070 Shim
54 1156302061 Gasket
55 1268303066 Cover
56 636015114 Bolt
57 636015124 Bolt
60 1250305003 Reverse idler shaft
62 735320492 Needle cage
63 1250305006 Bush
64 115305002 Revese idler gear
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
